ECS B85H3-M7 User Manual

B85H3-M7 USER MANUAL
31
Chapter 3
The Advanced menu items allow you to change the settings for the CPU and other
system.
Advanced Menu

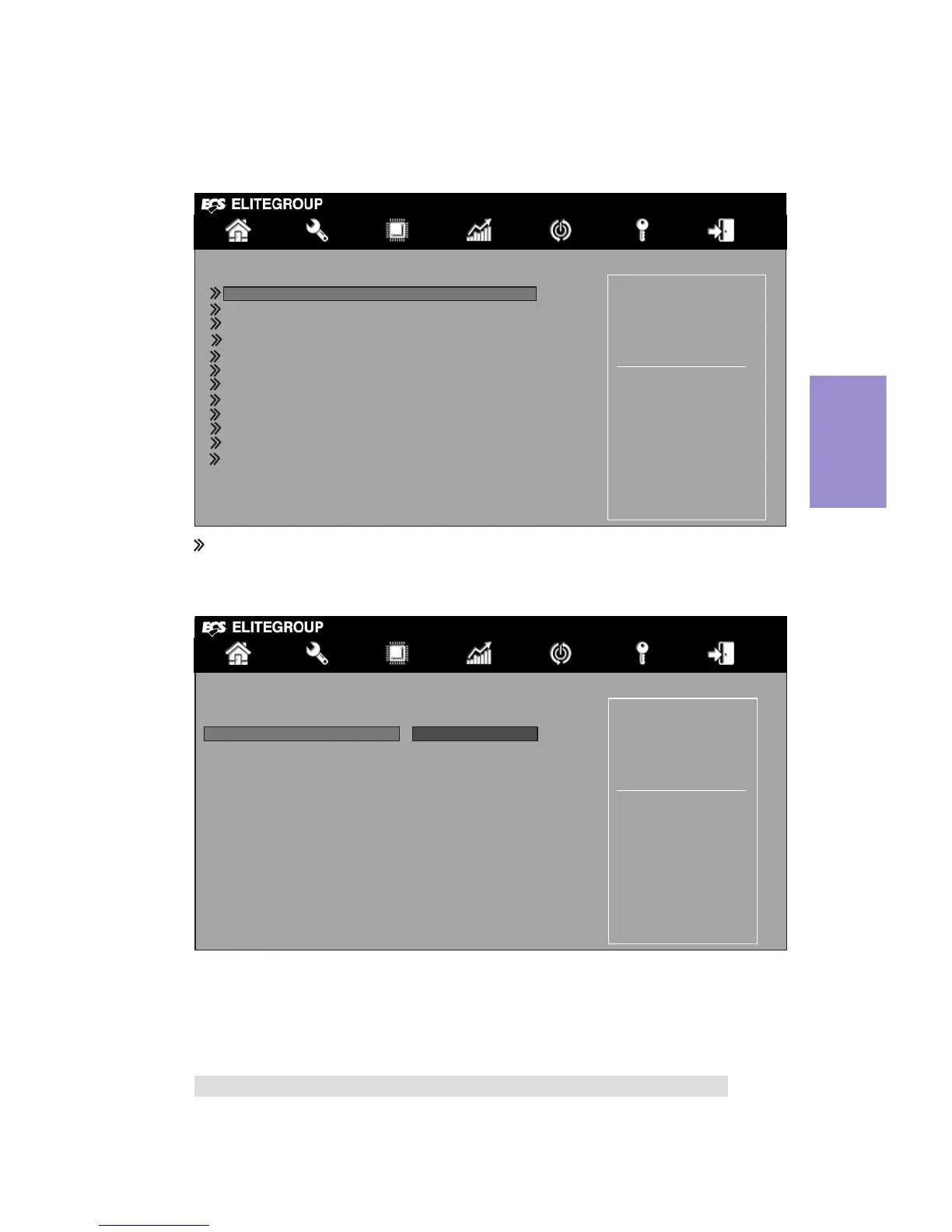

LAN Configuration
The item in the menu shows the LAN-related information that the BIOS
automatically detects.
Onboard LAN Controller (Enabled)
Use this item to enable or disable Onboard LAN controller.
Press <Esc> to return to the Advanced Menu page.
LAN Configuration Param-
eters
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
LAN Configuration
PC Health Status
Power Management Setup
PCI Express Configuration
ACPI Settings
CPU Configuration
SATA Configuration
Intel(R) Rapid Start Technology
Intel(R) Smart Connect Technology
Intel ME BIOS Extension Configuration
Enabled/Disabled Onboard
LAN Controller
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
LAN Configuration
Onboard LAN Controller Enabled
USB Configuration
Super IO Configuration

ECS B85H3-M7 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1666 MHz
System bus rate	5 GT/s
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
Supported storage drive interfaces	SATA II, SATA III
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC662
Certification	CE/FCC \\r ErP/EuP \\r WHQL \\r WHCK
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® B85
Audio output channels	5.1 channels
Motherboard form factor	mini ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
BIOS type	AMI
ACPI version	5.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	180 mm
Width	225 mm
