B85H3-M7 USER MANUAL
41
Chapter 3
Super IO Configuration
Use this item to show the information of the Super IO Configuration.
Super IO Chip (IT8728)
This item shows the information of the super IO chip.
Serial Port 0 Configuration

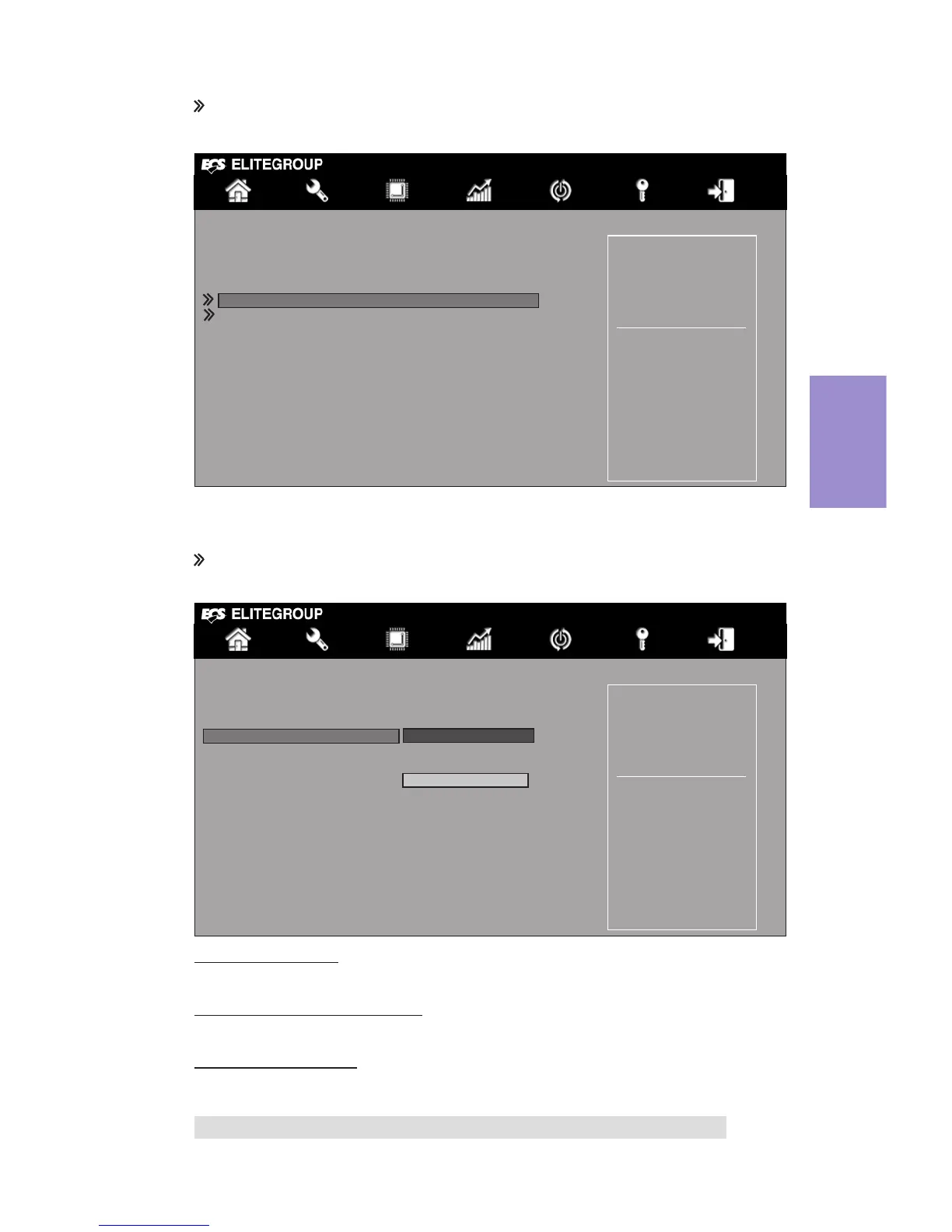

Scroll to this item and press <Enter> to view the following screen:
Press <Esc> to return to the Super IO Configuration page.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
