ECS G31T-M User Manual

20
Installing the Motherboard

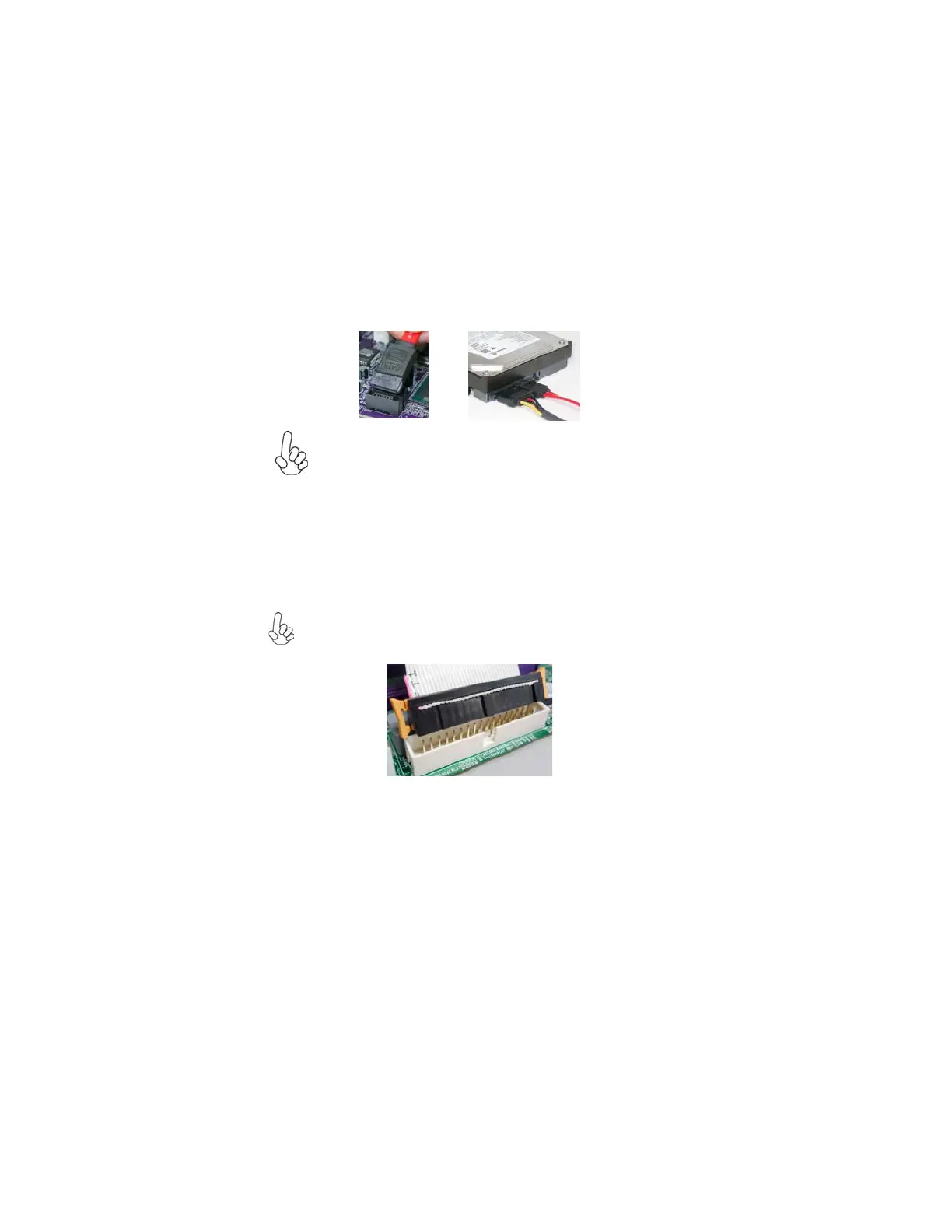

Refer to the illustration below for proper installation:
This motherboard does not support the “Hot-Plug” function.
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
Installing a Floppy Diskette Drive
You must orient the cable connector so that the pin 1 (color) edge of
the cable corresponds to the pin 1 of the I/O port connector.
FDD: Floppy Disk Connector
Connect the single end of the floppy connector to the onboard floppy connector
firstly, and then connect the remaining plugs on the other end to the floppy drives
correspondingly.

ECS G31T-M Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
S/PDIF out connector	Yes
Graphics card	GMA 3100
Maximum graphics card memory	384 MB
LAN controller	Realtek RTL8101E
Networking features	Fast Ethernet
ACPI version	1.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	200 mm
Width	244 mm
