ECS G31T-M7 User Manual

18
Installing the Motherboard

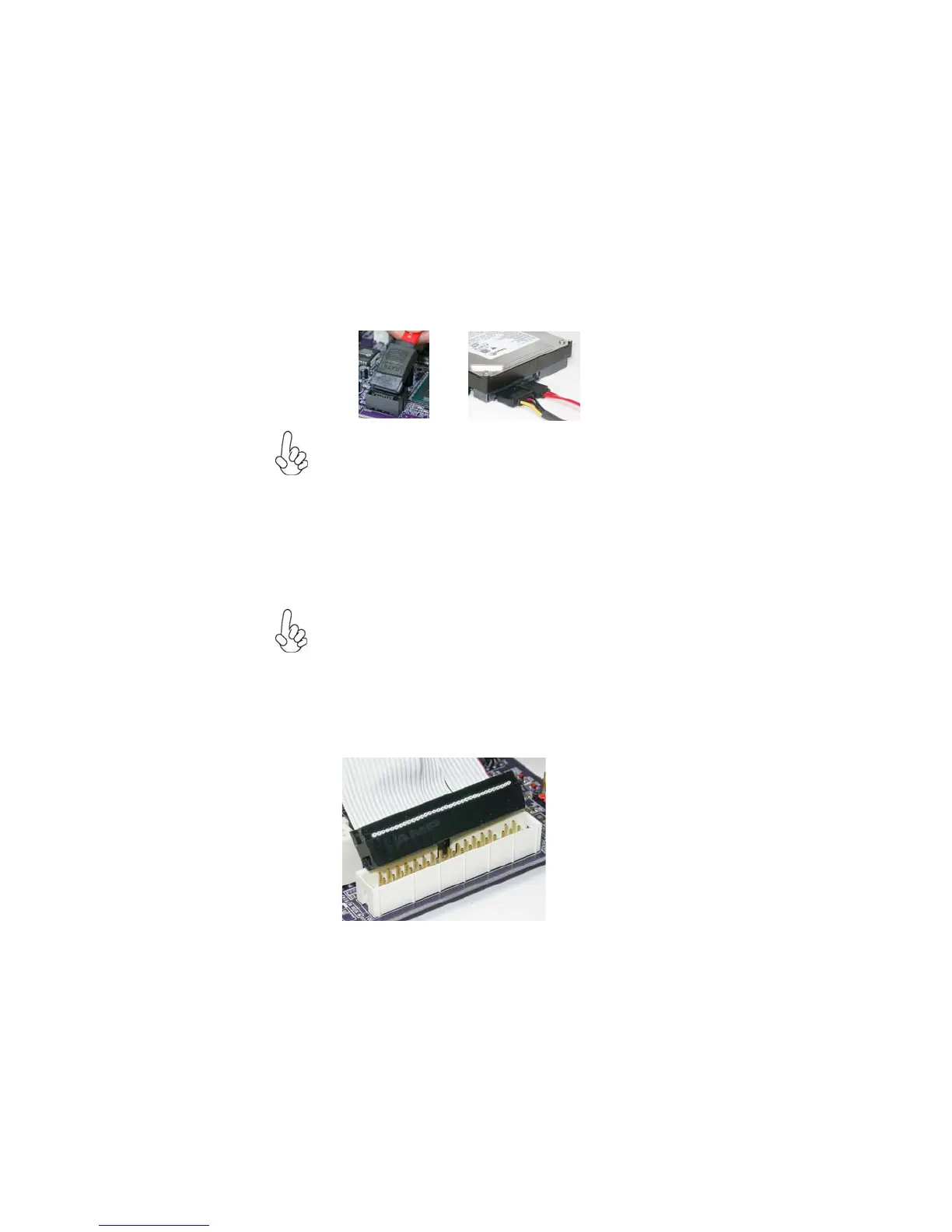

Refer to the illustration below for proper installation:
This motherboard does not support the “Hot-Plug” function.
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
FDD: Floppy Disk Connector
This connector supports the provided floppy drive ribbon cable. After connecting
the single end to the onboard floppy connector, connect the remaining plugs on the
other end to the floppy drives correspondingly.
Installing a Floppy Diskette Drive
The motherboard has a floppy diskette drive (FDD) interface and ships with a
diskette drive ribbon cable that supports one or two floppy diskette drives. You can
install a 5.25-inch drive and a 3.5-inch drive with various capacities. The floppy
diskette drive cable has one type of connector for a 5.25-inch drive and another type
of connector for a 3.5-inch drive.
You must orient the cable connector so that the pin 1 (color) edge of
the cable corresponds to the pin 1 of the I/O port connector.

ECS G31T-M7 Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Core 2 Duo, Intel Core 2 Quad
S/PDIF out connector	Yes
Number of COM connectors	1
Number of SATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
BIOS memory size	32 Mbit
