NVIDIA RAID Configuration
Setting Up a Bootable RAID Array
This section explains how to configure a bootable NVIDIA RAID array.
Setting Up the BIOS
Use the arrow keys to select Integrated Peripherals (see Figure 1.4), then
press Enter.
The Integrated Peripherals screen (or a screen similar to it) appears.

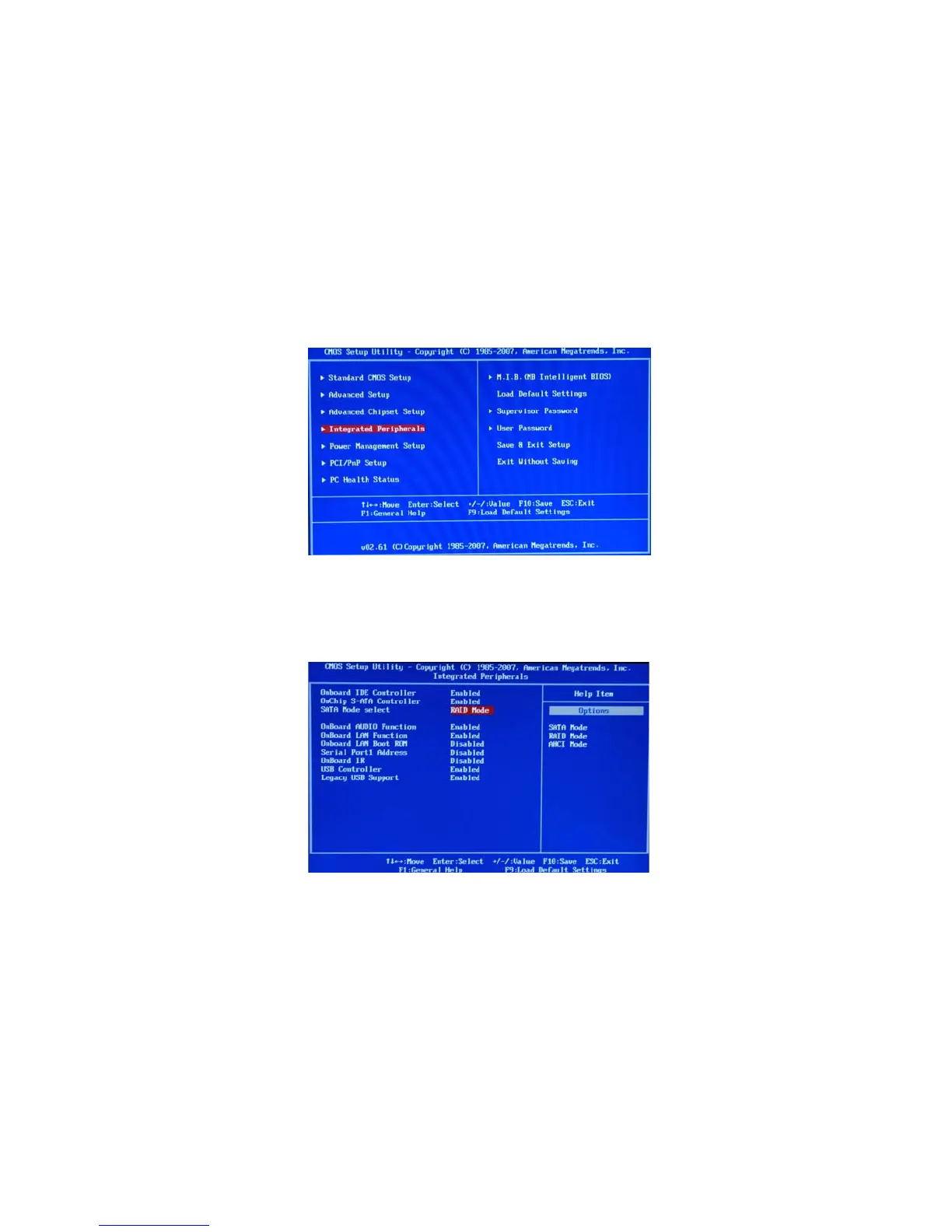

Figure 1.5 Integrated Peripherals Screen
From the Integrated Peripherals Window, globally set SATA Mode select to
RAID Mode (see Figure 1.5).
Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Figure 1.4 BIOS CMOS Setup Utility Main Screen
1
2
3

ECS GF8100VM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of SATA connectors	6
Controller interface type	NVIDIA MCP78V
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
Maximum graphics card memory	512 MB
RAID levels	0, 1
