ECS GF8200A User Manual

22
Installing the Motherboard

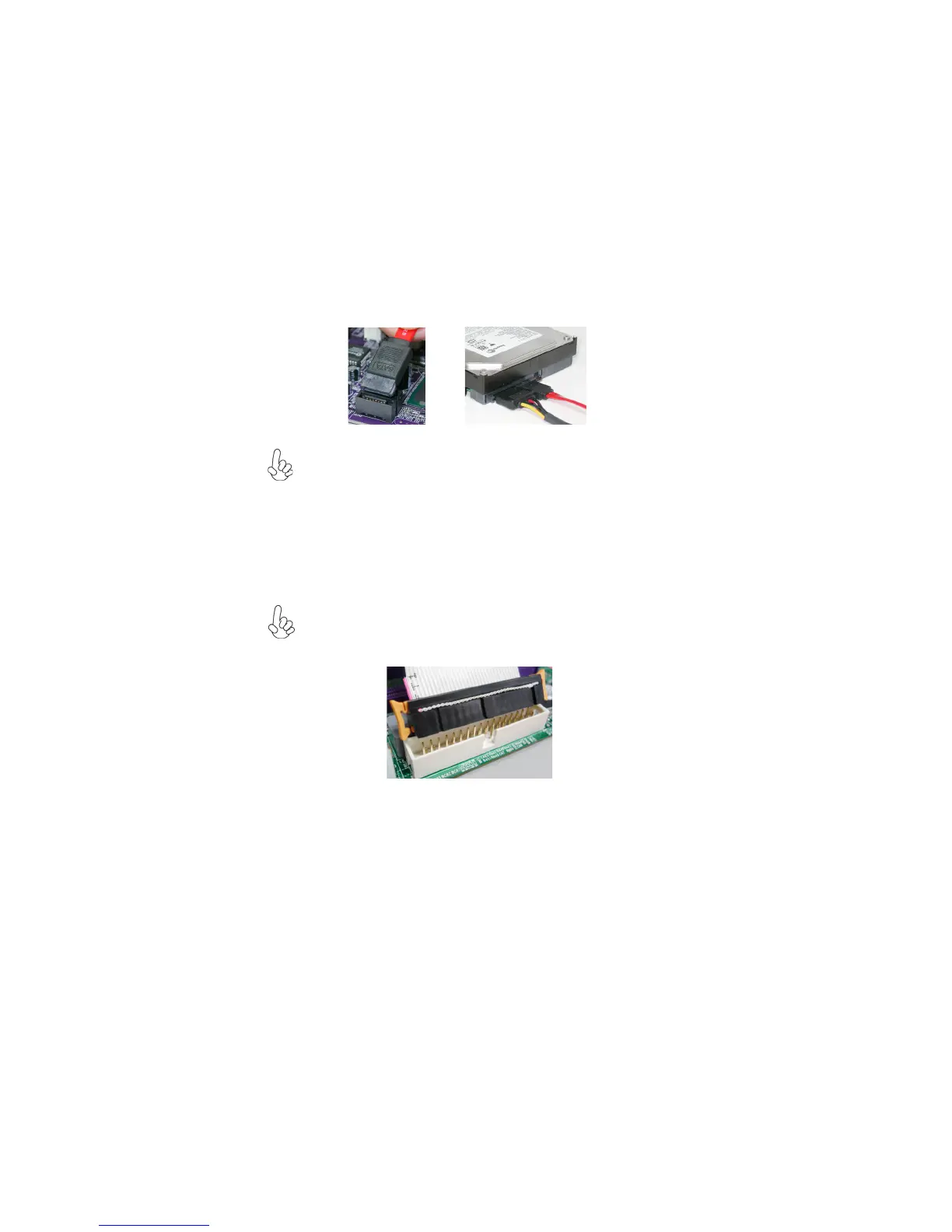

Refer to the illustration below for proper installation:
This motherboard supports the “Hot-Plug” function.
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
Installing a Floppy Diskette Drive
You must orient the cable connector so that the pin 1 (color) edge of
the cable corresponds to the pin 1 of the I/O port connector.
FDD: Floppy Disk Connector
Connect the single end of the floppy connector to the onboard floppy connector
firstly, and then connect the remaining plugs on the other end to the floppy drives
correspondingly.

ECS GF8200A Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Compatible processor series	AMD Sempron
USB 2.0 connectors	3
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	5
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Audio chip	IDT 92HD206
Audio output channels	7.1 channels
Motherboard form factor	ATX
BIOS type	AMI
BIOS memory size	64 Mbit
PCI Express x1 slots	2
Maximum graphics card memory	512 MB
RAID levels	0, 1
