Chapter 2
18
H110I-C4P USER
MANUAL

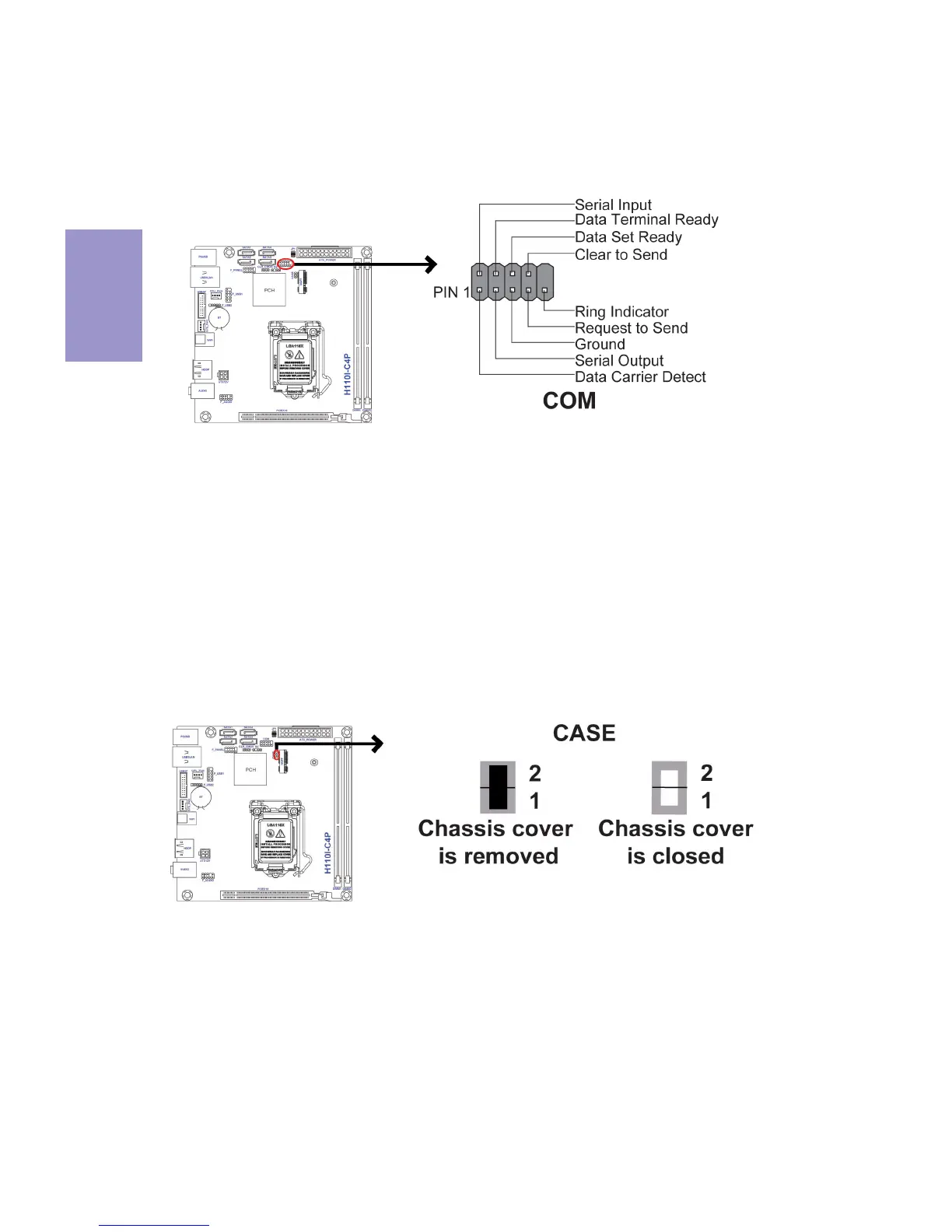

2. COM: Onboard Serial Port Header
Connect serial port extension brackets to this header to add serial port to your
system.
3. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis
equipped with instrusion detection switch and needs to be enabled in BIOS.
