21
Installing the Motherboard

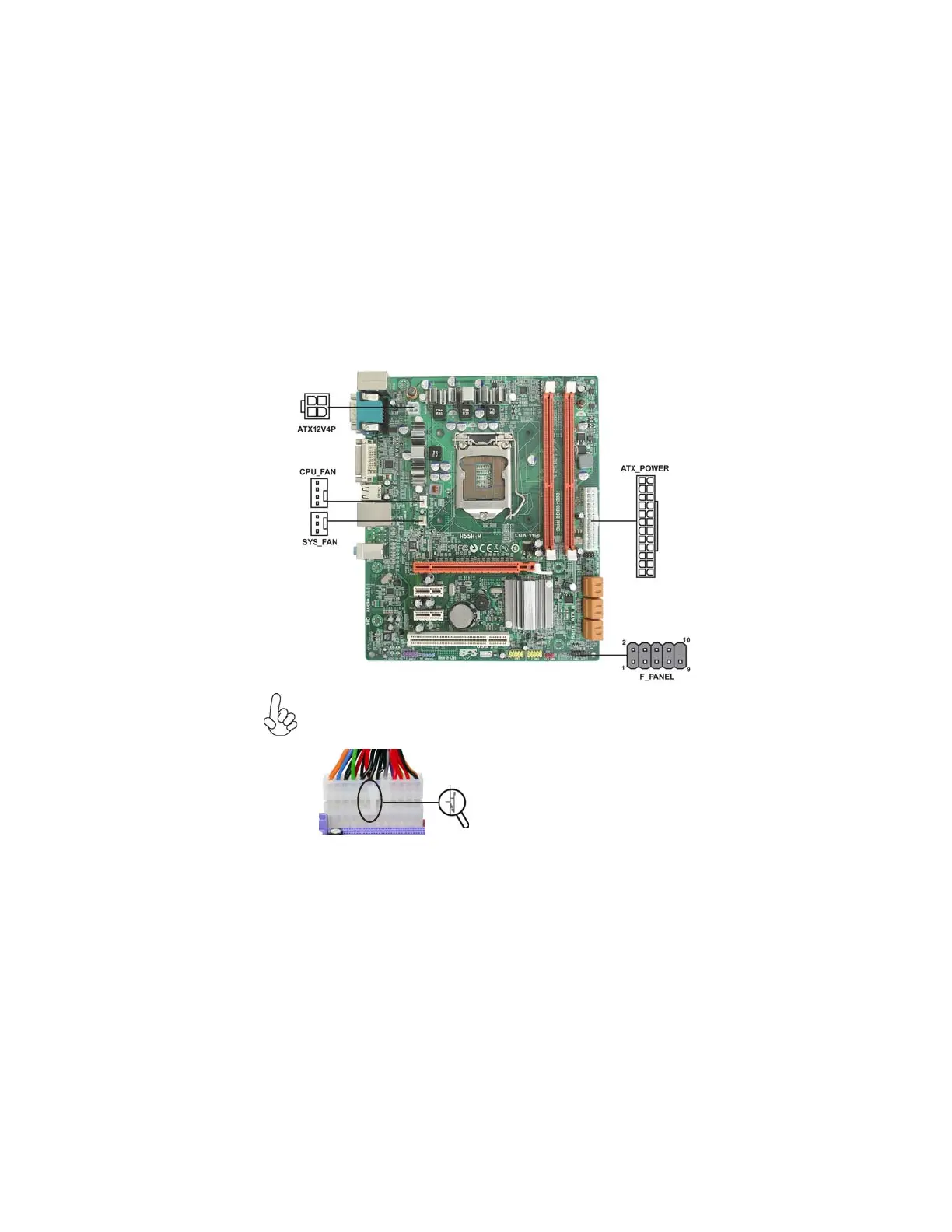

Connecting Case Components
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the standard power supply connector to ATX_POWER.
3 Connect the case switches and indicator LEDs to the F_PANEL.
4 Connect the system cooling fan connector to SYS_FAN.
5 Connect the auxiliary case power supply connector to ATX12V4P.
The ATX_POWER 24-pin connector allows you to connect to ATX v2.x
power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX_POWER match perfectly.
Connecting 24-pin power cable
24-pin power cable

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ECS H55H-M and is the answer not in the manual?

ECS H55H-M Specifications

General IconGeneral
Number of memory slots2
Maximum internal memory8 GB
Processor socketLGA 1156 (Socket H)
Processor manufacturerIntel
S/PDIF out connectorYes
Number of SATA connectors6
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports1
Firewire (IEEE 1394) ports0
Audio chipVIA VT1705
Power source typeATX
Audio output channels5.1 channels
Motherboard form factormicro ATX
LAN controllerAtheros AR8131M
Networking featuresGigabit Ethernet
ACPI version3.0
BIOS memory size16 Mbit
Weight and Dimensions IconWeight and Dimensions
Depth200 mm
Width244 mm
