1 & 3 & 6. CPU_FAN(CPU cooling FAN Power Connector) & PWR_FAN(Power
cooling FAN Power Connector) & SYS_FAN(System Cooling FAN Power Connec-
tor)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
2-4-7. Connecting Case Components
No. Components No. Components
1 CPU_FAN 5 F_PANEL
2 ATX_POWER 6 SYS_FAN
3 PWR_FAN 7 ATX12V
4SPKR~ ~

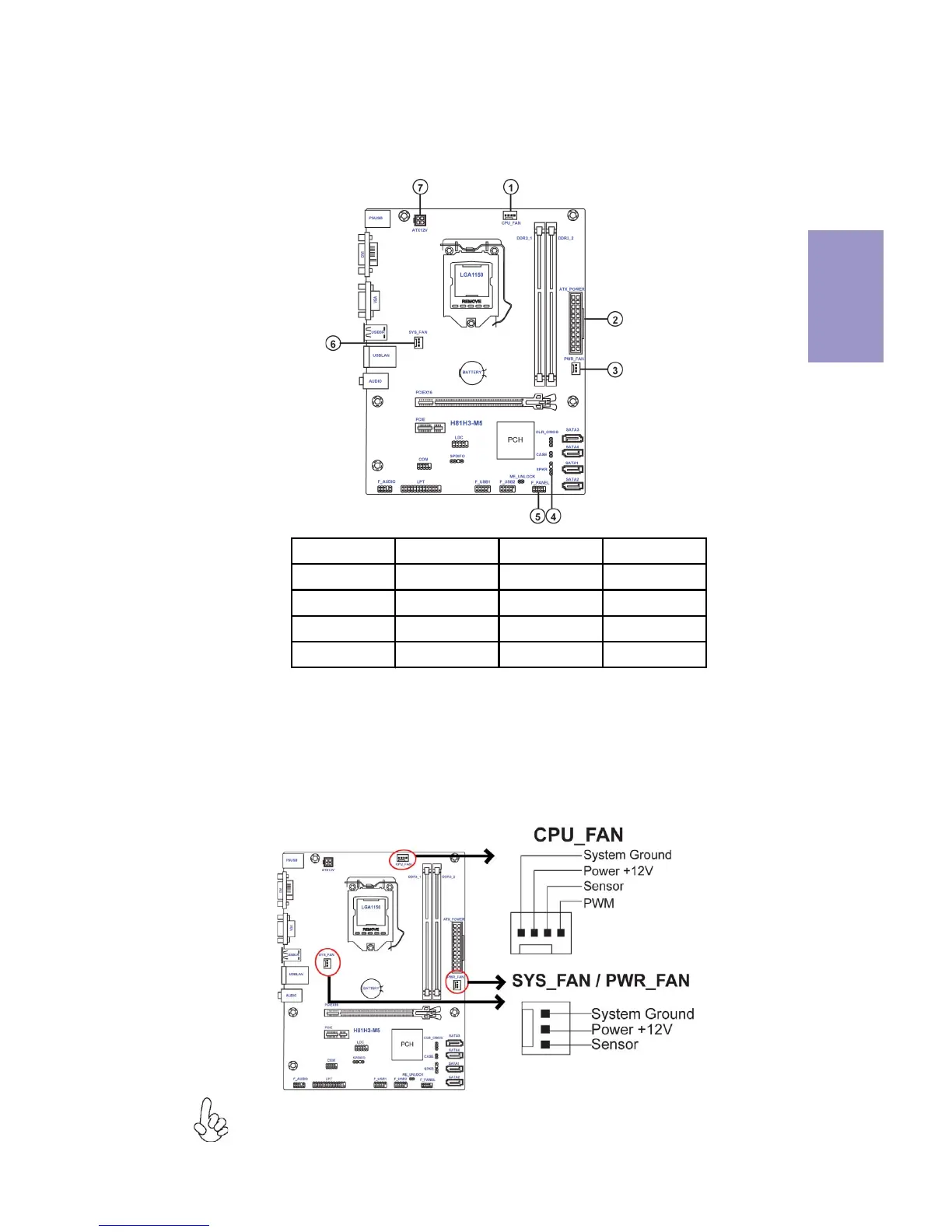

Connect the CPU cooling fan cable to CPU_FAN
Connect the system cooling fan connector to SYS_FAN.
Connect the power cooling fan connector to PWR_FAN.
