Setting Up eJIFFY
63
3.

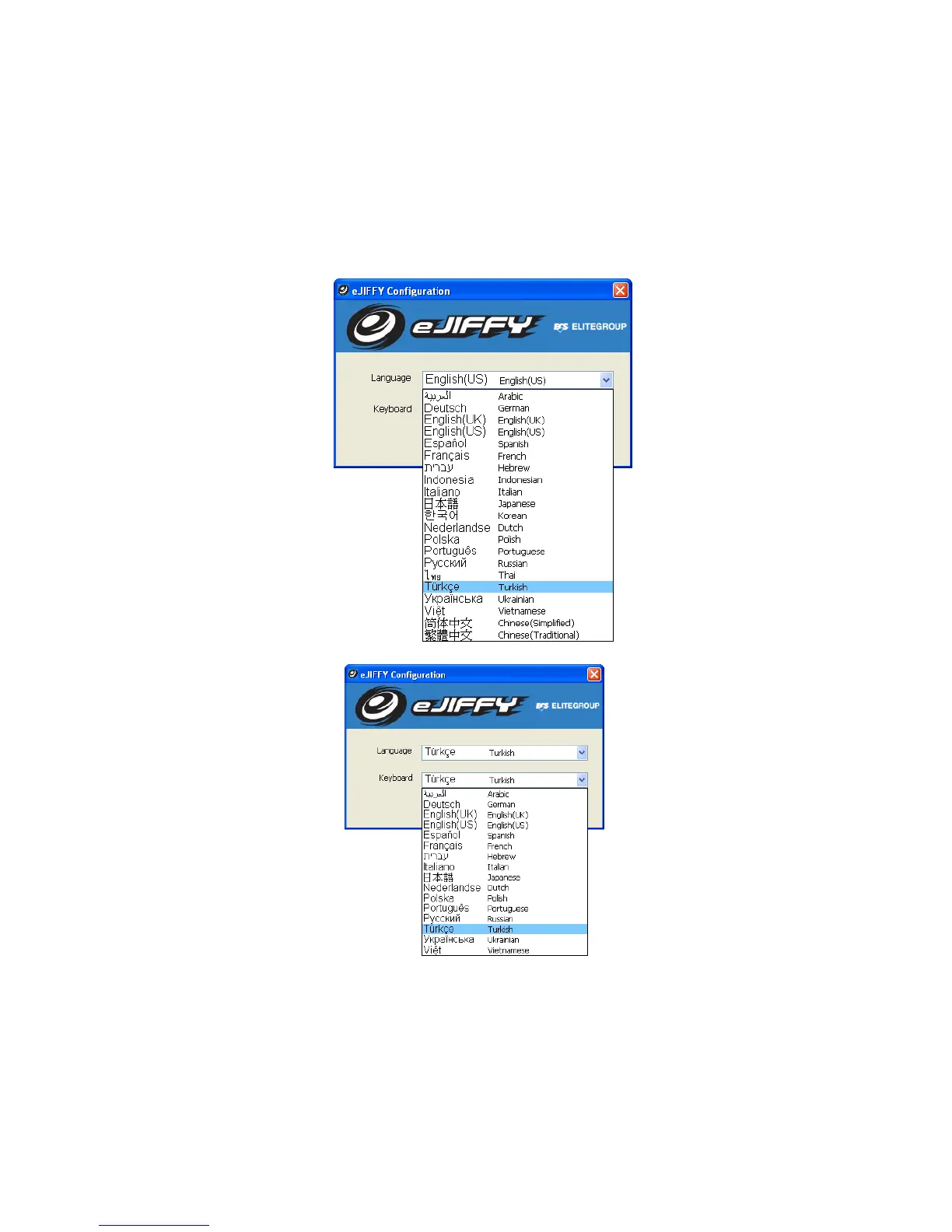

After setting up eJIFFY under
Windows, you can switch eJIFFY
display/keyboard
language from English to your local language. The changes will be applied after
rebooting.
Note:
The keyboard language selection list offers several more regional keyboard
setups to switch with the default English typing. Please refer to the usage F
AQ for
more tips.
66
68
