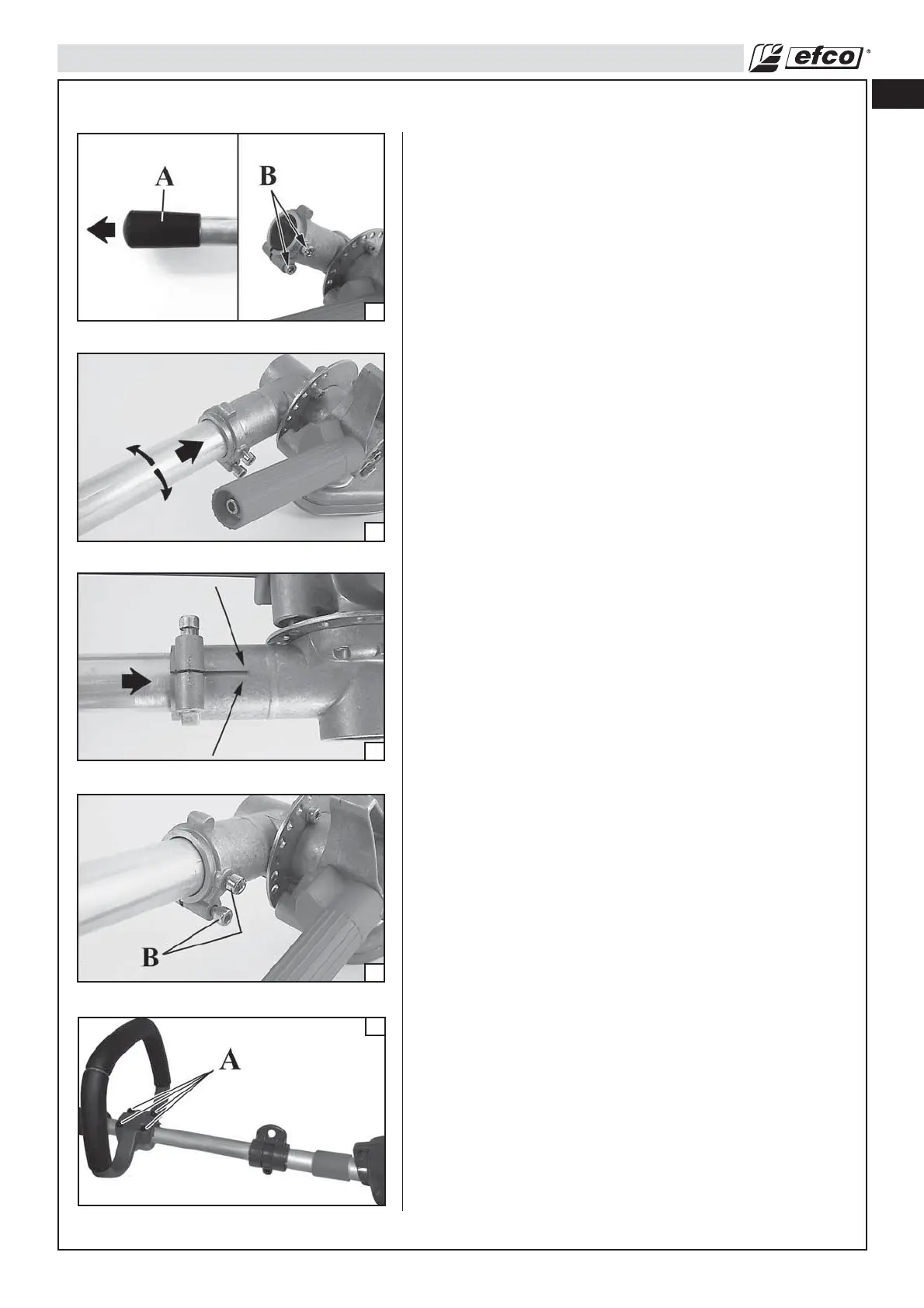

Cutting implement assembly
1. Remove the plug (A, Fig. 14)
2. Loosen the clamp screws (B, Fig.14) of the hedgetrimmer angle
drive and couple to the end of the shaft arm, twisting slightly
one way and the other (Fig.15). When the end of the arm can no
longer be seen through the clamp slit (Fig.16), push home until it
will go no further.
3. Tighten the clamp screws fully (B, Fig.17) to secure the
attachment.
Fitting the handle (Fig.18)
Fit the handle onto the shaft arm and secure it using screws (A),
washers, and nuts. The handle position is calculated depending on
the requirements of the operator.
15
16
17
18
14
ASSEMBLY
