elco VL 2.160 D User Manual

11/2010 - Art. Nr. 4200 1029 8600A 3
Overview

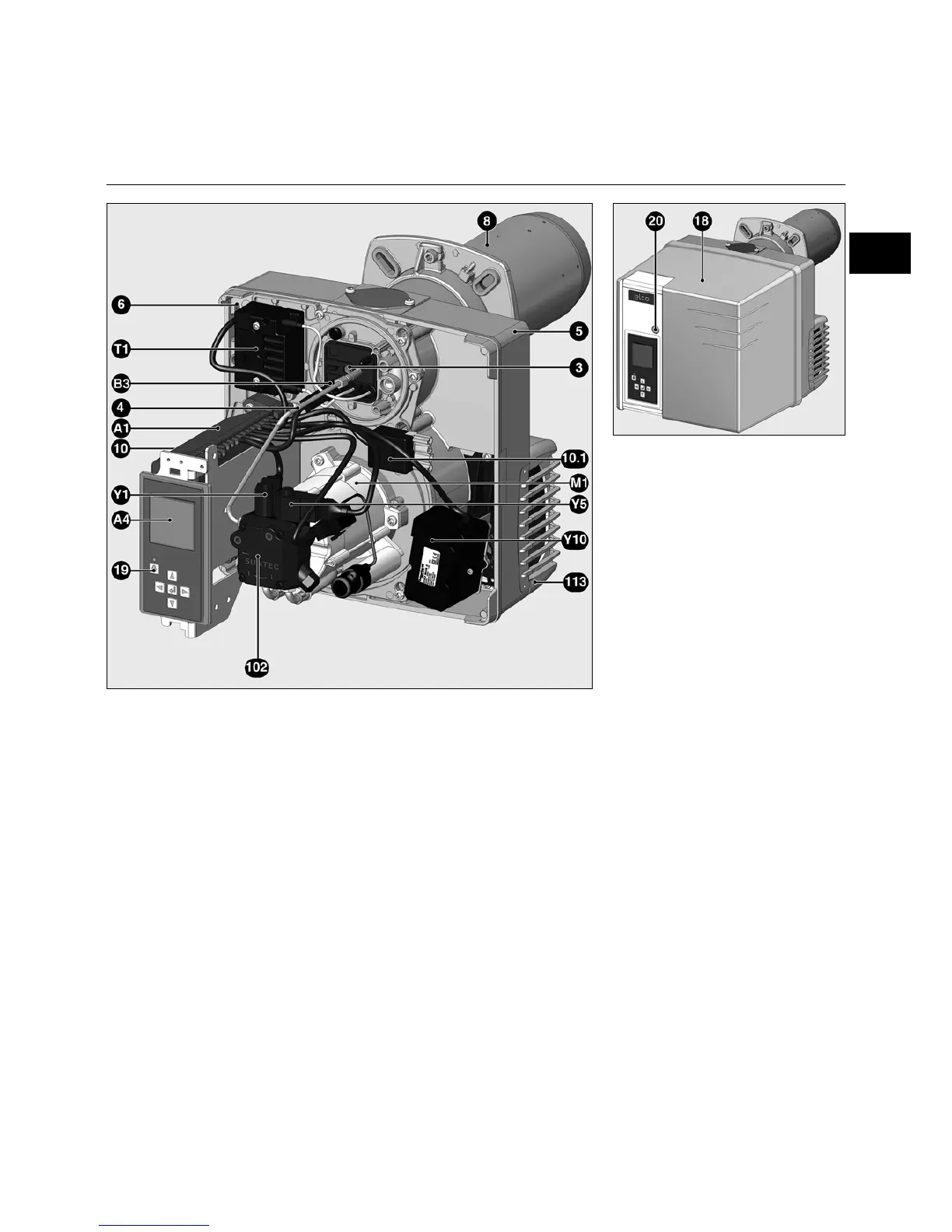

Burner description
Y10 Air flap servomotor
A1 Automatic combustion control unit
A4 Display
B3 Flame monitor
M1 Blower and pump motor
T1 Igniter
3 Adjusting screw for dimension Y
4 Nozzle line tube
5 Housing
6 Plate hanging device
8 Burner tube
10 7-pin connector (hidden)
10.1 4-pin connector
18 Cover
19 Release knob
20 Hood securing screw
102 Fuel oil pump
Y1,Y5Solenoid valves
113 Air intake box
