Built-In Dishwasher
(see enclosed installation instructions)
Free-Standing Appliances
1
can be set up as stand-alone without addi-
tional installation.
If the dishwasher is set up next to a cooker, a
heat-insulating, non-flammable plate must be
mounted between the dishwasher and the
cooker, flush to the top edge of the work sur-
face (depth 57.5 cm). The plate should have
aluminium foil on the side facing the cooker.

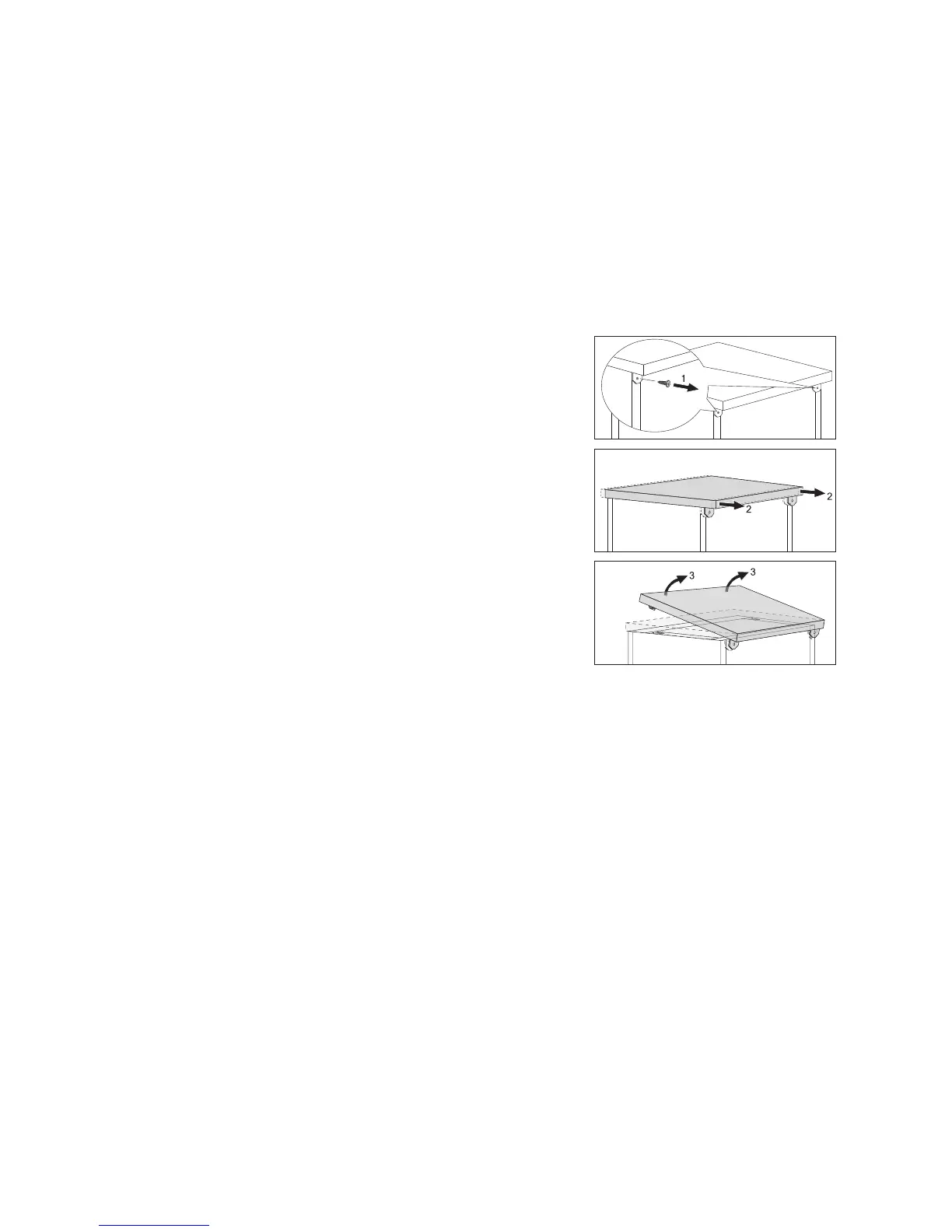

If the dishwasher is installed underneath a kitchen
work surface, the original work surface of the dish-
washer is to be removed as follows:
1. Unscrew the screws from the positioning plates on
the back (1).
2. Slide the appliance's work surface approx. 1 cm to
the rear (2).
3. Lift the work surface at the front (3) and remove.
1
If the dishwasher is later used as a free-
standing appliance, the original work surface
must be re-mounted.
3
The plinth on free-standing appliances is not
adjustable.
