Connections
The water inlet and drain hoses, as well as the mains
cable must be connected beside the dishwasher
because there is no space for them behind the appli-
ance.

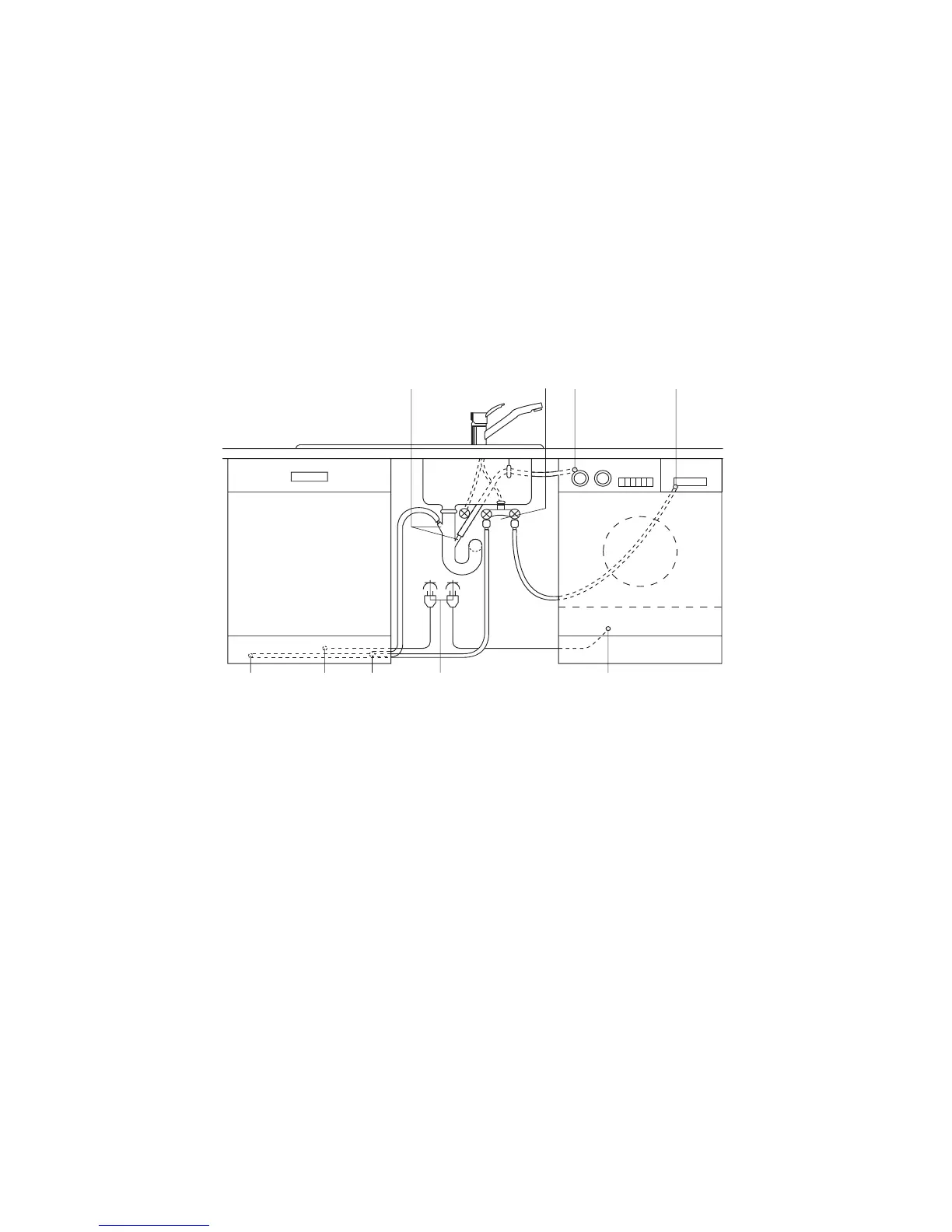

The example plumbing and electrical installation
given below can only be regarded as a recommenda-
tion; the actual situation where the dishwasher is to
be installed will define the exact installation (available
connections, local electricity and water board regula-
tions for connecting up appliances, etc.).
Two 45° or Straight Connec-
tions,Outer ø 19 mm, Length 30 mm
Double
tap
Water
drain
Water
inlet
Water
drain
Water inlet Mains cable
Mains cable
Mains
socket
