T 3000 - T 350

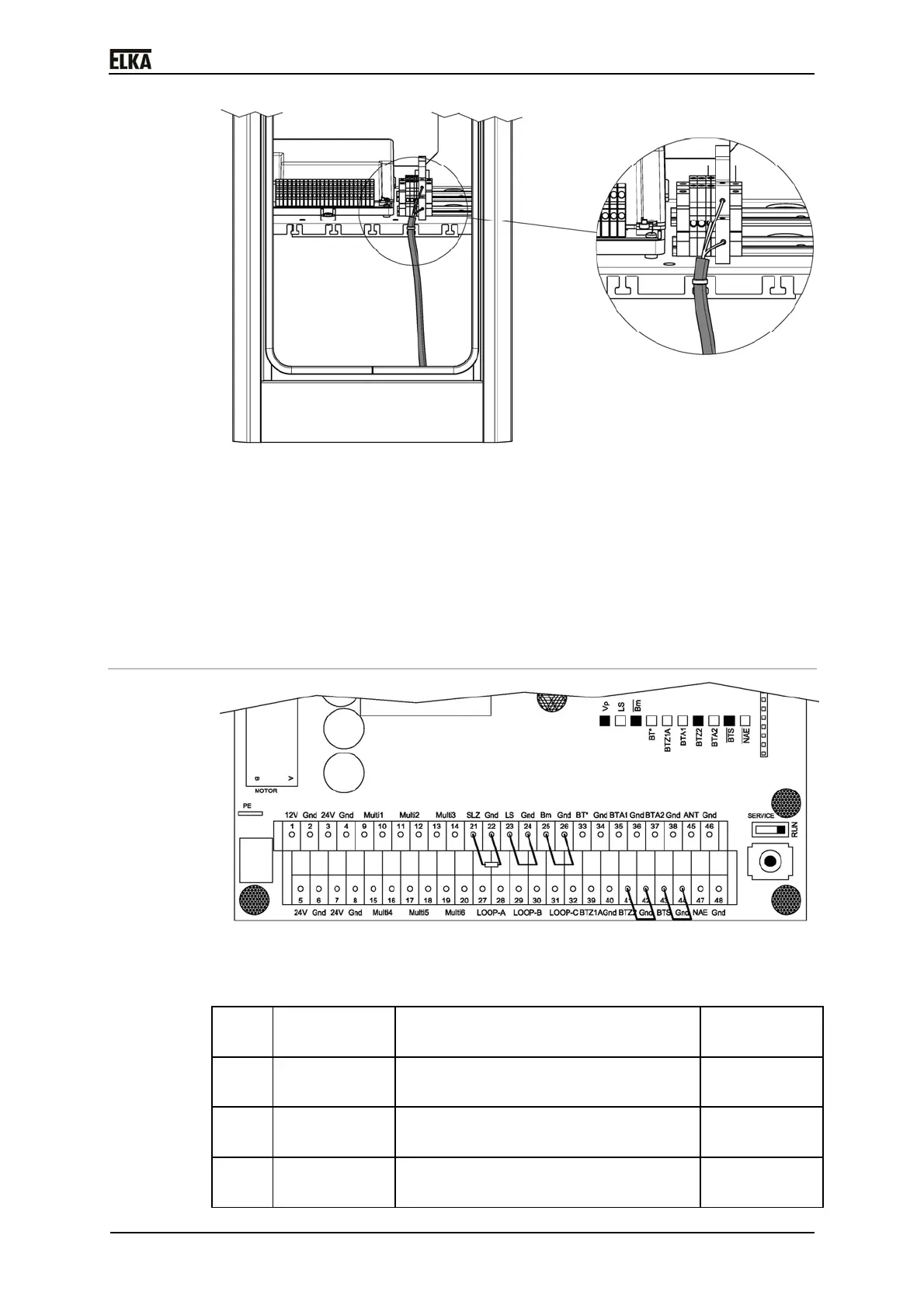

Drawing 19

Connecting the power line:

1. Lay the power line via the shortest possible way to the main switch. Make

sure the power line does not have contact with any movable mechanical

parts.

2. Connect the power line to the main switch and to the earth lead terminal.

3. Fasten/secure the power line by cable ties at the provided tabs.

8.3 Controller terminal row

Drawing 20

The following control inputs have to be bridged or occupied with contact (NC)

for operation:

1. Terminals

23 + 24

Photoelectric barrier (LS) NC contact or

bridge

2. Terminals

25 + 26

Boom missing contact (Bm) NC contact or

bridge

3. Terminals

41 + 42

Push button CLOSE (BTZ2) NC contact or

bridge

4. Terminals

43 + 44

Push button STOP (BTS) NC contact or

bridge
