eltherm ELTC-21 Operation Manual

4
46.0 mm
87.5 mm
58.0 mm
51.5 mm
60.0 mm
46.5 mm
30.0 mm

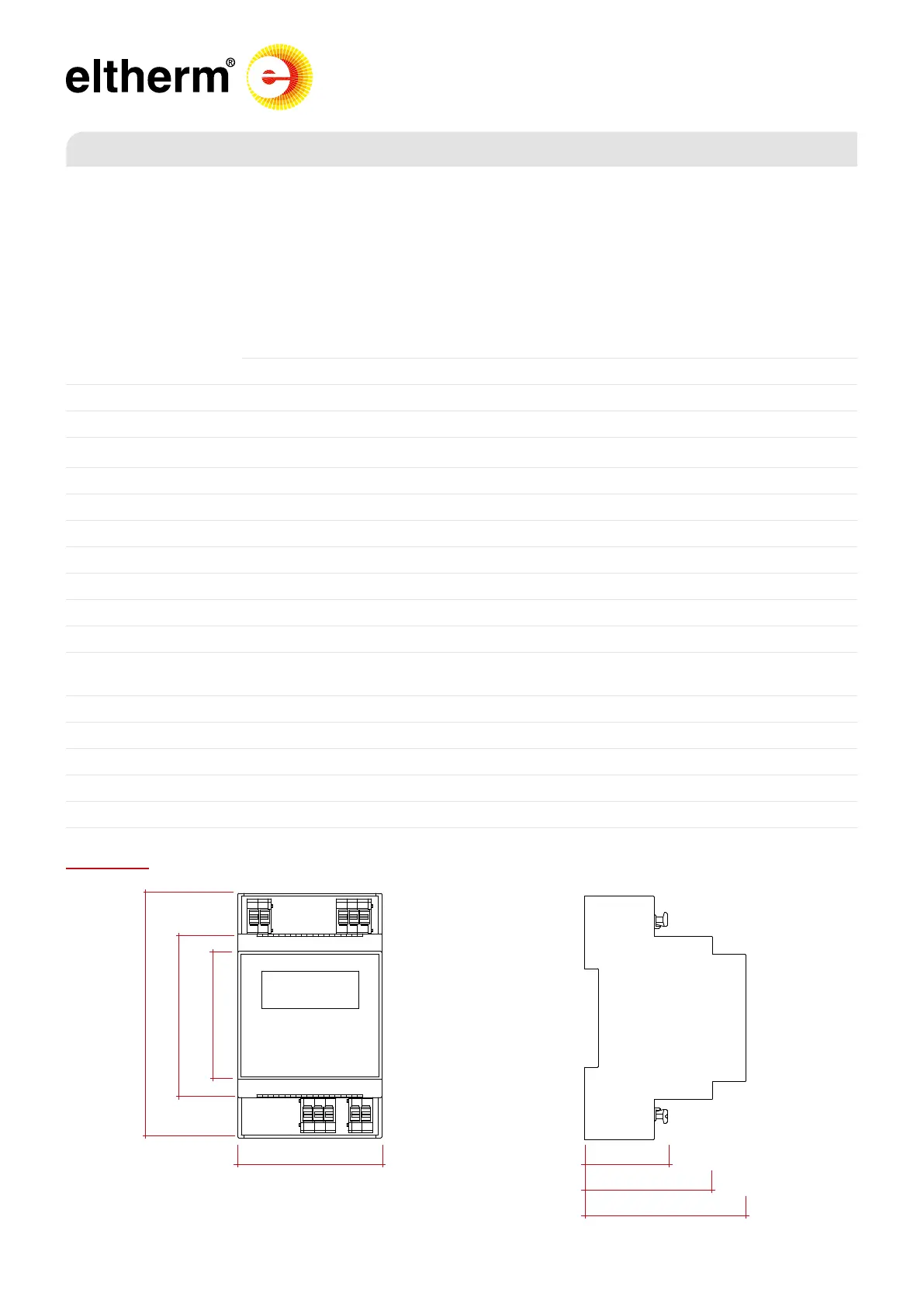

FUNCTIONAL DESCRIPTION & TECHNICAL DATA
TECHNICAL DATA
Dimensions
FUNCTIONAL DESCRIPTION
If the actual value (P01) falls below the setpoint (P10 minus hysteresis P11), relay K1 switches the heating on. The integrated
alarm relay enables error messages via a changeover contact in case of over / under temperature, sensor interruption or sensor
short circuit. In the event of sensor errors, relay K1 switches the heating line off or on, depending on the configuration of the
controller.
Controller type
ELTC-21 ELTC-22
Nominal voltage
187…253 VAC, 50/60 Hz 24 VDC / 18 VAC, ± 10 %
Current consumption max. 30 mA max. 100 mA
Relay K1 16 A res., 80 A max. 20 ms 16 A res., 80 A max. 20 ms
Relay K2 (alarm) 8 A res. / max. 230 VAC (changeover contact) 1 A res. / max. 24 VDC (changeover contact)
Operating temperature -25 to +55°C -25 to +55°C
Storage temperature -25 to +60°C -25 to +60°C
Setting range 0 to +400°C, congurable 0 to +400°C, congurable
Display range -50 to +400°C -50 to +400°C
Accuracy ± 1K, ± 2 Digits (-50 to 400°C) ± 1K, ± 2 Digits (-50 to 400°C)
Display LED, red, 13 mm / 1,2 mm, red LED, red, 13 mm / 1,2 mm, red
Sensor connection Pt100 2-wire & Pt100 3-wire Pt100 2-wire & Pt100 3-wire
Connection terminals
0.2...1.5mm² copper wire,
stripping length 9…10mm
0.2...1.5mm² copper wire,
stripping length 9…10mm
Housing material Polycarbonate, black Polycarbonate, black
Housing dimension 51,5 x 87,5 x 58 mm (WxHxD) 51,5 x 87,5 x 58 mm (WxHxD)
Protection class IP 54 from the front, IP 30 IP 54 from the front, IP 30
Type of mounting DIN rail TS DIN rail TS
Weight approx. 0,2 kg approx. 0,2 kg

eltherm ELTC-21 Specifications

General

Brand	eltherm
Model	ELTC-21
Category	Controller
Language	English
