E.T.L. Model No.: CF985
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!

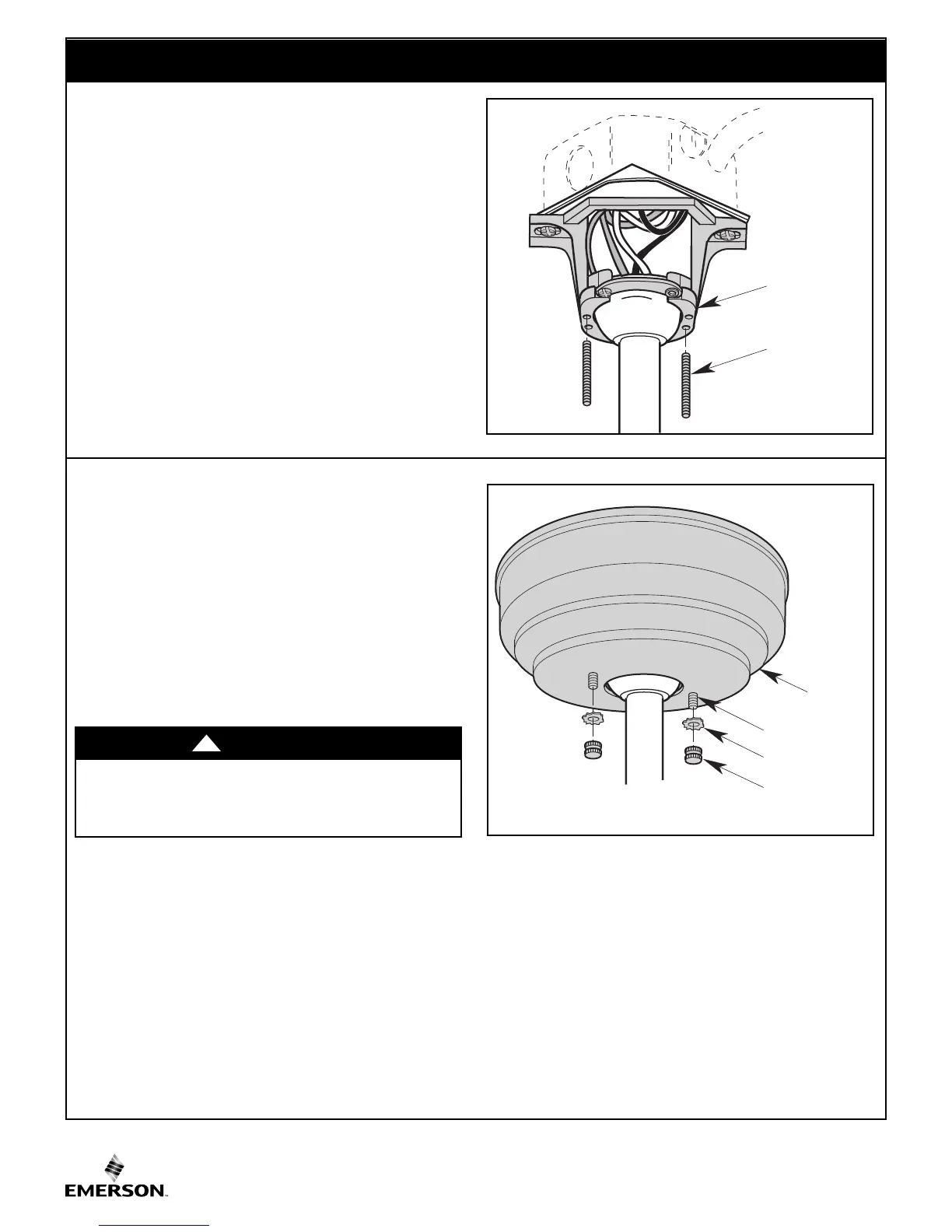

6. Installation of the Ceiling Cover
THREADED
STUD (2)
HANGER
B
RACKET
Figure 18
6.1
Screw the two threaded studs (supplied) into the tapped
h
oles in the hanger bracket (Figure 18)
THREADED
STUD (2)
LOCKWASHER (2)
KNURLED
KNOB (2)
CEILING
COVER
Figure 19
6.2
Lift the ceiling cover up to the threaded studs and turn until
studs protrude through the holes in the ceiling cover
(Figure 19).
Secure the ceiling cover in place by sliding lockwashers
over the threaded studs and installing the two knurled
knobs (supplied) (Figure 19).
Tighten the knurled knobs securely until the ceiling cover
fits snugly against the ceiling and the hole in the ceiling
cover is clear of the downrod (Figure 19).
