1. Unpacking Instructions
3
emersonfans.com
Please contact 1-800-654-3545 for further assistance
E.T.L. Model No.: CF985
This product is designed to use only those parts supplied
w
ith this product and/or any accessories designated
specifically for use with this product by Emerson Electric
Co. Substitution of parts or accessories not designated
for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
WARNING
!
1.1
Open carton containing fan. Remove top half of styrofoam
unit. Remove parts and check to see that you have
received the following parts:
NOTE: If you are uncertain of part description, refer to
exploded view illustration.
NOTE: Place the parts from the loose parts bags in a
small container to keep them from being lost.
If any parts are missing, call 1-800-654-3545
for replacement parts before proceeding.

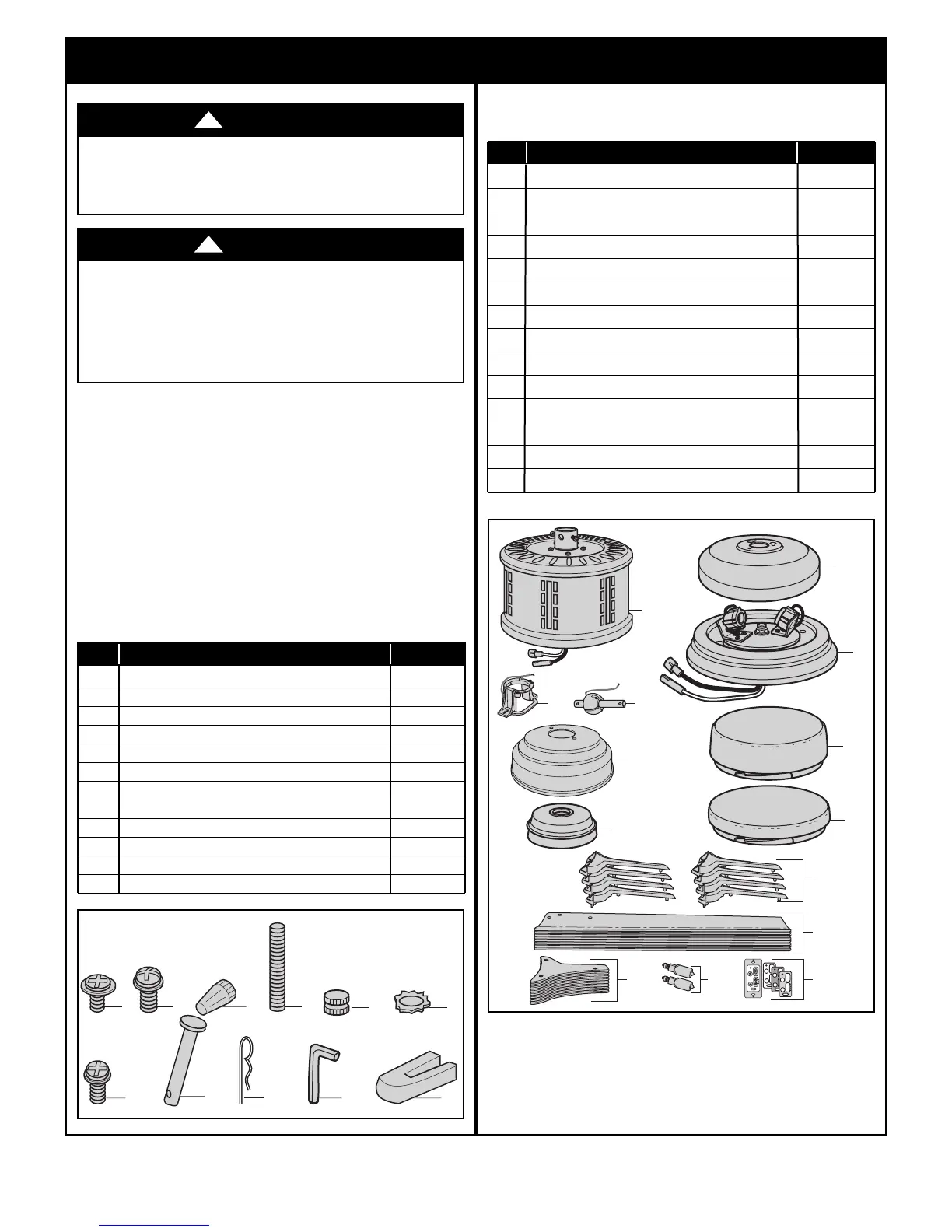

PACKAGE CONTENTS
HARDWARE CONTENTS
Part Description Quantity
1 #8-32 x 8mm Washer Head Screws 41
2 1/4-20 x 1/2” Oval Head Screw 17
3 Wire Connectors, 12 ga. 5
4 Threaded Studs, #8-32 x 1-1/4” 2
5 Knurled Knobs, #8-32 2
6 Lockwashers, External Tooth #8 2
7 #6-32 x 3/8” Truss Head Screw
w/Lockwashers (Spares) 2
8 Clevis Pin 1
9 Hairpin Clip 1
10 Hex Wrench 1
11 Blade Balance Kit 1
1.2
Remove the fan housing assembly from the protective
plastic bag. Turn the upper styrofoam pad over and
carefully place the fan motor assembly into the recess in
the pad with the top of the motor facing up.
Part Description Quantity
A Fan Motor Assembly 1
B Hanger Bracket 1
C Hanger Ball / 6” Downrod Assembly 1
D Ceiling Cover 1
E Coupling Cover 1
F Light Fitter Housing 1
G Light Fitter 1
H Glass Bowl 1
I Removable No-Light Cover Plate 1
J Blade Flanges 8
K Fan Blades 8
L Blade Flange Plates 8
M 50-Watt Mini-Candelabra Base Halogen Bulbs 2
N SW605 Wall Control/Hardware 1
