Please contact 1-800-654-3545 for further assistance
E.T.L. Model No.: CF985
Turning off wall switch is not sufficient. To avoid possible
e
lectrical shock, be sure electricity is turned off at the
main fuse box before wiring. All wiring must be in
accordance with National and Local codes and the ceiling
fan must be properly grounded as a precaution against
possible electrical shock.
WARNING
!
3.1
Disconnect electrical power to the branch circuit at the
circuit breaker or fuse box before attempting to install the
c
eiling fan hanger bracket on the outlet box.
SETSCREW
(LOOSENED)
HANGER BALL
6" DOWNROD
PIN

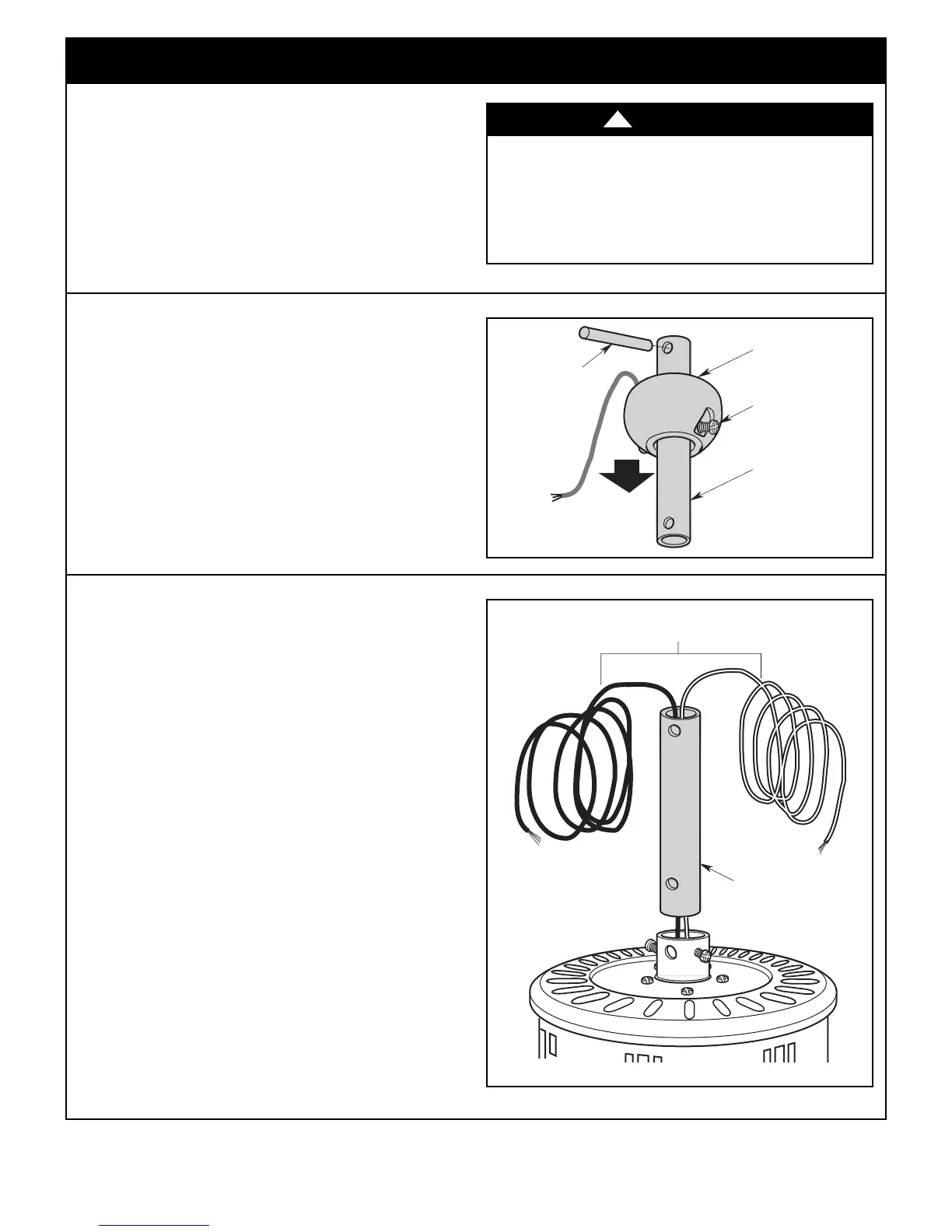

Figure 1
3. Ceiling Fan Assembly
3.2
Remove the hanger ball by loosening the setscrew in the
hanger ball until the ball falls freely down the downrod
(Figure 1).
Remove the pin from the downrod, then remove the
hanger ball.
Retain the pin and hanger ball for reinstallation in
Step 3.8.
NOTE: Do not loosen the screw holding the green
ground wire.
6" DOWNROD
TWO 80" MOTOR
LEADS (UNTWISTED)
Figure 2
3.3
Separate, untwist and unkink the two 80” motor leads.
Route the 80” black and white motor leads through the
downrod (Figure 2).
