Emerson Bettis XTE3000 Quick Start Guide

A1 A2 A3 A4 A5 A6
RDM+ RDM- Shield
24 V DC
110 to 220 V AC
50/60 Hz
Quick Start Guide
FCIM-20009-EN Rev. 0
March 2023
2
Section 2: XTE3000 – RDM Wiring Connection
XTE3000 – RDM Wiring Connection
Section 2: XTE3000 – RDM Wiring Connection
Bettis electrical actuator XTE3000 with RDM card VAXTE-494MOD3400 provides one channel
of MODBUS at A1, A2, A3 terminal and one channel of RDM port at A4, A5, A6. The wiring
connection between XTE3000 to RDM module shows in Figure 2 and RDM module has 2
options to be powered.

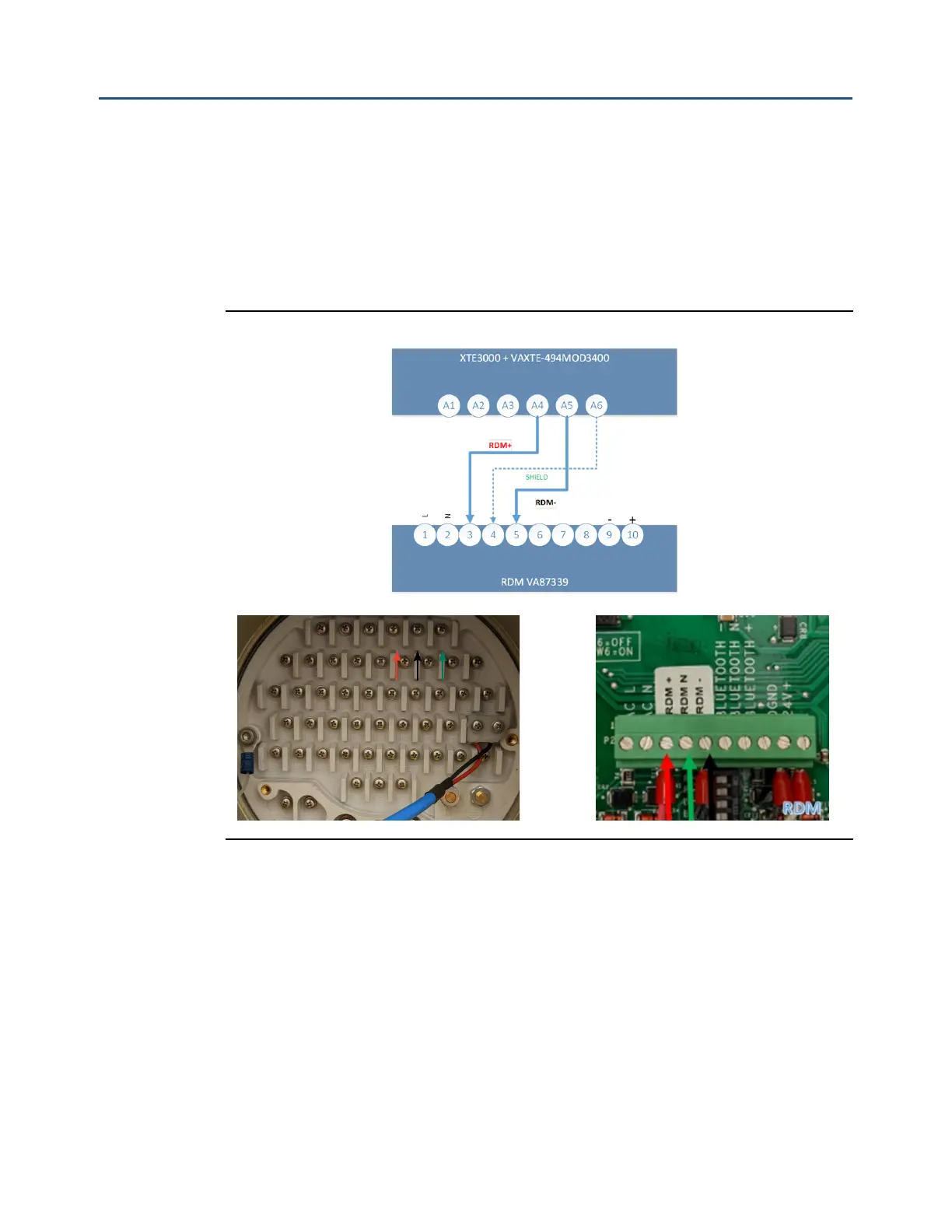

Figure 2

Emerson Bettis XTE3000 Specifications

General

Brand	Emerson
Model	Bettis XTE3000
Category	Controller
Language	English
