Epsilon Eb and EN Drives Reference Manual

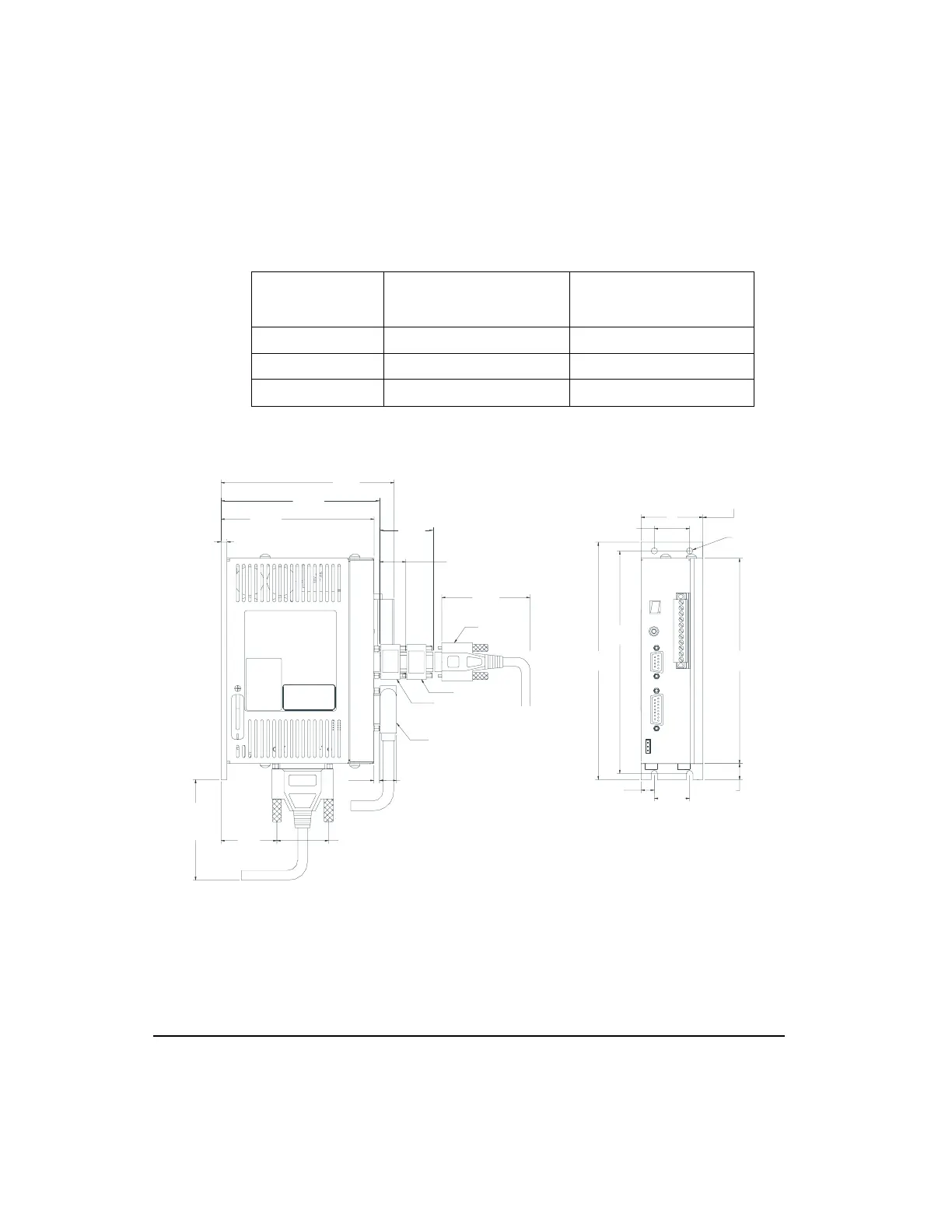

Epsilon Drive Dimensions
The following table applies to A* and B* as shown in the figure below.
Drive Model
Dimension A*
(shown in
inches/mm)
Dimension B*
(shown in
inches/mm)
Eb-202 2.10 [53.3] .45 [11.4]
Eb-203 2.10 [53.3] .45 [11.4]
Eb-205 3.56 [90.42] .7 [17.78]
5.96
[151.4]
5.21
[132.3]
8.27
[210.1]
7.15
[181.6]
7.75
[196.9]
0.56
[14.2]
B*
1.20
[30.5]
Ø0.22
[Ø5.6]
A*
1.20
[30.5]
5.39
[136.9]
0.20
[5.1]
3.00
[76.2]
1.81
[46.1]
1.04
[26.4]
TIA Cable
& C0422
DDS
DDS, Te rm - H, Te rm - T
1.85
[46.9]
1.84
[46.7]
3.50
[88.9]
Cable
Clearance
0.75
[19.05]
0.19
[4.8]
EIO Cable
0.5 [13]
side clearance
for heatsink
