Emerson Copeland Scroll Introduction

23
127
228.6
3/8 SAE FLARE FOR OIL
RETURN ON ALL UNITS
INLET AND OUTLET
IS ON TOP OF UNIT
STYLE NO. 1
STYLE NO. 2
INLET AND OUTLET
IS ON TOP OF UNIT
STYLE NO. 3

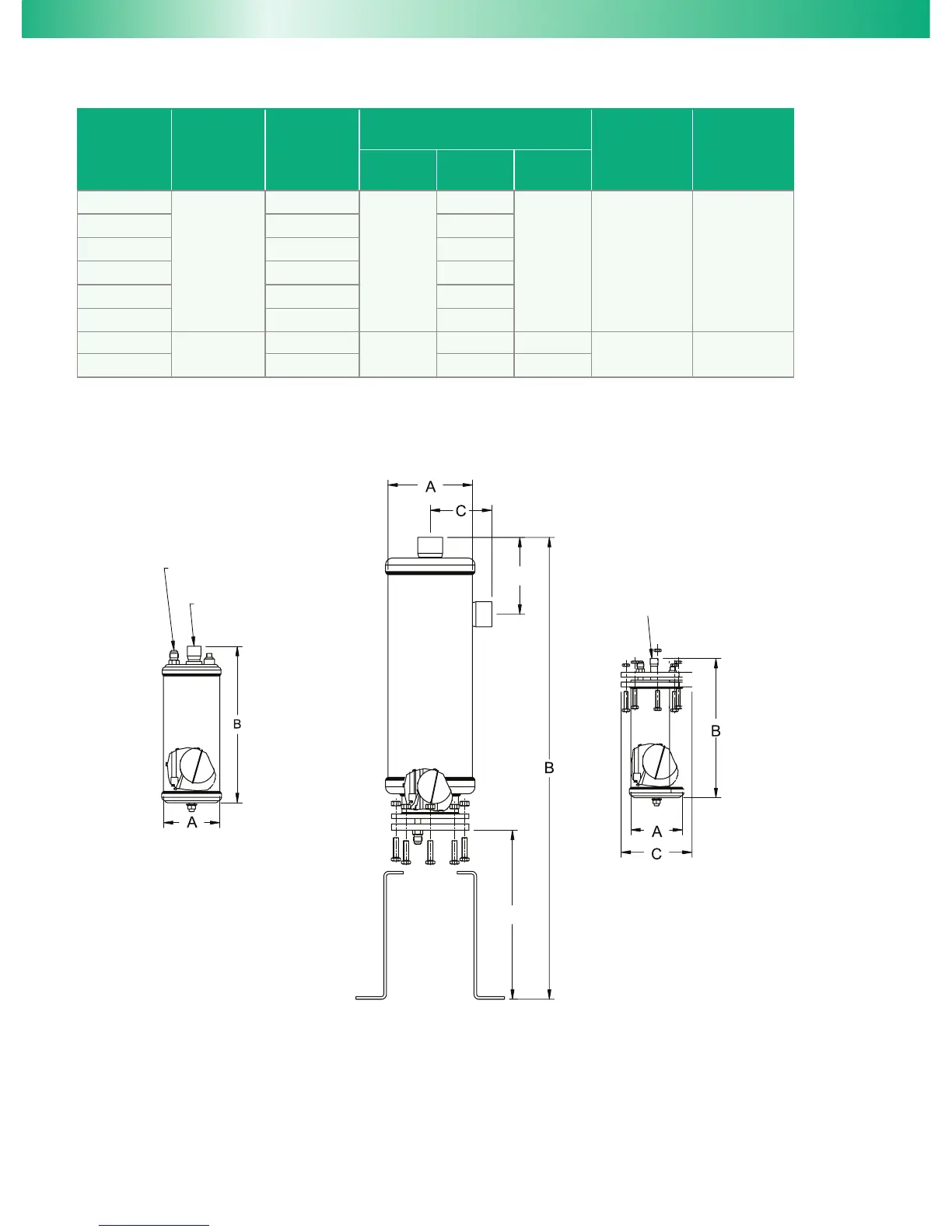

Dimensional Data (mm):
Flanged Units: A-F
Description
Style
No.
Connection
Size (inch)
Dimensions (in)
Replaceable
Float
PCN
Oil Pre-charge
Amount
(0%)
A B C
A-F 58824
3.0
1/2 ODF
4.0
10.5
5.5 N/A 17.0
A-F 58855 5/8 ODF 15.0
A-F 58877 7/8 ODF 18.0
A-F 58889 1 1/8 ODF 21.3
A-F 589011 1 3/8 ODF 21.4
A-F 589213 1 5/8 ODF 21.8
A-F 579213
2.0
1 5/8 ODF
6.0
20.1 4.4
065847 20.0
A-F 579417 2 1/8 ODF 20.3 4.6

Emerson Copeland Scroll Specifications

General

Brand	Emerson
Model	Copeland Scroll
Category	Air Conditioner
Language	English
