The APD series is designed to reduce noise and vibration on the
compressor discharge lines.
Features
• Compact size
• Full ow ttings
• Solid copper connections
• Corrosion resistant epoxy powder paint  nish
• Rugged steel shells for vibration resistance
• Shock resistant steel shell construction
Specications
• Maximum working pressure: 680 psig
• Operating Range: -40°F to +250°F
• UL/CUL  le number: SA 5760
APD Pulsation Dampener/Mufer
Nomenclature:
APD 05 3 S B
Pulsation
Dampener
Cubic
Inches
Fitting Size
in 1/8”
ODF
Fittings
With Bafes
(omit for
standard)
Flow Capacity
Fitting Size Tons
1/4 1–5
3/8 5–10
1/2 10–20
5/8 15–25
7/8 25–35
1 1/8 35+

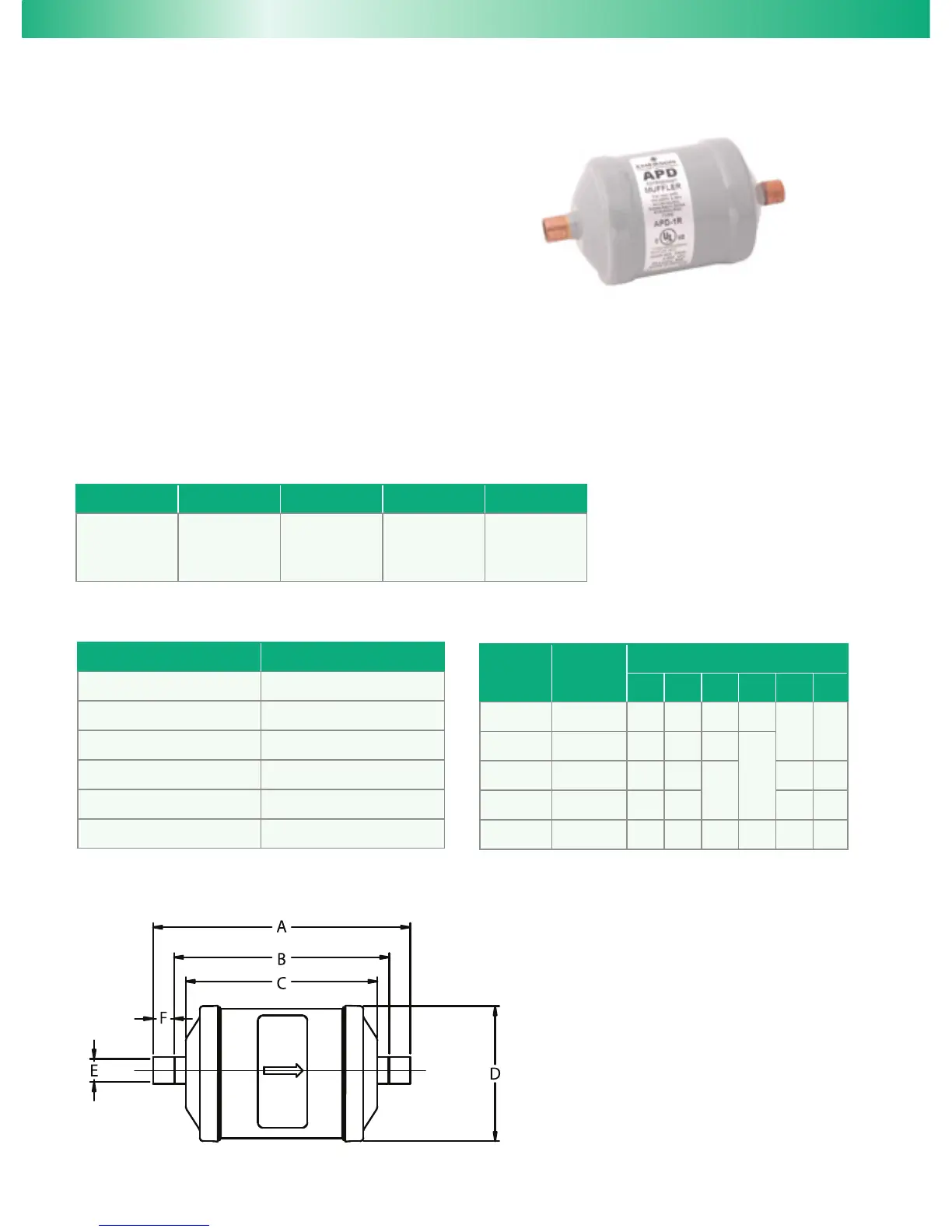

Dimensional Data
Ordering Information
Fitting
Size
Tons
Dimensions (in)
A B C D E F
061862 APD 1R 6.00 5.00 4.47 3.02
0.50 0.50
049651 APD 054 S-B 4.56 3.56 3.00
2.63
059144 APD 163 S 6.25 5.38
4.75
0.38 0.38
060119 APD 165 S-B 6.56 5.31 0.63 0.63
056989 APD 309 S 10.25 8.44 7.50 3.13 1.13 0.88
