PCN Description
Size (mm)
Number of
48 in
3
Cores
A B C D
053001 STAS-485T 252.5 152.4 96.0 16.0
1
053003 STAS-487T 246.1 158.8 95.3 19.8
053005 STAS-489T 247.7 160.3 97.5 23.9
053007 STAS-4811T 249.9 163.6 100.8 23.9
053043 STAS-4813S-V
1
251.0 152.9 102.3 28.7
053044 STAS-4817S-V
1
255.5 166.6 115.8 34.0
053045 STAS-4821S-V
1
265.2 178.6 120.7 26.4
053375 STAS-4813T 251.0 165.1 102.4 28.7
053938 STAS-4811SV 250.0 163.6 100.8 23.9
053010 STAS-967T 385.8 297.7 95.3 19.8
2
053012 STAS-969T 386.6 299.2 97.5 23.9
053014 STAS-9611T 388.9 302.5 100.8 26.2
053017 STAS-9613T 390.7 304.0 102.4 28.7
053018 STAS-9617T 395.2 305.6 115.8 34.0
053047 STAS-9617S-V
1
395.2 305.6 115.8 34.0
053048 STAS-9621S-V
1
404.9 317.5 120.7 38.1
059739 STAS-9625 SV 420.1 320.8 138.2 42.2
053020 STAS-1449T 539.8 441.5 97.5 23.9
3
053022 STAS-14411T 542.0 445.3 100.8 26.2
053024 STAS-14413T 543.1 446.8 102.4 28.7
053025 STAS-14417T 547.6 447.8 115.8 34.0
053028 STAS-19211T 683.5 584.2 100.8 26.2
4
053030 STAS-19213T 684.3 588.5 102.4 28.7
053031 STAS-19217T 689.1 587.5 115.8 34.0
056213 STAS-1927/5T 673.1 152.4 93.7 19.8/16.0
Note: 1. SV style include stainless steel bolts and access valve

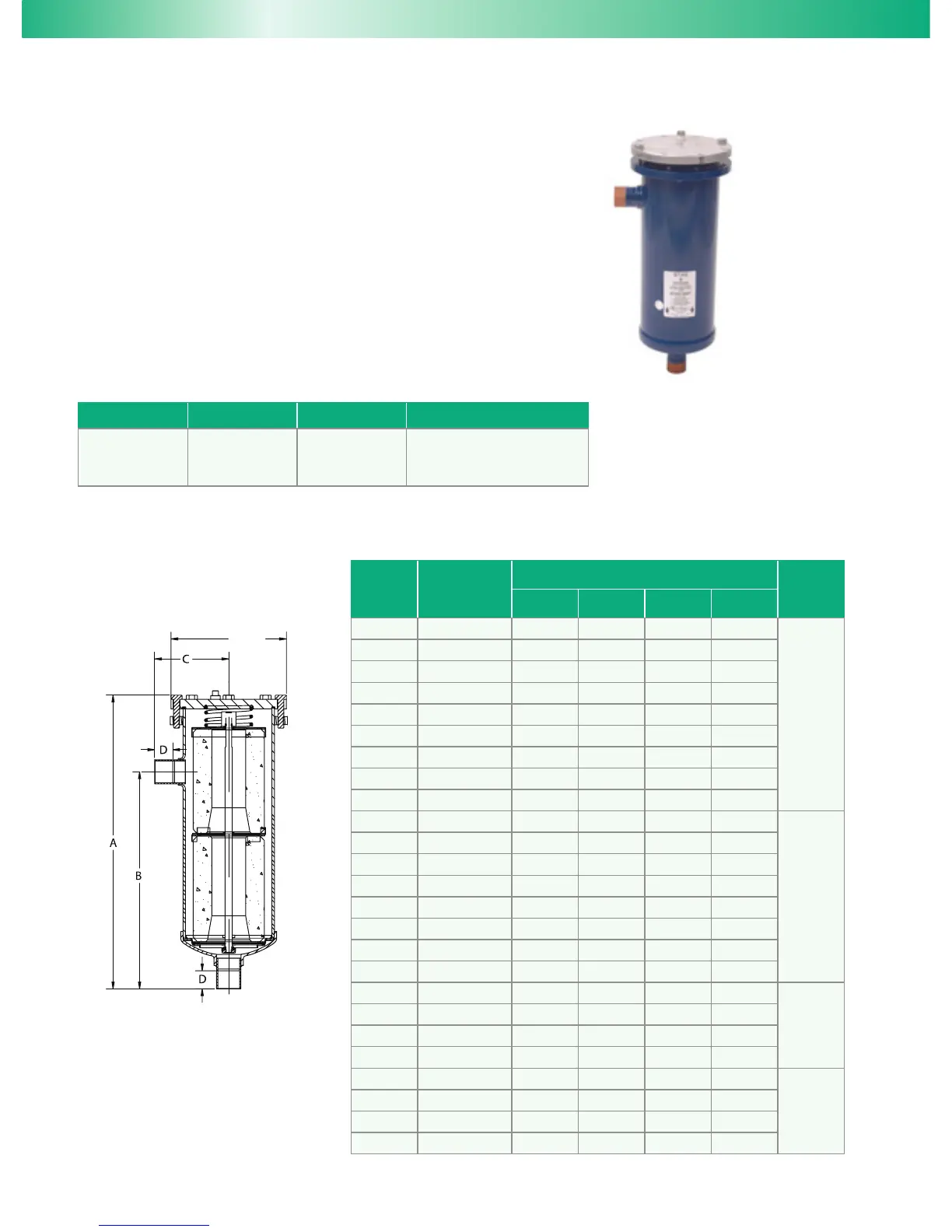

The STAS is a replaceable core Filter Drier for CFC, HCFC, and HFC
refrigerants for use in large commercial air conditioning and
refrigeration systems.
Features
• Slotted cover/unique internal hardware for hassle-free installation
• Full ow ttings for low pressure drop
• Corrosion resistant epoxy powder paint nish
• Sturdy steel shells for long life
• Solid copper connections
• 100 mesh outlet screen
• Filtration (with core): 40 microns
• Maximum working pressure: SV version= 34.5 bar T version = 47 bar
• UL/CUL le number: SA7175
Ordering Information And Dimensional Data (mm):
Nomenclature:
STAS 48 9 T
Steel
Take-Apart
Series
Unit Size
(in
3
)
Connection Size
(in 1/8")
System Service
T = Liquid Line Service
SV = Suction Line Service
STAS Steel Liquid and Suction Line Filter Drier
STAS Series
