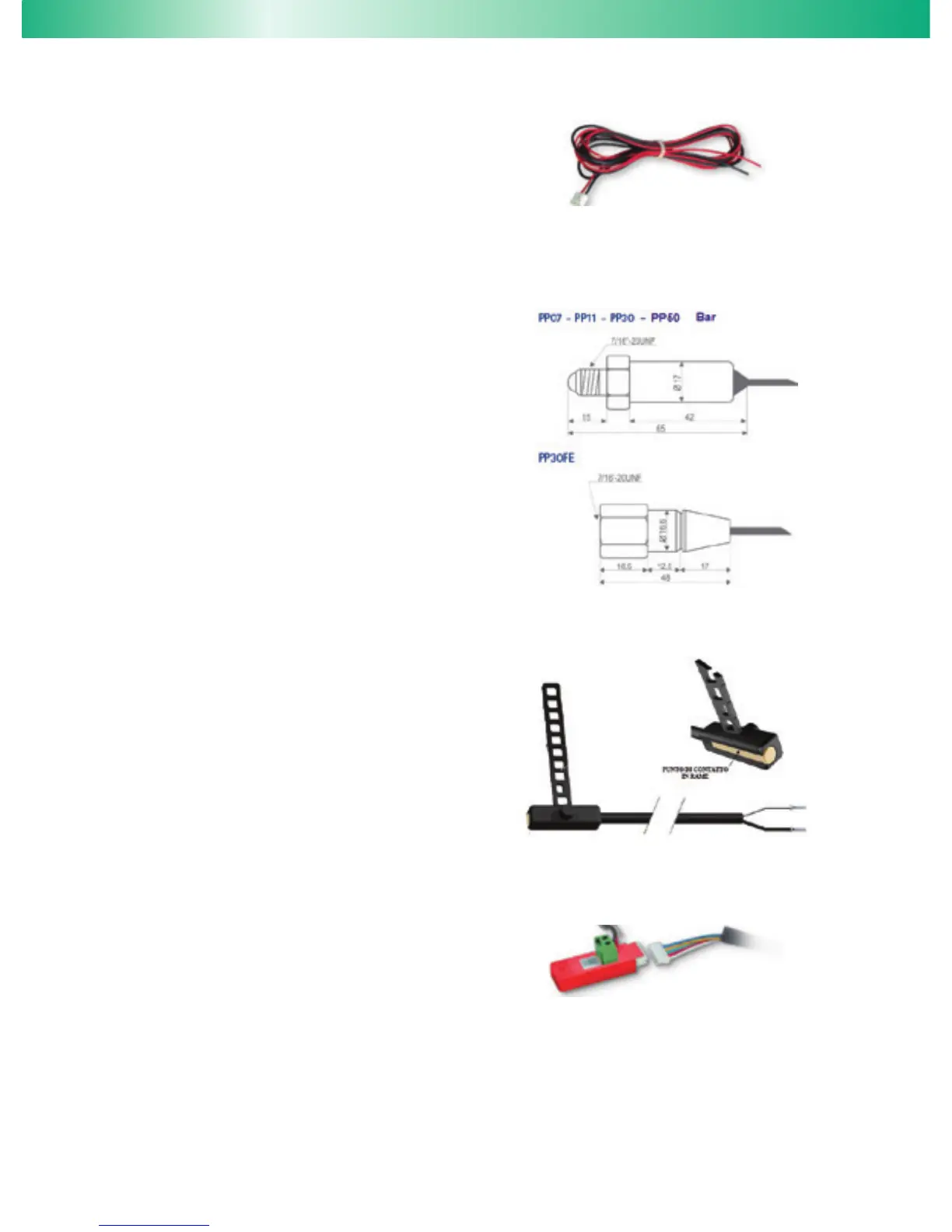

• NP4-67: pipe mounting temperature probe
The NP4-67 temperature probe can be used on the discharge line to
monitor the discharge temperature of the Digital Scroll compressor.
NP4-67 1.5MT NTC probe Measurement range: -40+110°C, Cable 1,5mt
Code BN609001 52
• CABCJ15 or CABCJ30: 2 PIN connectors
NOTE:
Use the connection cable CABCJ15 (1.5m lenght) or the CABCJ30 (3.0m
lenght) for the:
• HP digital input (25-26),
• i2F congurable digital input (27- 28),
• 0-10Vdc or 4-20mA analogue output (23-24)
• oA6, 12Vdc/40mA digital output (21- 22) :
• PP07, PP11, PP30 PP50: 4–20mA pressure transducers
• XJ485CX: TTL / RS485 serial converter
The XJ485CX is a TTL/RS485 external converter. Insert it into the TTL
receptacle to convert the TTL output into a RS485 (+) and (-) signal for
the monitoring system MODBUS_RTU compatible. (XWEB).
PP07 2,0MT -0.5 + 7bar rel FE
cod BE009302 00
PP11 2,0MT -0.5 + 11bar rel FE
cod BE009302 07
PP30 2,0MT 0 + 307bar rel FE
cod BE009302 04
PP50 2,0MT 0 + 507bar rel Male
cod BE009002 07
