Emerson FB1200 Termination Board Field Replacement Guide

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
11
Removing/Replacing Pluggable Terminal Blocks
UL Listed Terminal Block Field Installed Accessory Kit for Use in Class I, Division 1,
Groups C, D; Class I, Division 2, Groups A, B, C, D

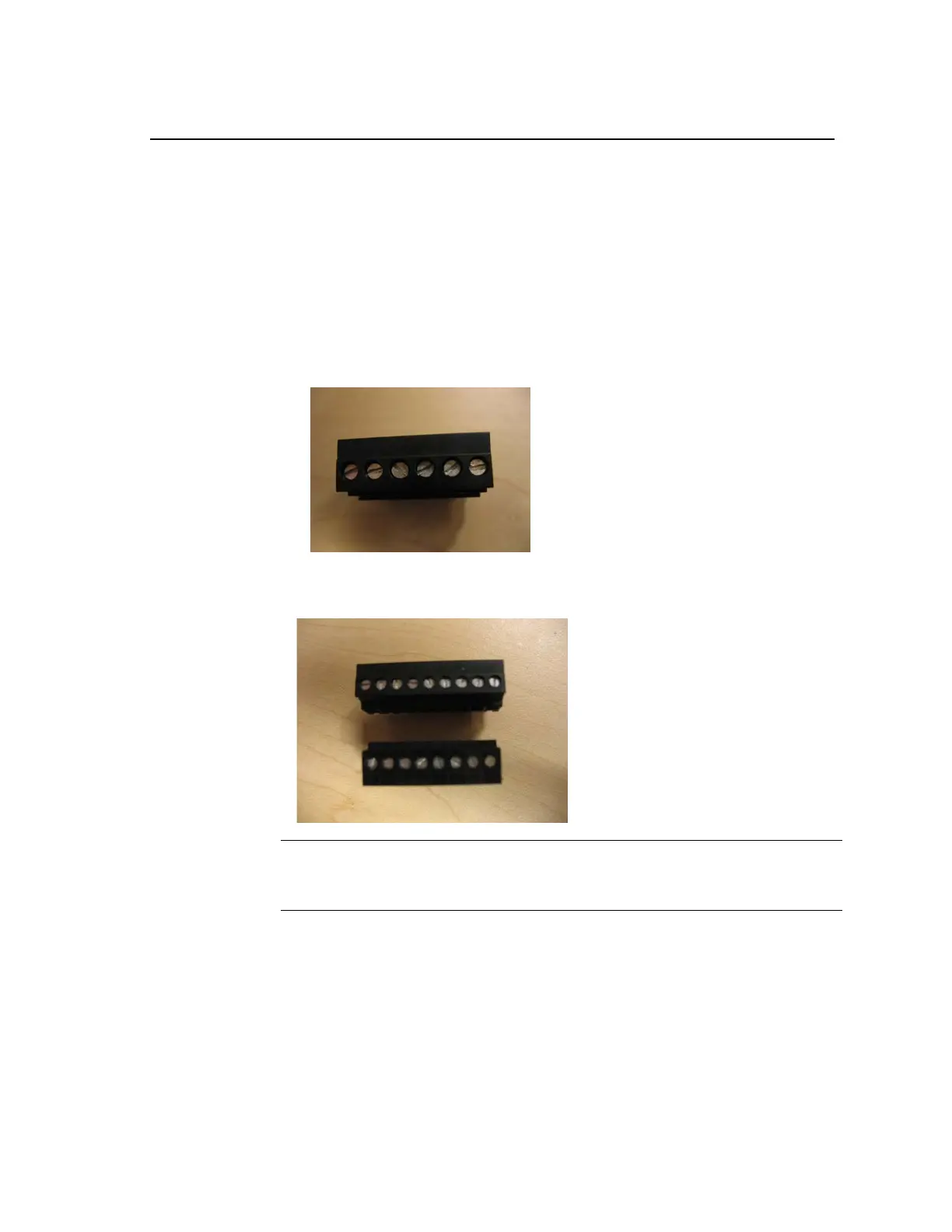

 Flow Computer 6-connector pluggable terminal block Field Installed Accessory
Kit Part No. 395791014-KIT for use with UL Listed Model Series FB1100.
 Flow Computer 8-connector pluggable terminal block Field Installed Accessory
Kit Part No. 395803000-KIT for use with UL Listed Model Series FB1200.
If one or more terminal blocks becomes damaged, you may need to replace them.
•
For 6-connector terminal blocks you need a 1/8 inch flat head screwdriver.
•
For 8-connector (or 9-connector) terminal blocks you need a 3/32 inch flat head
screwdriver.
Tip
If you have more than one terminal block to replace, we recommend you replace
one terminal block at a time to avoid confusion.
