Emerson FB1200 Termination Board Field Replacement Guide

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
5
Removing/Replacing the Termination Board
UL Listed Termination board Field Installed Accessory Kit for Use in Class I, Division 1,
Groups C, D; Class I, Division 2, Groups A, B, C, D
 Flow Computer Termination Board Field Installed Accessory Kit Part No. 399185-01-1
for use with UL Listed Model Series FB1100.
 Flow Computer Termination Board Field Installed Accessory Kit Part No. 400216010-
KIT for use with UL Listed Model Series FB1200.
To replace the termination board, you first need to remove the battery enclosure/HMI
module assembly to gain access to the termination board screws on the inside of the
flow computer.

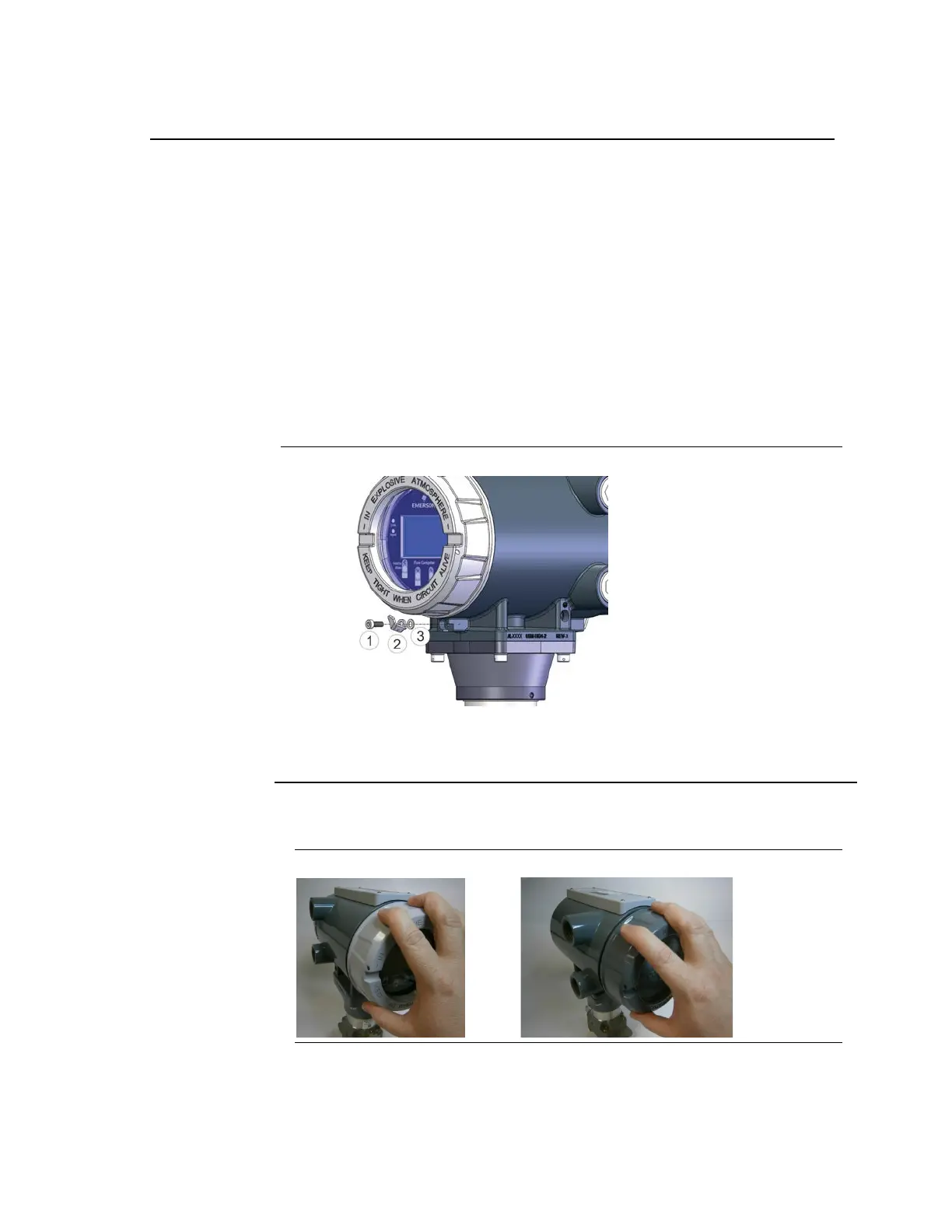

1. Remove the front and rear end caps. Remove the retaining clamps on the end caps
(if present) using a 3 mm hexagonal wrench.
Components of Retaining Clamp Assembly
1
Screw
2
Retaining Clamp
3
Washer
2. Grasp the end cap.
Front End Cap Rear End Cap
