Instruction Manual
D200126X012
2502 Controllers
June 2017
7

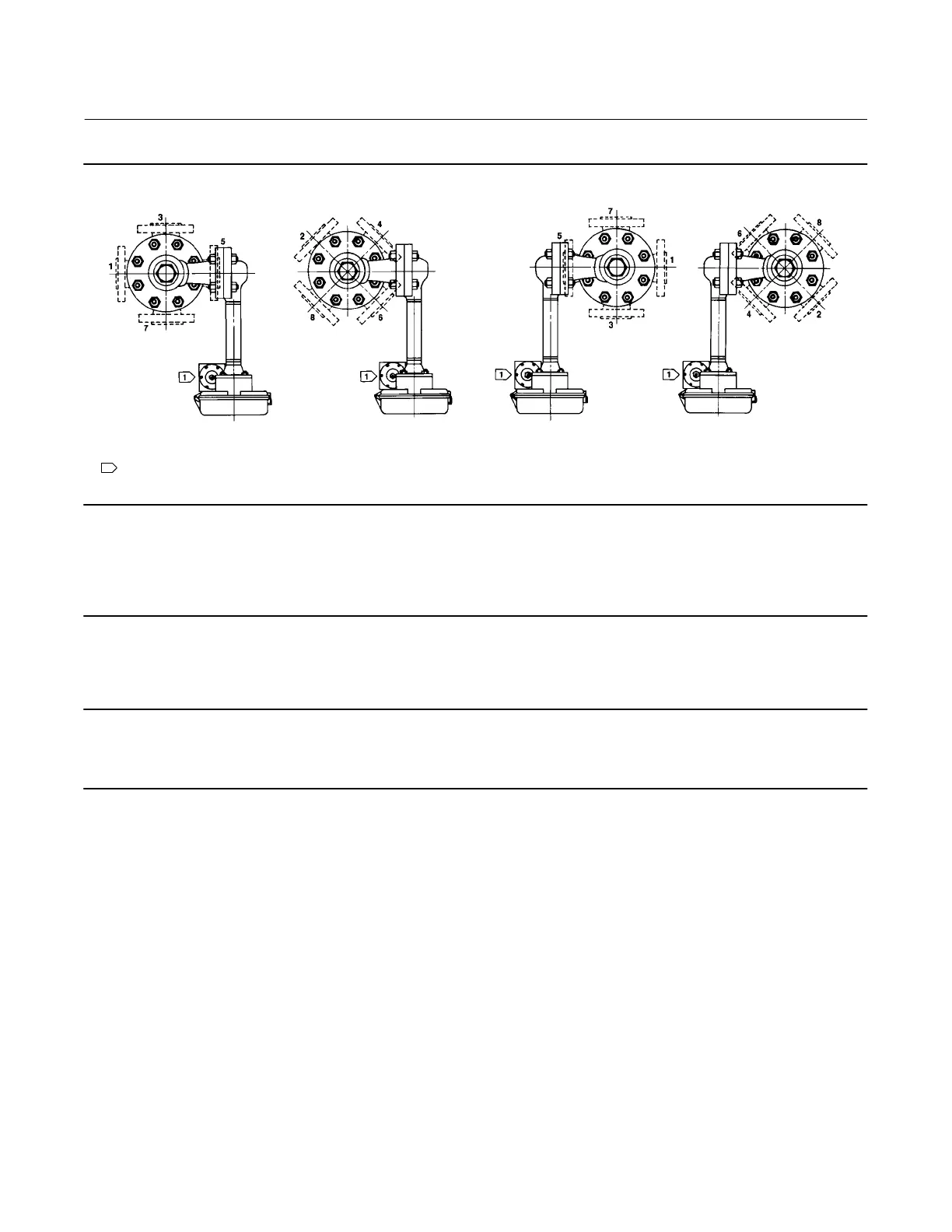

Figure 4. Cage Head Mounting Positions
RIGHT‐HAND MOUNTING
LEFT‐HAND MOUNTING
1 67CFR FILTER/REGULATOR.
AH9150-A
A2613-2
Mounting Caged Sensor
Note
The cage must be installed plumb so that the displacer does not touch the cage wall. Should the displacer touch the cage wall, the
unit will transmit an erroneous output signal.
Note
If the controller is not mounted on the sensor, refer to the Installing Controller on Sensor section. This section also provides
instructions for adding a heat insulator to a unit.
Cage connections will normally be either NPS 1‐1/2 or 2 screwed or flanged. Figure 5 shows the combinations. With
flanged connections, use standard gaskets or other flat‐sheet gaskets compatible with the process liquid. Spiral wound
gaskets without compression‐controlling centering rings cannot be used for flanged connections.
