MAS2600: Ordering Information Reference Manual
August 2023 RM 6000-01-001-24
23

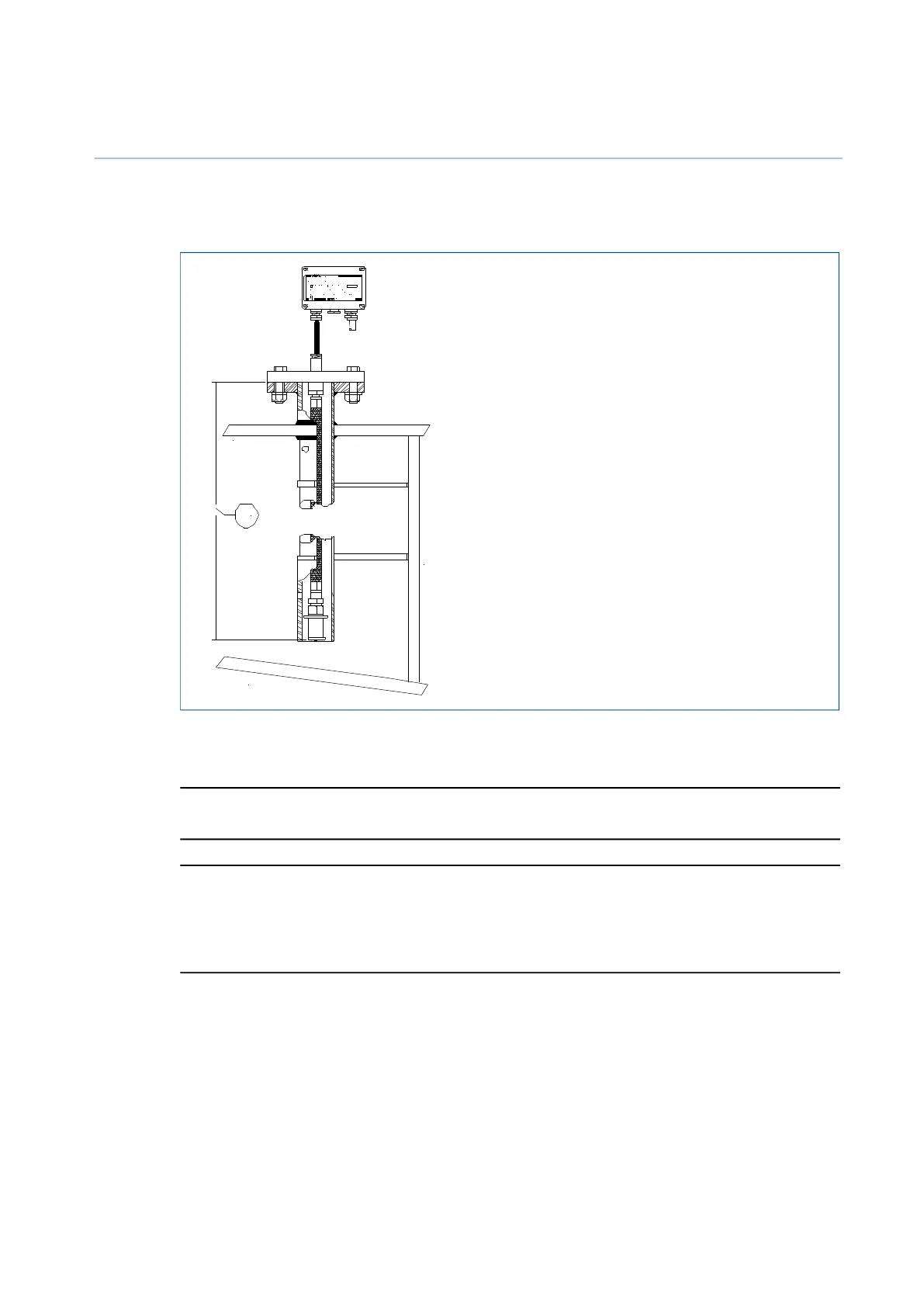

Flexible PTFE Tube Mounting (dwg no. P022P021)
A top flange made of ASTM 316L connected to a Stainless Steel braided PTFE tube by fit-
tings fixed to the tube by using special tools. A fitting in the opposite tube end is fixed to
the transducer by means of nut and ferrules. Minimum hose bending radius is 130 mm.
Note! When ordering this mounting type always specify the length for the measure-
ment of H (see picture above).
Note! This mounting type can only be assembled by Marine Tank Management because
it requires special tools. The customer can exchange the MAS 2600 transmitter by
ordering a G022B085 and a G022B082 together with the new MAS 2600 trans-
ducer. It must clearly be specified that it is a replacement for an MAS 2600 XXX-
XX-P/XX.
Ta nk b ot to m
H
Bulkhead
Lint = 20 uH
CERTIFICATE REF.:
4-20 mA
Tank top
x
S/N:
MARINE AUTOMATION DENMARK
Umax = 33 V
90-C .95948
TWO WIRE TRANSMITTER
Cint = 10 nF
X
EE
i
a
T5C
2600 SERIES
I 45 mA
amb.: -40 to +85 °C
<=K
T
2600
