IQ8 / IQ8+ / IQ8M / IQ8A / IQ8H Micro Installation and Operation
16 © 2022 Enphase Energy Inc. All rights reserved. Mar 2022

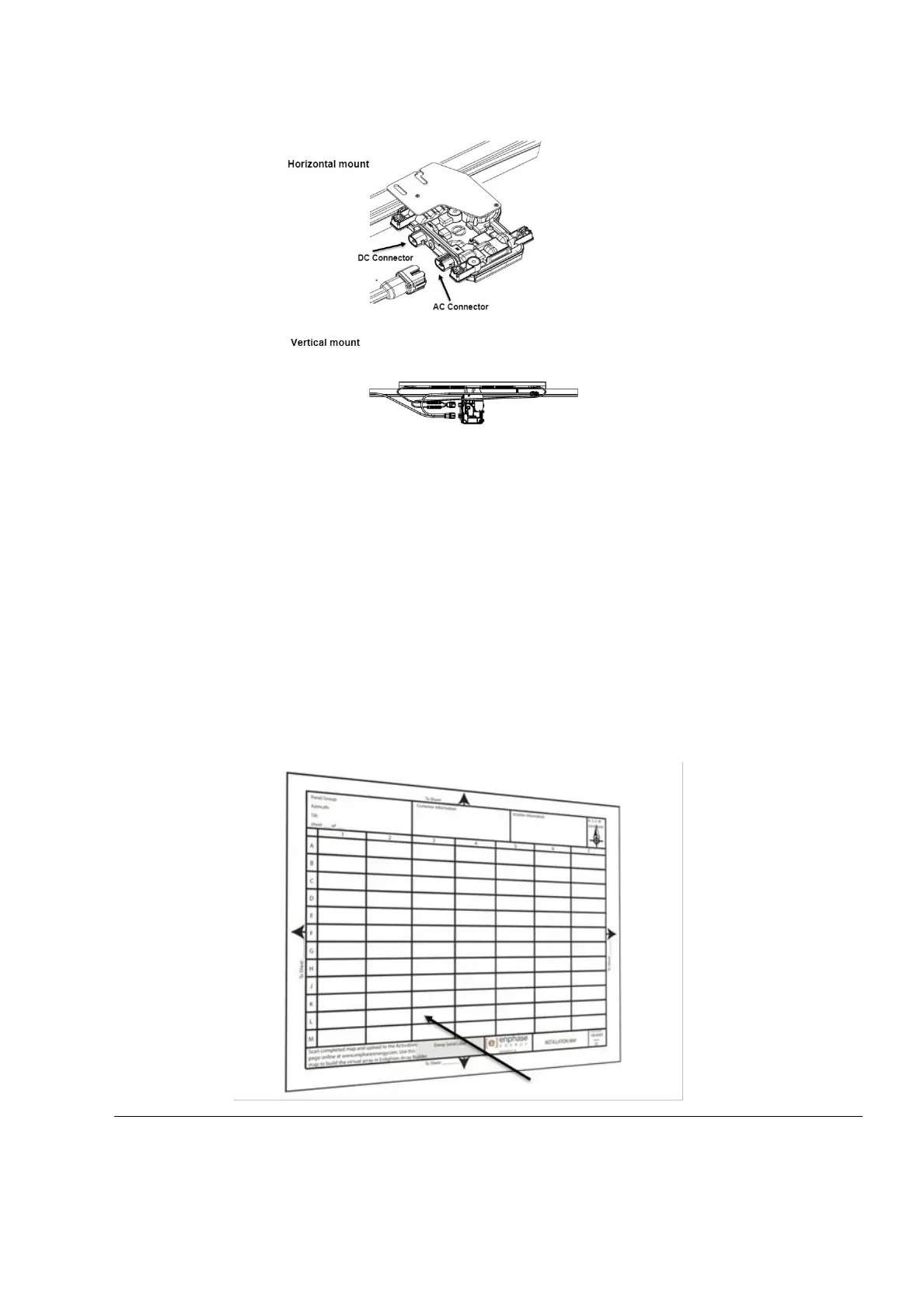

Step 4: Create an Installation Map
The Enphase Installation Map is a diagram of the physical location of each microinverter in your PV installation. Copy or
use the blank map on page 46 to record microinverter placement for the system or provide your own layout if you
require a larger or more intricate installation map.
Each Enphase Microinverter, IQ Gateway, and IQ Battery have a removable serial number label. Build the installation
map by peeling the serial number labels from the microinverter mounting plates and placing the labels on the map. You
will also place the Enphase IQ Gateway and IQ Battery serial number on the map after installation.
After you have created the installation map, use the Enphase Installer App mobile app to record serial numbers and
configure the system.
For details, refer to “Detect the Microinverters” in the help topics of the Enphase Installer app.
A. Peel the removable serial number label from each microinverter and affix it to the respective location on the
paper installation map.
B. Peel the label from the IQ Gateway and any Enphase IQ Battery, if installed) and affix it to the installation map.
C. Always keep a copy of the installation map for your records.
