Epson EB-X14 User Manual

All of the features in this guide are explained using illustrations of EB-W12
unless otherwise mentioned.

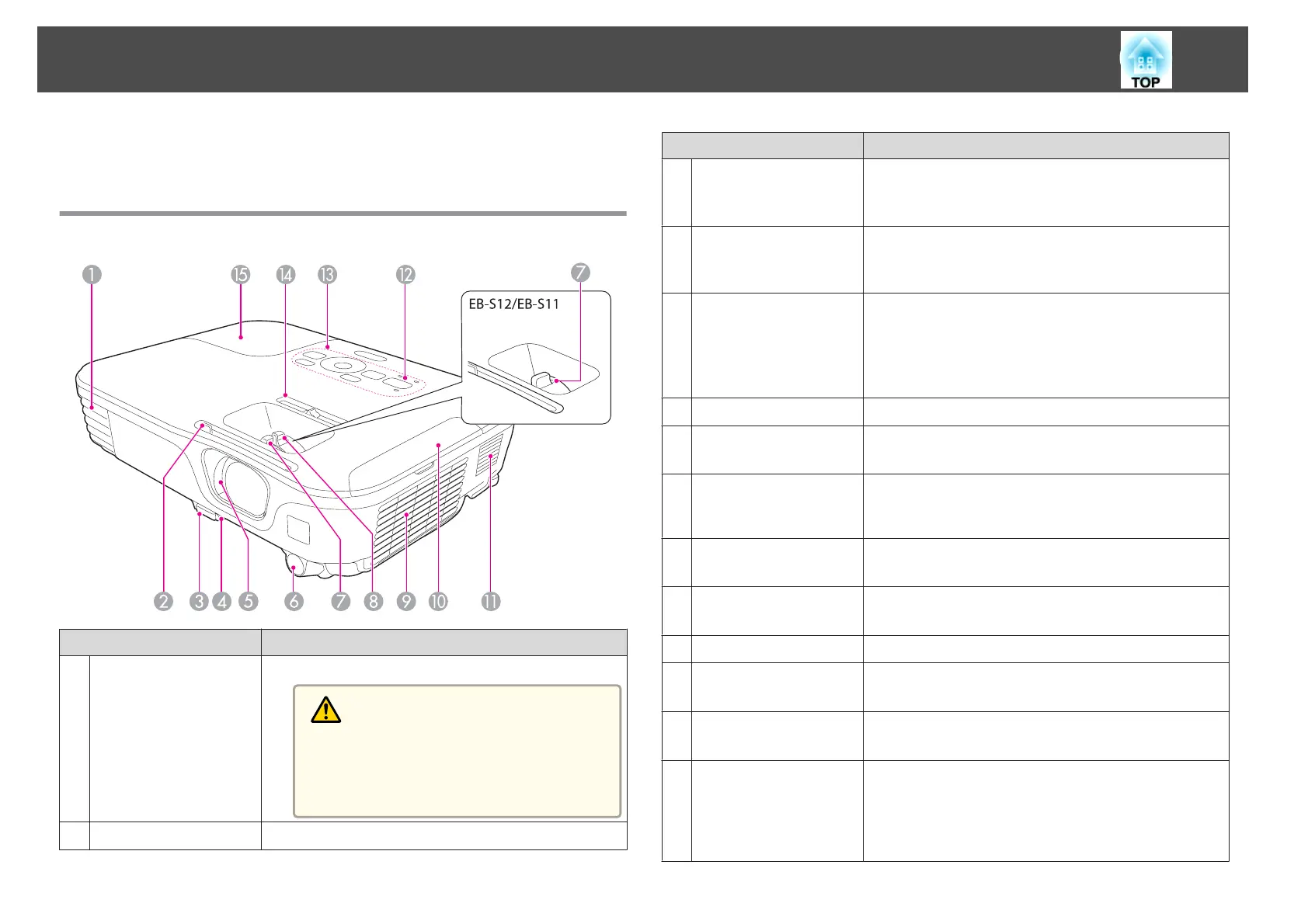

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent.
B
A/V mute slide knob
Slide the knob to open and close the A/V mute slide.
Name Function
C
Foot adjust lever
Press the foot adjust lever to extend and retract the front
adjustable foot.
s "Adjusting the Image Position" p.40
D
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.40
E
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.52
F
Remote receiver
Receives signals from the remote control.
G
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.41
H
Zoom ring
(EB-X14/EB-W12/EB-
X12/EB-X11 only)
Adjusts the image size.
s "Adjusting the Image Size" p.40
I
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.89
J
Air filter cover
Opens and closes the air filter cover.
s "Replacing the Air Filter" p.94
K
Speaker
Outputs audio.
L
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.76
M
Control panel
Operates the projector.
s "Base" p.13
N
Horizontal keystone
adjuster
(EB-X14/EB-W12/EB-
X12/EB-S12/EB-X11
only)
Corrects horizontal distortion in the projected image.
s "Correcting manually" p.37
Part Names and Functions
10

Epson EB-X14 Specifications

General

Native aspect ratio	4:3
Projection distance	1.1 - 10.8 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	±30 °
Projector brightness (economic mode)	2400 ANSI lumens
Focus	Manual
Throw ratio	1.48 - 1.77:1
Focal length range	17 - 20 mm
Lamp type	E-TORL
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
AC (power) in	Yes
Audio (L/R) in	-
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
RMS rated power	2 W
Noise level	37 dB
Preset modes	Dynamic, Presentation, sRGB, Vivid photo
Country of origin	China
Noise level (economic mode)	29 dB
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3964 g
