Projector Parts and Functions
11
Name Function
I
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
J
Power inlet Connects the power cord to the projector.
K
Side cover A Open to access the interface ports and focus lever.
The side cover can be divided into two parts; side cover
A and side cover B. This allows you to use just side
cover A if necessary, such as when you want to connect
a streaming media player.
L
Side cover B
gg Related Links
• "Air Filter and Vent Maintenance" p.90
• "Projector Indicator Status" p.96
• "Turning On the Projector" p.35
• "Cleaning the Obstacle Sensor and Motion Sensor" p.88
• "Cleaning the Projection Window" p.87
• "Focusing the Image Using the Focus Lever" p.40
• "Installing a Security Cable" p.71
• "Attaching and Removing the Side Cover" p.29

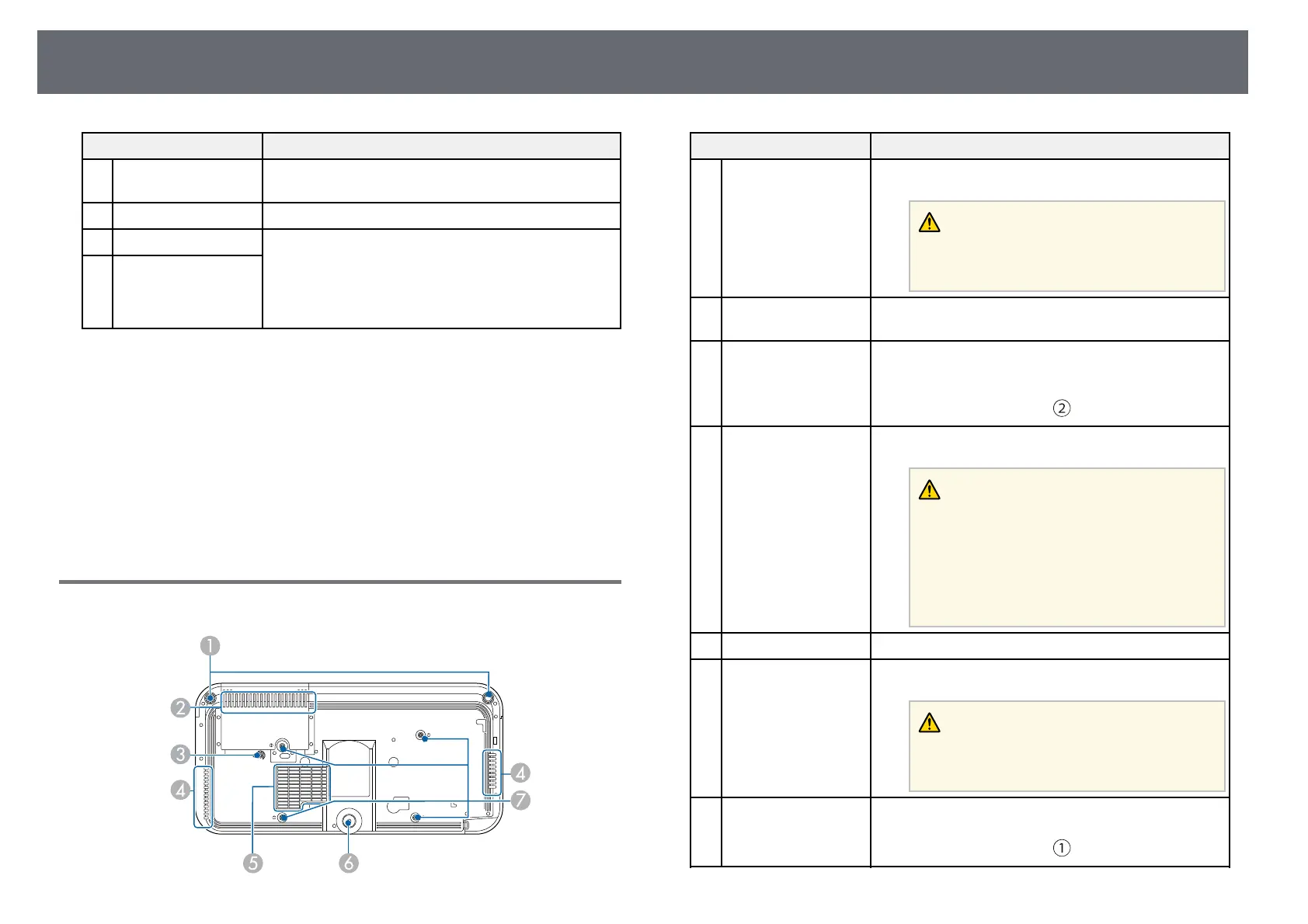

Projector Parts - Base
Name Function
A
Front adjustable feet When the projector is setup on a surface such as a desk,
turn the feet to correct image distortion.
Caution
Remove all feet when you install the projector
on the ceiling.
B
Air intake vent (air
filter)
Takes in air to cool the projector internally.
C
Wire clamp fixing
point
When you use the optional ceiling mount, fix the
carabiner here to attach the safety wire and prevent the
projector from falling from the ceiling.
This point is marked with a on the projector.
D
Air exhaust vent Exhaust vent for air used to cool the projector
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
E
Air intake vent Takes in air to cool the projector internally.
F
Rear adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
Caution
Remove all feet when you install the projector
on the ceiling.
G
Ceiling mount fixing
points (four points)
Attach the optional ceiling mount here when
suspending the projector from a ceiling.
This point is marked with a on the projector.

Epson EH-LS800B Specifications

General

Heat dissipation	1.139 BTU/h
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	80 - 150 \
Projection distance (wide)	0.3 - 0.5 m
Projector native resolution	4K+ (5120x3200)
Focus	Manual
Throw ratio	0, 16 - 0, 40:1
Zoom capability	Yes
Fixed focal length	2.3 mm
Light source type	Laser
Service life of light source	20000 h
Noise level	32 dB
Noise level (economic mode)	19 dB
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
HDMI version	2.3
USB 2.0 ports quantity	4
USB 2.0 Type-A ports quantity	3
USB 2.0 Type-B ports quantity	1
3D	No
Video color modes	Cinema, Dynamic, Natural, Vivid
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	350 W
Power consumption (economy mode)	217 W
Placement	Ceiling, Desktop, TV cabinet
Product type	Ultra short throw projector
Product color	Black
Market positioning	Home cinema
Cable lock slot type	Kensington
Warranty period	5 year(s)
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Weight and Dimensions

Depth	341 mm
Width	695 mm
Height	156 mm
Weight	12300 g
