EMP-S1 User’s Guide
Connecting to Video Equipment
Projecting video images

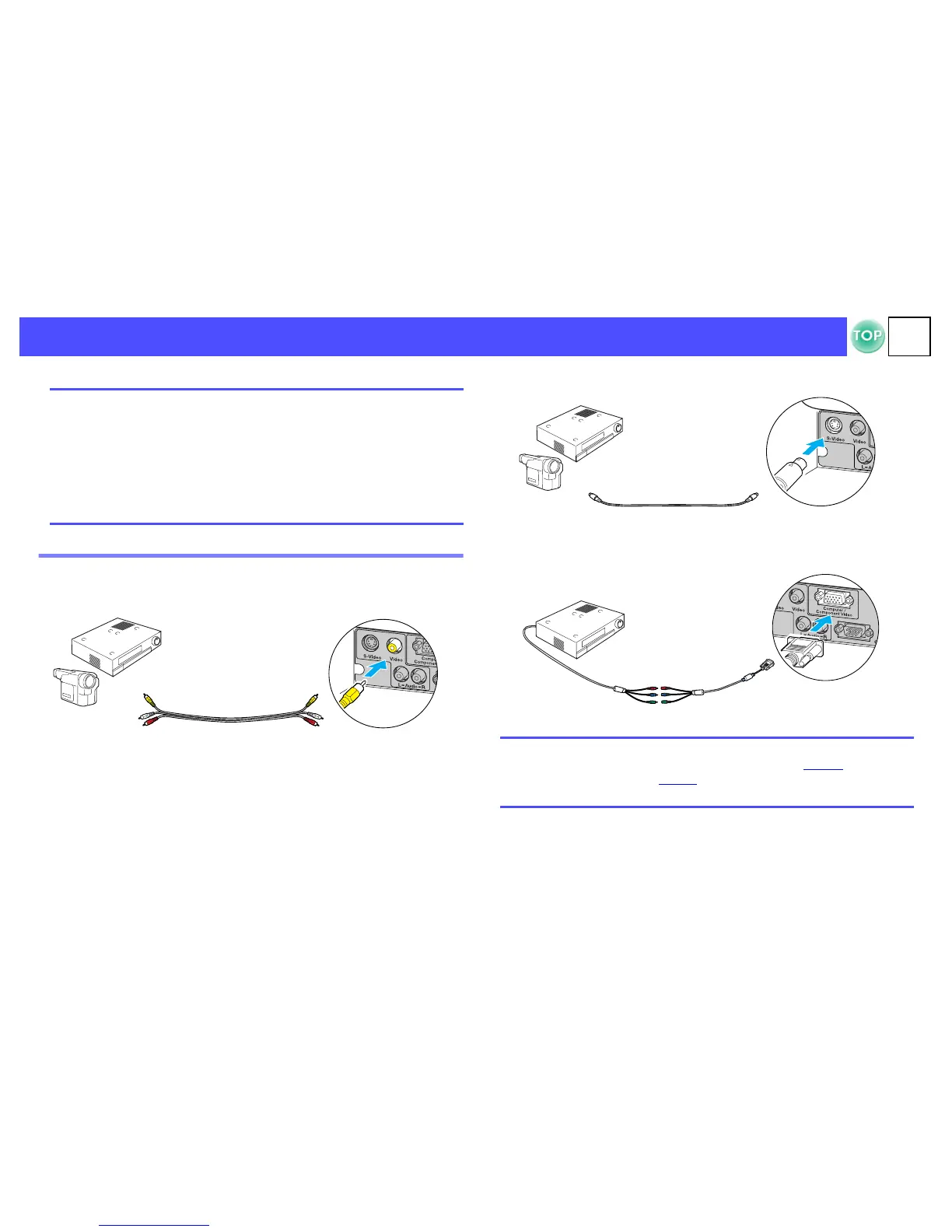

f For Composite Video (DVD, VHS, Video games)
f For S-Video (DVD, S-VHS, Video games)
f For Component Video (DVD, Video games)
c
When connecting, be sure to:
• Turn off the power for both the projector and the video
equipment.
Damage may result if you try to make a connection when the
power is switched on.
• Check the connector types.
Damage may result if you attempt to insert a connector into the
incorrect port.
To video
out port
AV cable (yellow)
(commercially available)
To Video port
p
After projection starts, change the "Input Signal" setting in the
"Image" menu to either "Component Video (YCbCr
g
)" or
"Component Video (YPbPr
g
)" to match the signals from the
video equipment. s P. 3 5
To S-Video out port
S-Video cable
(commercially available)
To S-Video port
From component
video out port
Component video cable
(optional)
To Computer/
Component Video port
