Epson EX7210 User Manual

Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
When you turn on automatic keystone correction in your projector's Settings menu, your projector
automatically corrects vertical keystone effects when you reposition the projector.
Correcting Image Shape with the Keystone Buttons
Correcting Image Shape with the Horizontal Keystone Slider
Correcting Image Shape with Quick Corner
Parent topic: Using Basic Projector Features
Correcting Image Shape with the Keystone Buttons
You can use the projector's keystone correction buttons to correct the shape of an image that is
unevenly rectangular on the sides.
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

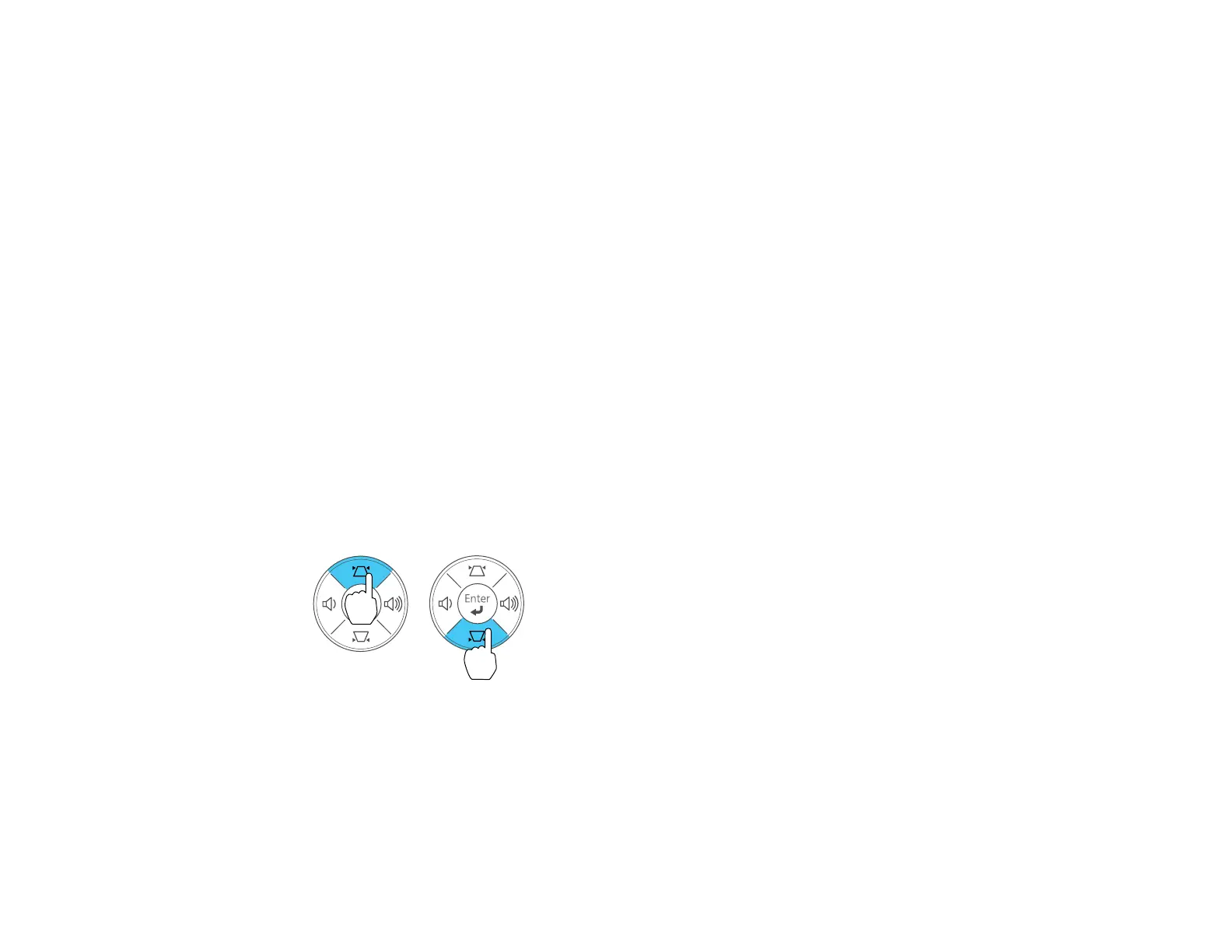

2. Press one of these keystone buttons on the control panel to display the Keystone adjustment
screen.
44

Epson EX7210 Specifications

Projection Specifications

projection_system	3LCD, 3-chip technology
projection_method	Front/rear/ceiling mount
native_resolution	1280 x 800 (WXGA)

Light and Lamp

color_light_output	2800 lumens
white_light_output	2800 lumens
lamp_type	200 W UHE

Power

power_supply_voltage	100 – 240 V ±10%, 50/60 Hz
power_consumption_eco_mode	234 W
power_consumption_normal_mode	283 W

Operating Environment

operating_temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan_noise_eco_mode	29 dB
fan_noise_normal_mode	37 dB

Lens

f_number	1.58 - 1.72
focal_length	16.9 mm – 20.28 mm
zoom_ratio	Digital zoom 1.0 – 1.2

Weight and Dimensions

dimensions_excluding_feet	11.6" x 9.0" x 3.0"
dimensions_including_feet	11.6" x 9.0" x 3.1"
weight	5.1 lb
