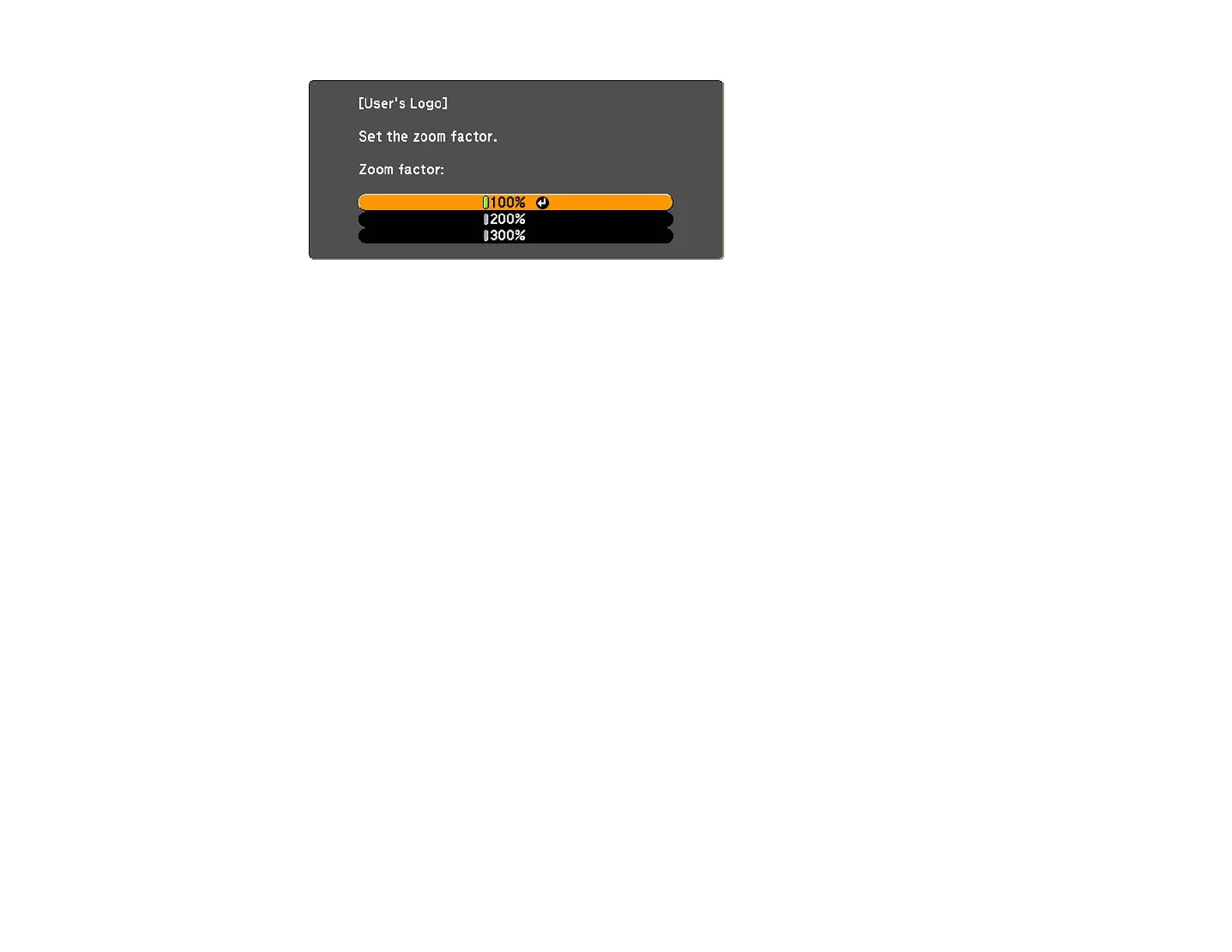

7. Select a zoom percentage and press Enter.
You see a prompt asking if you want to save the image as the User's Logo.
8. Select Yes and press Enter.
Note: It takes a few moments for the projector to save the image; do not use the projector, its remote
control, or any connected equipment until it is finished.
You see a completion message.
9. Press Esc to exit the message screen.
10. Select the Extended menu and press Enter.
11. Select Display and press Enter.
12. Select when you want to display the User's Logo screen:
• To display it whenever there is no input signal, select Display Background and set it to Logo.
• To display it whenever you turn the projector on, select Startup Screen and set it to On.
• To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.
To prevent anyone from changing the User's Logo settings without first entering a password, set a
password and enable User's Logo security.
Parent topic: Password Security Types
Locking the Projector's Buttons
You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You
can lock all the buttons or all the buttons except the power button.
72

Epson EX7210 Specifications

Projection Specifications

projection_system	3LCD, 3-chip technology
projection_method	Front/rear/ceiling mount
native_resolution	1280 x 800 (WXGA)

Light and Lamp

color_light_output	2800 lumens
white_light_output	2800 lumens
lamp_type	200 W UHE

Power

power_supply_voltage	100 – 240 V ±10%, 50/60 Hz
power_consumption_eco_mode	234 W
power_consumption_normal_mode	283 W

Operating Environment

operating_temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan_noise_eco_mode	29 dB
fan_noise_normal_mode	37 dB

Lens

f_number	1.58 - 1.72
focal_length	16.9 mm – 20.28 mm
zoom_ratio	Digital zoom 1.0 – 1.2

Weight and Dimensions

dimensions_excluding_feet	11.6" x 9.0" x 3.0"
dimensions_including_feet	11.6" x 9.0" x 3.1"
weight	5.1 lb
