Disassembly/Reassembly Overview 10
L200/L201/L100/L101 Revision A
1.1.2 Checks and precautions before disassembling
Ink may spill when removing the following parts from L200/L201/L100/L101.
This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing
the parts.
 The parts that may cause ink spill when removing
Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See “ 1.2 Disassembly/Reassembly Procedures
(p14)”.)

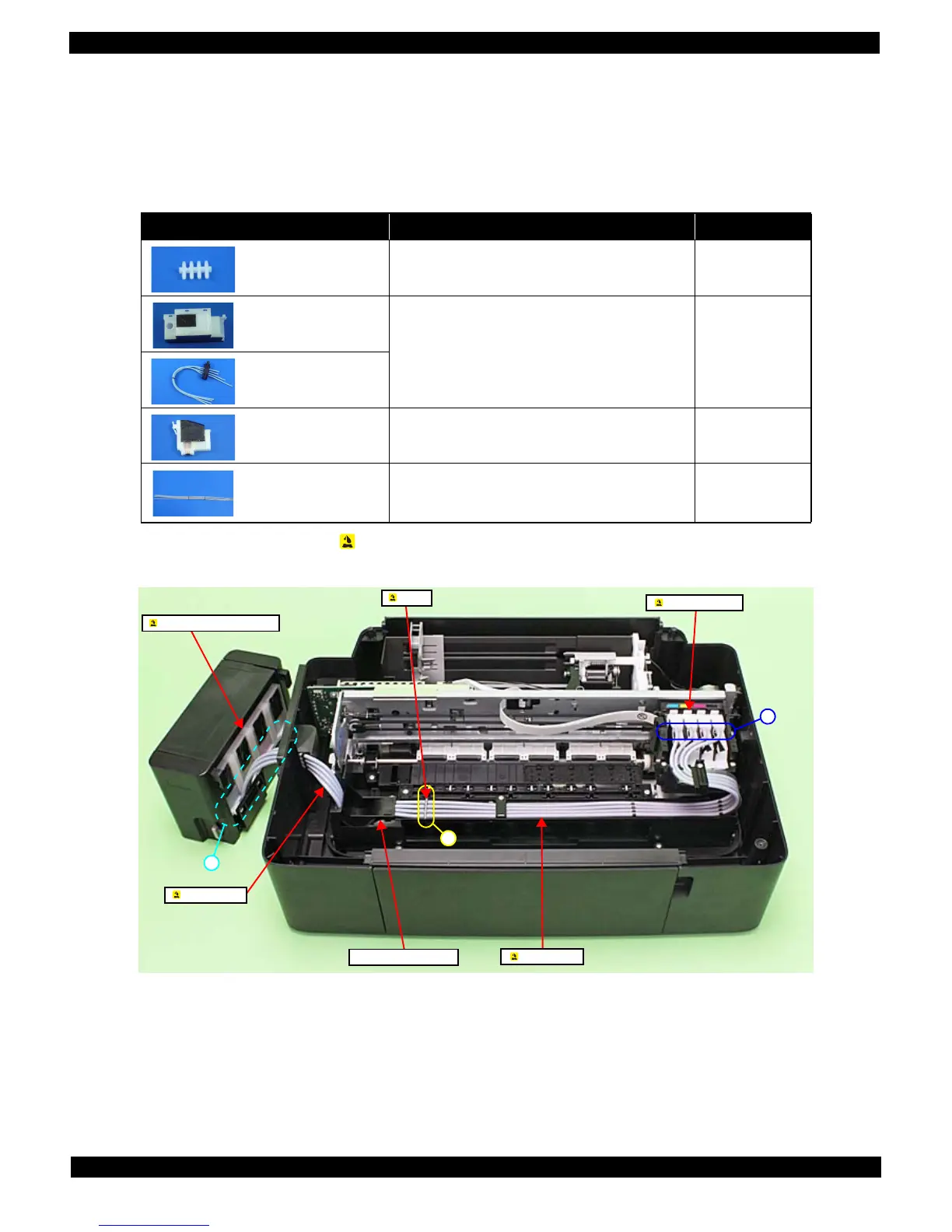

Figure 1-1. Location
Parts When ink may spill Location
Joint Removing the tubes of the Valve Assy / Tube Assy
from the Joint
A
Ink Supply Tank Assy Removing the tubes of the Valve Assy from the Joint
Removing the tubes of the Valve Assy from the Ink
Supply Tank Assy
A, B
Valve Assy
Adapter Assy Removing the Tube Assy from the Adapter Assy
C
Tube Assy Removing the tubes of the Valve Assy / Tube Assy
from the Joint
Removing the Tube Assy from the Adapter Assy
A, C
Ink Tube Guide 1st
A
C
B
Joint
Ink Supply Tank Assy
Valve Assy
Tube Assy
Adapter Assy
