Disassembly/Reassembly Overview 25
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series
Revision A
2.1.5 Checks and Precautions before Disassembling
2.1.5.1 Factors which Affect the Print Quality
HOW TO PLACE THE INK TANK ASSY WHEN DISASSEMBLING/REASSEMBLING
Do not place the Ink Supply Tank Assy with Ventilation Hole side down. Otherwise, ink in the Ink Supply Tank
Assy may reach and cover the ventilation Hole, and the ink in the Ink Supply Tank Assy may leak.
In order to prevent this from occurring, make sure to place the Ink Supply Tank Assy as shown below after
removing it.

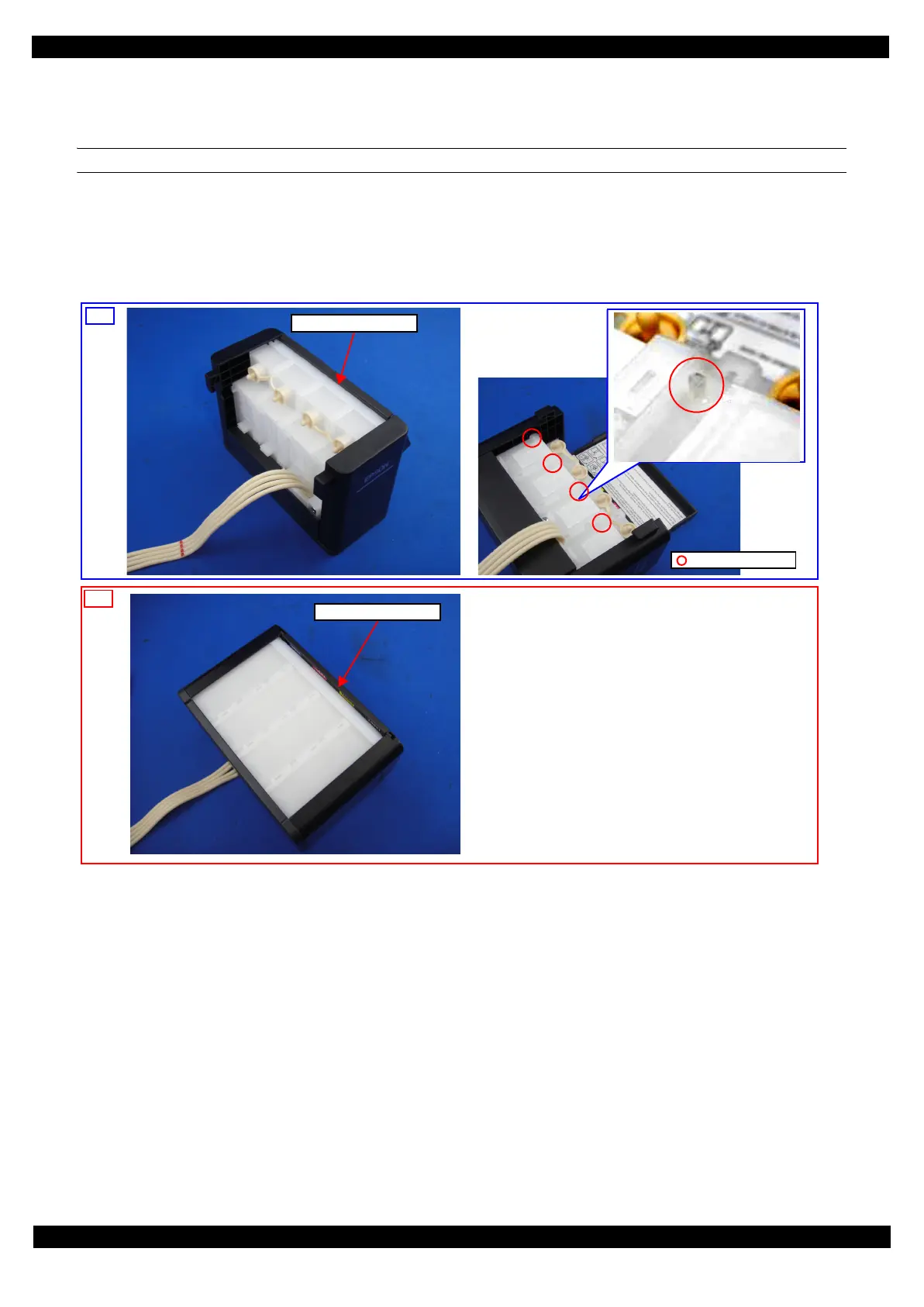

Figure 2-8. How to Place the Ink Tank Assy
Ink Supply Tank Assy
Ventilation Hole
Ink Supply Tank Assy
OK
NG
