Confidential
Appendix Protection for Transportation 78
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series
Revision A
5.3.3 Securing the Ink Supply Tank Assy/Top Cover
Purpose
To prevent damage on the Ink Supply Tank Assy/Top Cover from shock during transportation.
Risks if it is not performed
Damage on the Ink Supply Tank Assy/Top Cover.
Preparation
Ink Supply Tank Assy
Prepare a piece of strong tape (length: 160 mm, width: 22 mm, fold one end 5 mm).
Top Cover
Prepare two pieces of strong tape (length: 65 mm, width: 22 mm, fold one end 5 mm).
Method
Ink Supply Tank Assy
Attach strong tape along the shapes of the Tank Assy as shown in Fig.5-5 to Secure the Frame Base and Ink Supply
Tank Assy with strong tape .
Top Cover
Attach strong tape along the shapes of the Tank Assy as shown in Fig.5-5 to Secure the Ink Supply Tank Assy and
Top Cover with strong tape (x2).

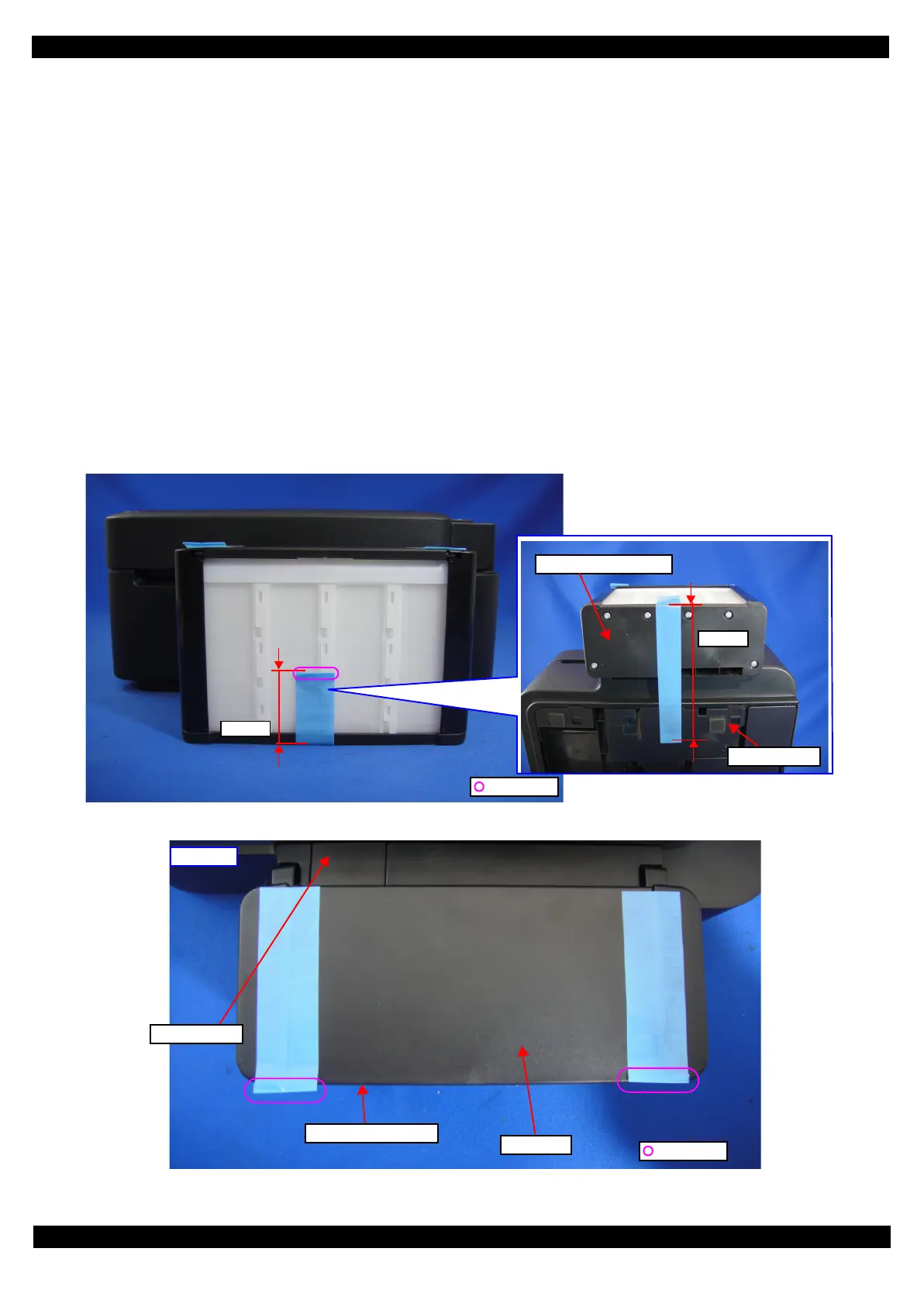

Figure 5-5. Securing the Ink Supply Tank Assy
Figure 5-6. Securing the Top Cover
140mm
Frame Base
Ink Supply Tank Assy
20mm
Folded ends
Right side
Top Cover
Housing Righr
Ink Supply Tank Assy
Folded ends
