Epson VS230 User Guide

Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
When you turn on automatic keystone correction in your projector's Settings menu, your projector
automatically corrects vertical keystone effects when you reposition the projector.
Correcting Image Shape with the Horizontal Keystone Slider
Correcting Image Shape with the Keystone Buttons
Correcting Image Shape with Quick Corner
Parent topic: Using Basic Projector Features

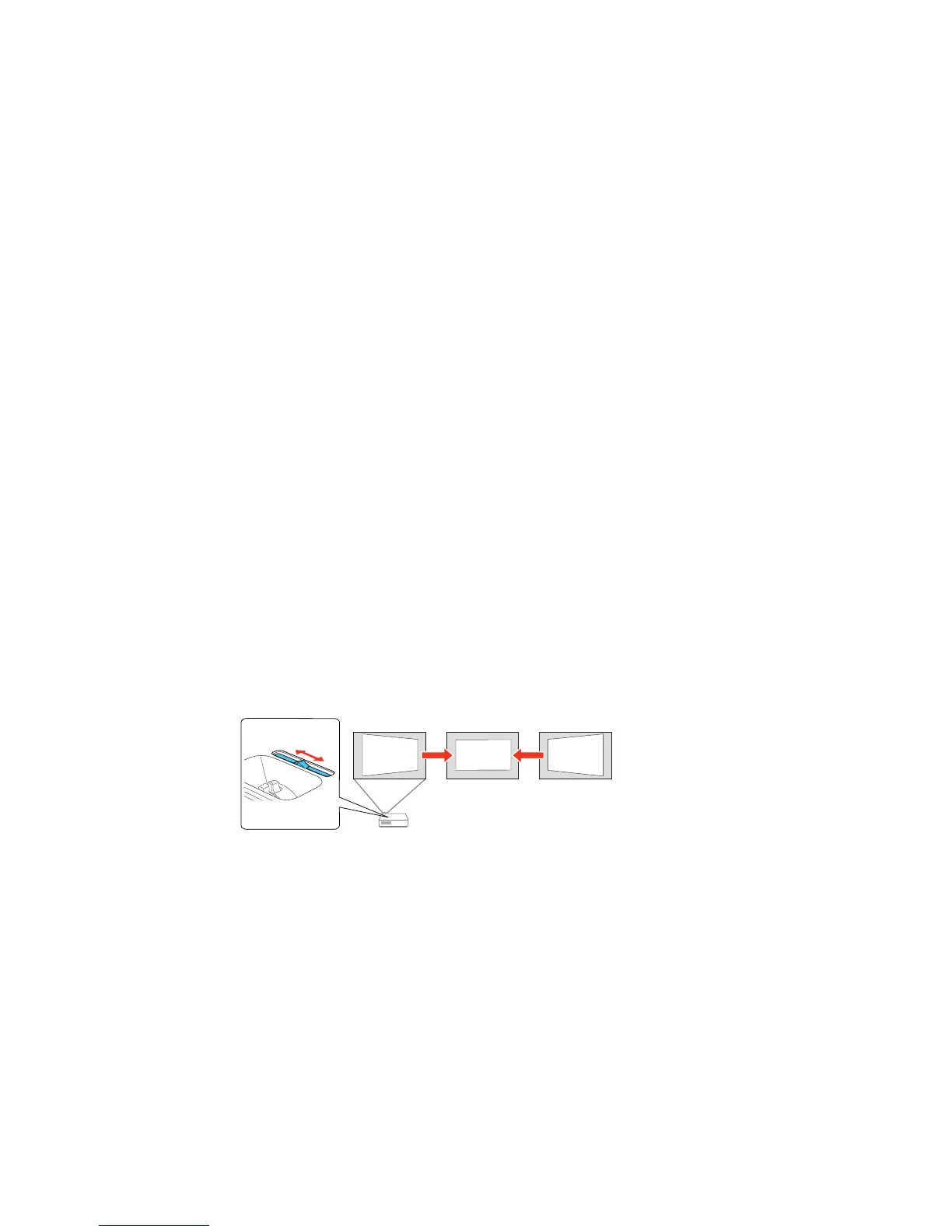

Correcting Image Shape with the Horizontal Keystone Slider
You can use the projector's horizontal keystone slider to correct the shape of an image that is unevenly
rectangular horizontally, such as when the projector is placed to the side of the projection area.
Note: Your product may look different from the illustrations in this guide, but the instructions are the
same.
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
2. Adjust the slider until the image is evenly rectangular.
After correction, your image is slightly smaller.
Parent topic: Image Shape

Epson VS230 Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.75 - 8.89 m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	30 - 350 \
Projection distance (tele)	8.89 - 8.89 m
Projection distance (wide)	0.75 - 0.75 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Focus	Manual
Throw ratio	1.45 - 1.96:1
Focal length range	16.77 - 16.77 mm
Aperture range (F-F)	1.44 - 1.44
Lamp type	UHE
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 640 x 480 (VGA)
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	0
HDCP	-
Noise level	37 dB
Noise level (economic mode)	29 dB
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	283 W
Power consumption (economy mode)	207 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	228.6 mm
Width	294.64 mm
Height	76.2 mm
Weight	2313.32 g
