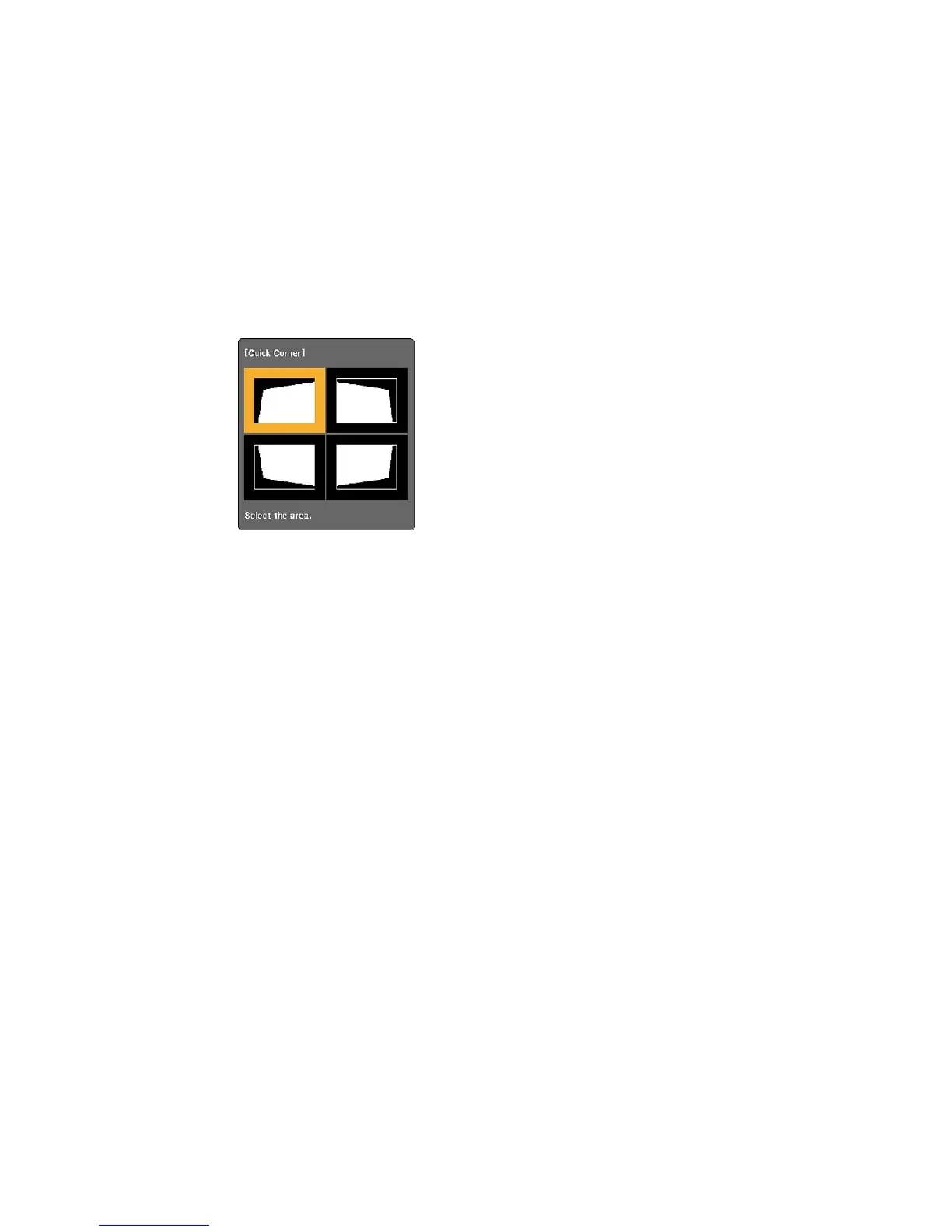

You see the Quick Corner adjustment screen:
6. Use the arrow buttons on the projector or the remote control to select the corner of the image you
want to adjust. Then press Enter.
7. Press the arrow buttons to adjust the image shape as necessary.
8. When you are finished, press Esc.
Parent topic: Image Shape
Related references
Projector Feature Settings - Settings Menu
Resizing the Image
You can resize the image using the projector's zoom ring or the Wide and Tele buttons, depending on
the projector model.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
• If the projector includes a zoom ring, rotate it to enlarge or reduce the image size.

Epson VS230 Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.75 - 8.89 m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	30 - 350 \
Projection distance (tele)	8.89 - 8.89 m
Projection distance (wide)	0.75 - 0.75 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Focus	Manual
Throw ratio	1.45 - 1.96:1
Focal length range	16.77 - 16.77 mm
Aperture range (F-F)	1.44 - 1.44
Lamp type	UHE
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 640 x 480 (VGA)
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	0
HDCP	-
Noise level	37 dB
Noise level (economic mode)	29 dB
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	283 W
Power consumption (economy mode)	207 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	228.6 mm
Width	294.64 mm
Height	76.2 mm
Weight	2313.32 g
