2 INTRODUCTION
The wire feed unit Feed 3004 with control panel U6, MA23, MA24 or MA25 Pulse is
intended for MIG/MAG welding together with 400A, 500A and 600A CAN welding power
sources.
The wire feed units contain four-wheel drive wire feed mechanisms as well as control
electronics.
They can be used together with wire on ESAB's MarathonPac™, or on wire bobbin (standard
Ø 300 mm, accessory Ø 440 mm).
The wire feed unit can be installed either on the power source trolley, suspended above the
workplace, on a counter balance device or on the floor with or without wheel set.
ESAB's accessories for the product can be found in chapter "ACCESSORIES" of this
manual.
2.1 Equipment
The wire feed unit is supplied with:
• instruction manual for the wire feed unit
• instruction manual in English for the control panel
Instruction manuals in other languages can be downloaded from the Internet:
www.esab.com
• decal with recommended wear parts.
2.2 Control panel

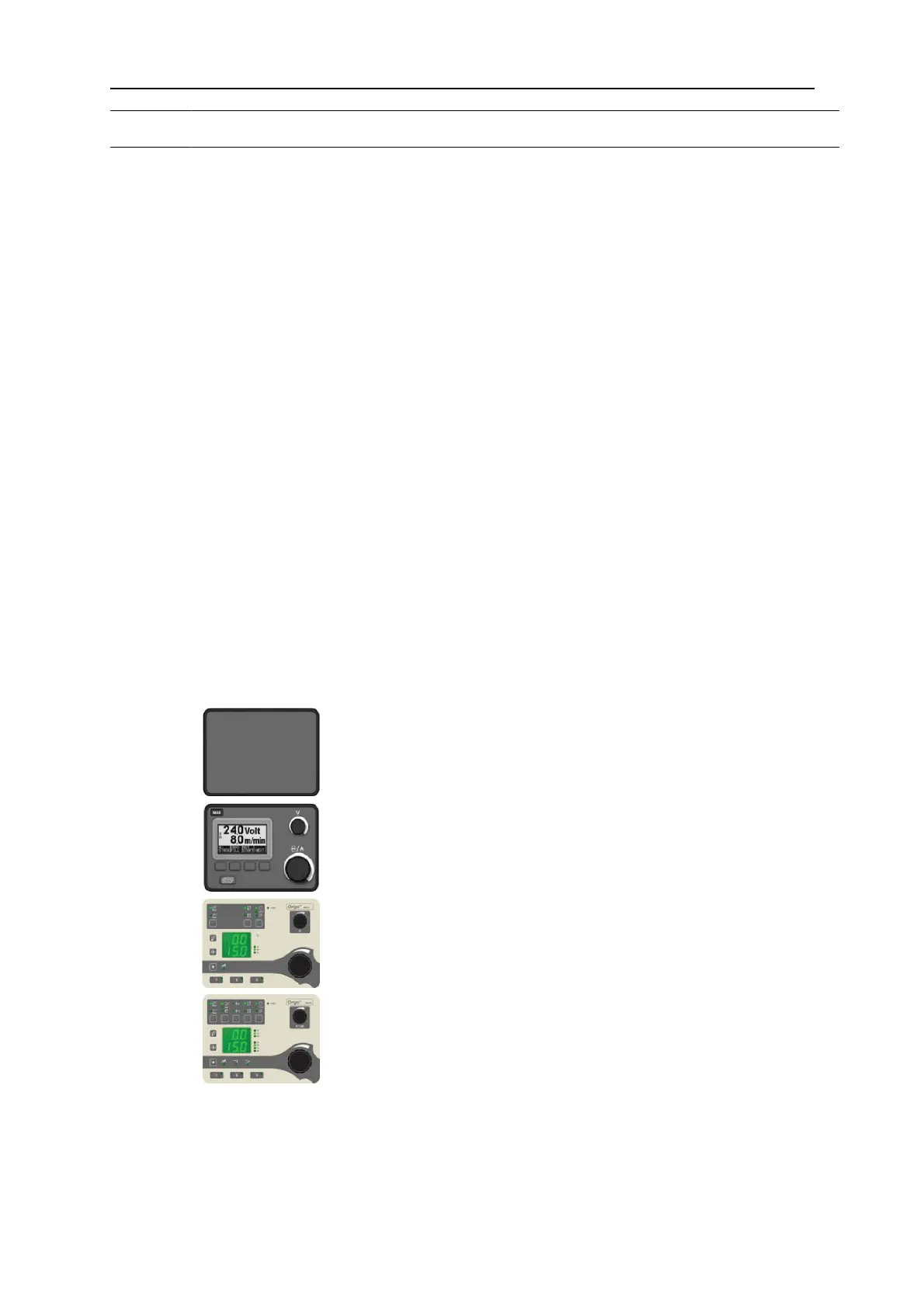

The wire feed unit is supplied with one of the following control panels:
Empty panel for use with double wire feed units or
with use of control box U8
2
.
U6
Knobs for setting the voltage and the wire feed speed
/ current. Other parameters are controlled by
pushbuttons, with text in the display panel.
MA23
Knobs for setting the voltage and the wire feed speed
/ current. Other settings with push buttons.
MA24
Knobs for setting the voltage / QSet™ and the wire
feed speed / current. Other settings with push
buttons.
