5.2 Location
Position the welding power source such that its cooling air inlets and outlets are not
obstructed.
5.3 Mains supply
Note!
Mains supply requirements
High power equipment may, due to the primary current drawn from the mains supply, influence the
power quality of the grid. Therefore connection restrictions or requirements regarding the
maximum permissible mains impedance or the required minimum supply capacity at the interface
point to the public grid may apply for some types of equipment (see technical data). In this case it
is the responsibility of the installer or user of the equipment to ensure, by consultation with the
distrubution network operator if necessary, that the equipment may be connected.
Make sure that the welding power source is connected to the correct supply voltage
and that it is protected by the correct fuse rating. A protective earth connection must
be made in accordance with regulations.

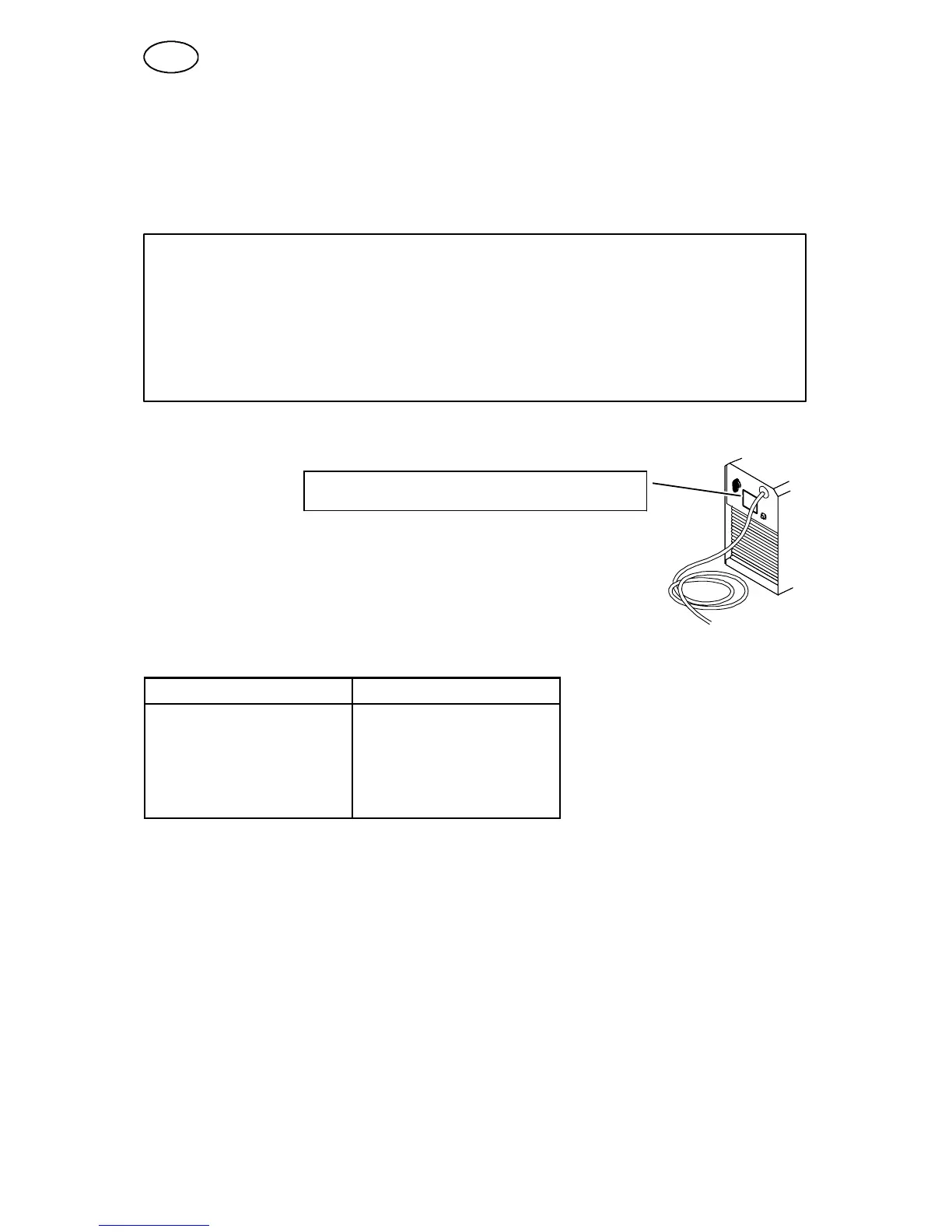

Rating plate with supply connection data
NOTE! The welding power source is designed for connection to a 400 volt
system with four conductors.
If the power source is to be used in countries with a higher or lower supply
voltage, the power source must be connected via a safety transformer.
Recommend ed fuse sizes and minimum cab le area
Mig 3001i
Mains voltage 400 V 3μ 50 Hz
Mains cable area mm
2
4G2.5 mm
2
Phase current I
eff
10 A
Fuse
anti--surge
type C MCB
16 A
16 A
NOTE! The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. Use the welding power source in accordance with the relevant national regulations.
GB
