- 12 -
ba47e

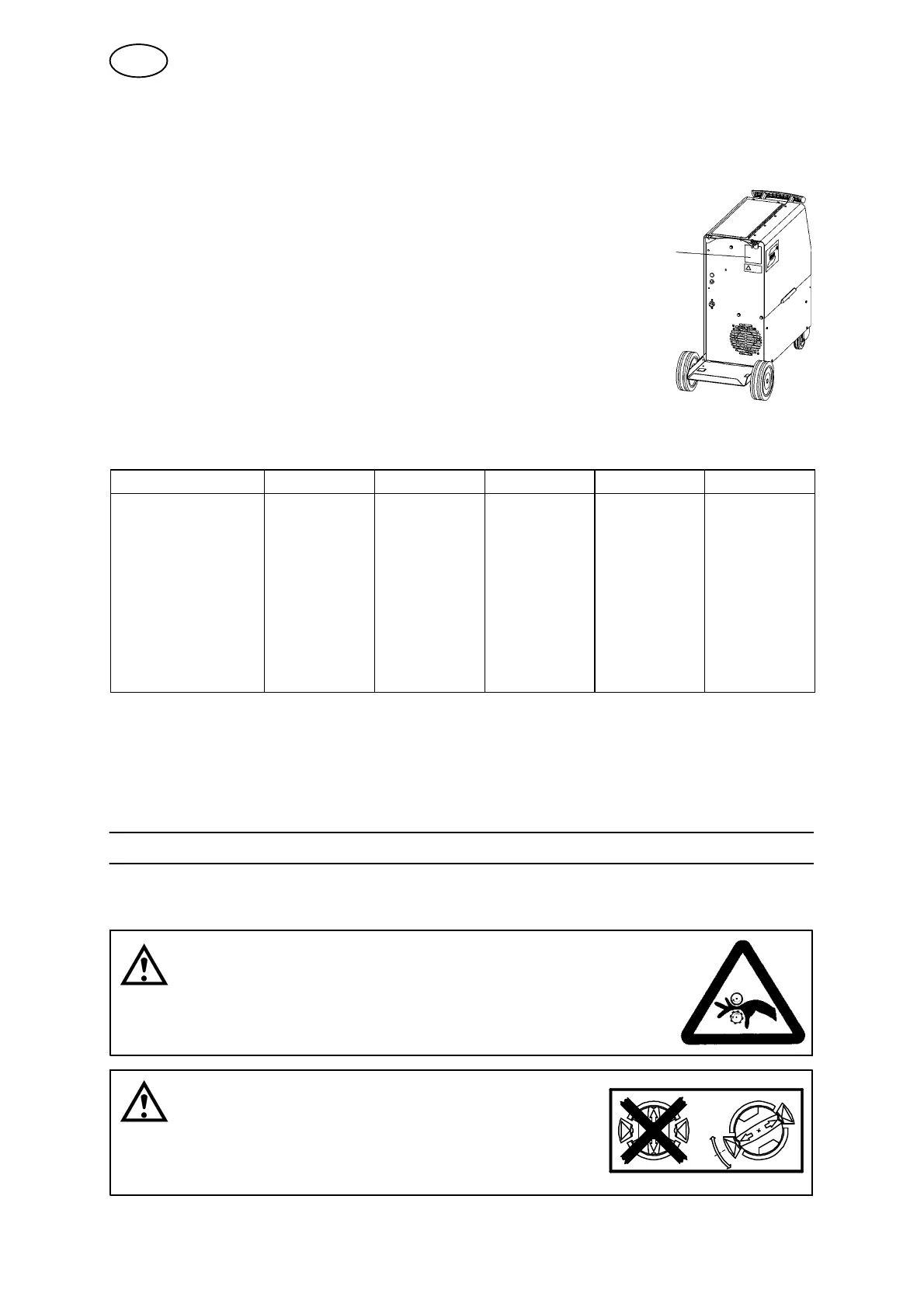

4.4 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that it is protected by
the correct fuse size. A protective earth connection must be made, in accordance with regulations.
Rating plate with supply connection data
4.5 Recommended fuse sizes and minimum cable areas
Mig C141 Mig C151 Mag C171 Mag C201 Mag C251
Voltage V 220-230V,
1∼ 50/60Hz
220-230V,
1∼ 50/60Hz
220-230V,
1∼ 50/60Hz
220-230V,
1∼ 50/60Hz
220-230V,
1∼ 50/60Hz
Current A
at 100% duty cycle
5.1 8.3 12.0 13.0 16.6
at 60% duty cycle 7.0 12.0 15.7 18.2 23.4
at % duty cycle 11.5 at 25% 13.0 at 50% 27.8 at 25% 36.2 at 23% 38.7 at 30%
at 20% duty cycle 13.8 20.4 29.7 39.0 47.5
Cable area mm
2
3 x 1.5 3 x 1.5 3 x 1.5 3 x 2.5 3 x 4.0
Fuse slow A 10 10 (16*) 16 20 35
NB: The mains cable areas and fuse sizes shown above are in accordance with Swedish regulations.
They may not be applicable in other countries: make sure that the cable area and fuse sizes comply
with the relevant national regulations.
*- In the supply networks of high level of short circuit power (low impedance of network) it is
recommended to use 16A fuse.
5 OPERATION
General safety regulations for handling the equipment can be found on
page 4. Read through before you start using the equipment!
WARNING
Rotating parts can cause injury, take great care.
WARNING
To prevent the reel from sliding off the hub: Lock the
reel in place by turning the red knob as shown on the
warning label attached next to the hub.
GB
