- 13 -
ba47e
WARNING
Secure the equipment - particularly if the
ground is uneven or sloping.

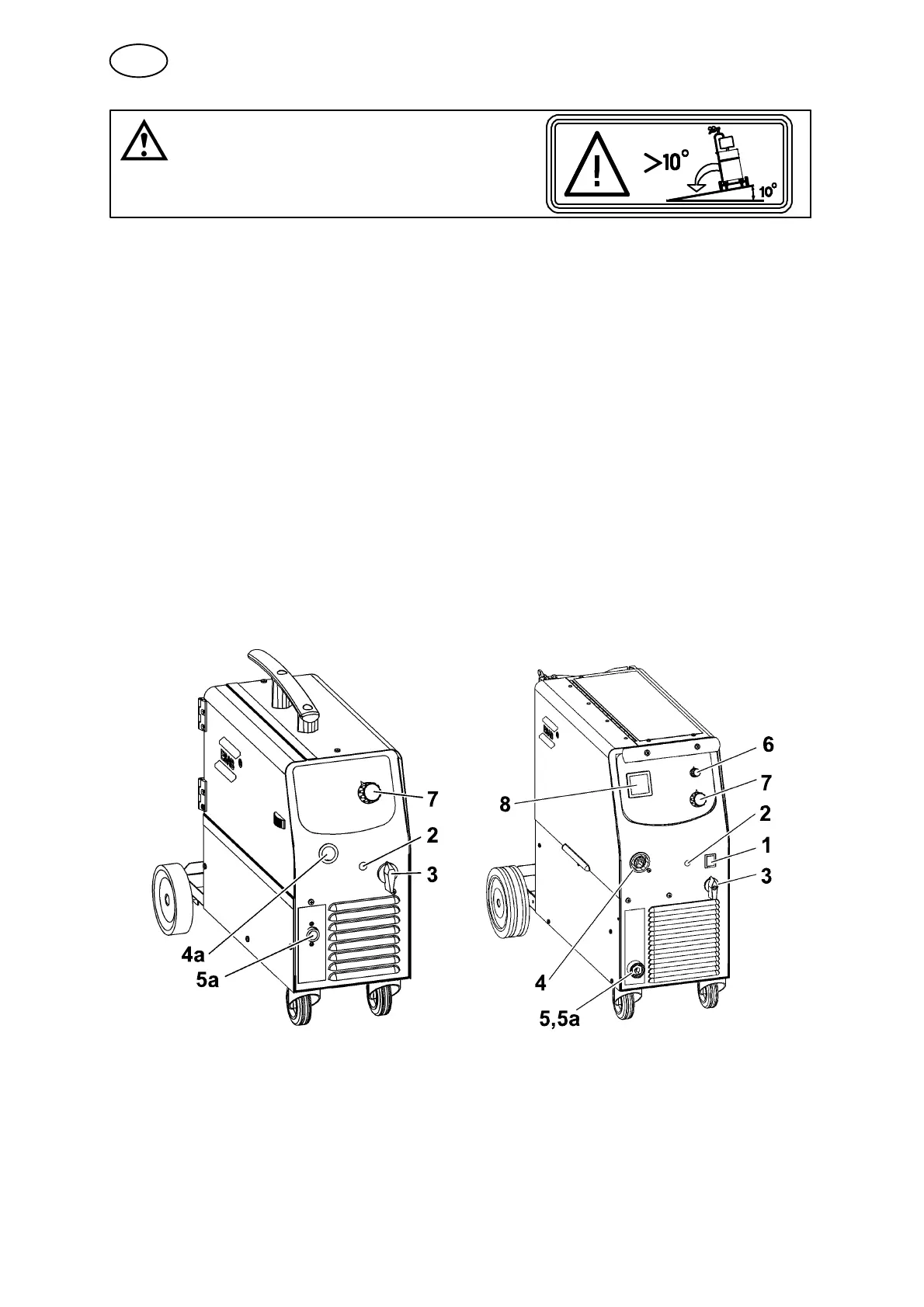

5.1 Connection and control devices
1 Mains supply switch with indicator lamp,
only in C171/C201/C251
5a Return cable with clamp, fixed,
only in C140/C150/C170/C200
2 Orange indicator lamp, overheating 6 Knob for spot welding - ON/OFF and time
setting, only in C171/C201/C251
3 Welding voltage switch
C141: OFF + 4 steps (mains ON/OFF)
C151: OFF + 7 steps (mains ON/OFF)
C171: 8 steps
C201: 12 steps
C251: 12 steps
7 Knob for wire speed setting
4 EURO - connector for welding gun,
only in C171/C201/C251
8 Digital instrument - V / A, only in
C171/C201/C251 (option,see page 26)
4a Welding gun, fixed,
only in C141/C151
9 Knob for burn-back time setting.
In C251 located in wire feeder compartment.
In C171/C201 located on control board.
5 Connection for return cable (-),only in
C251
GB
