Care and Cleaning
WARNING: Ensure the pump
is disconnected from the
power source bef
ore attempting to service or remove any
component.
WARNING: Do not remov
e the impeller. Removal of the
impell
er requires special tools and can only be performed
by an auth
orized service center.
To clear a pump that is clog
ged with debris:
□ Unplug the pump to disconnect the electrical power.

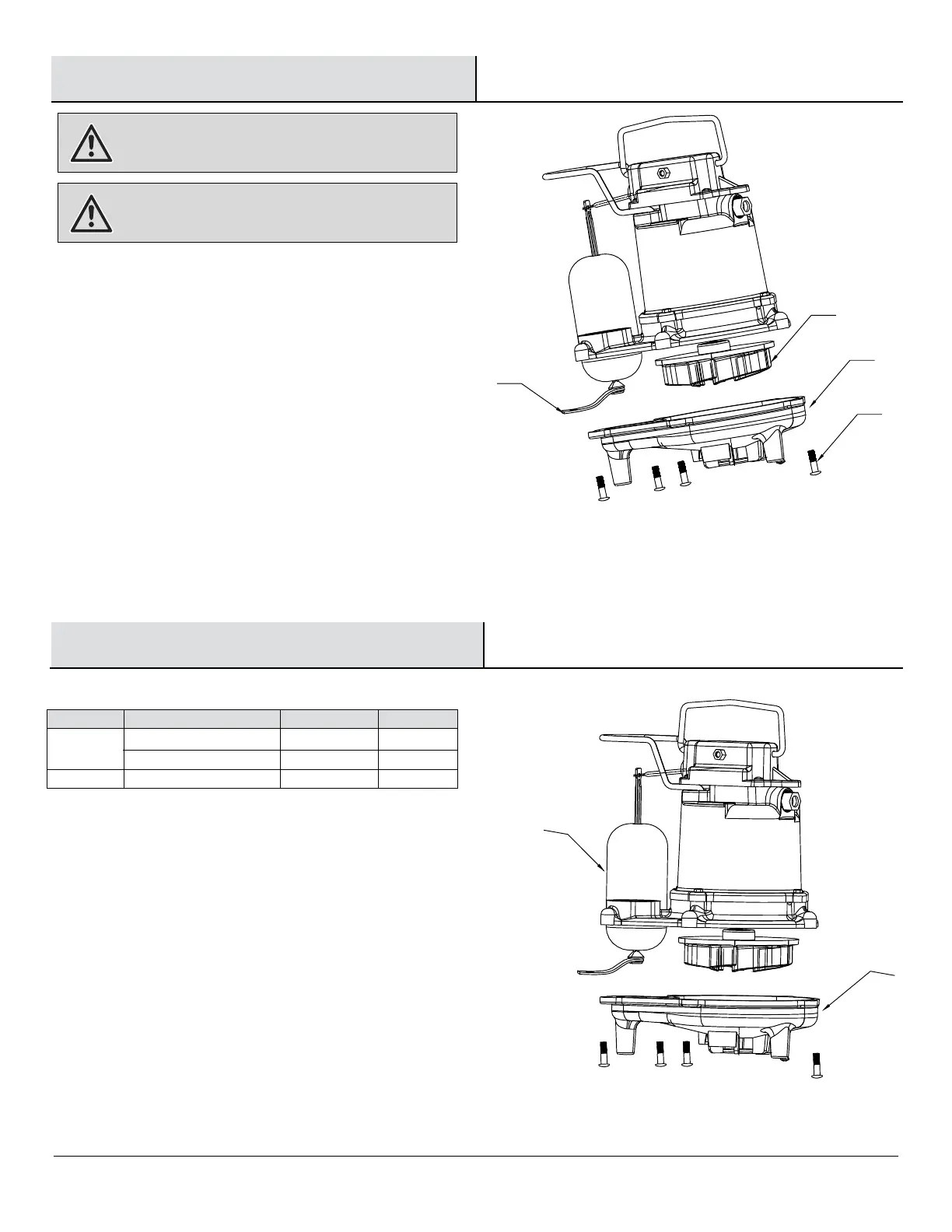

□ Unscrew the six screws (1) on the pump body and take
the rubber belt (4) down from the volute (2).
□ Remove the volute (2).
□ Remove debris from around the impeller (3).
□ Reassemble the pump.
ADDITION
AL MAINTENANCE GUIDELINES
□ This unit is per
manently lubricated. Oiling is not required.
Do not, in any case, open the sealed portion of the unit or
remove the housing screws.
□ Periodic cleaning of the pump parts will prolong the LIFE
and EFFICIENCY of the pump. Refer to the assembly and
disassembly of the pumping head.
□ Ensure the power cord is in good condition and contains
no nicks or cuts.
1
2
3
4
Service Parts
1
2
Number
Descr
iption
Part Nu
mber
Volute-HDS30
Float w/the rubber belt
Quantity
1
2
HDS3001
HDS3002
HDS5001
Volute-HDS50
1
1
1
To Next Page
