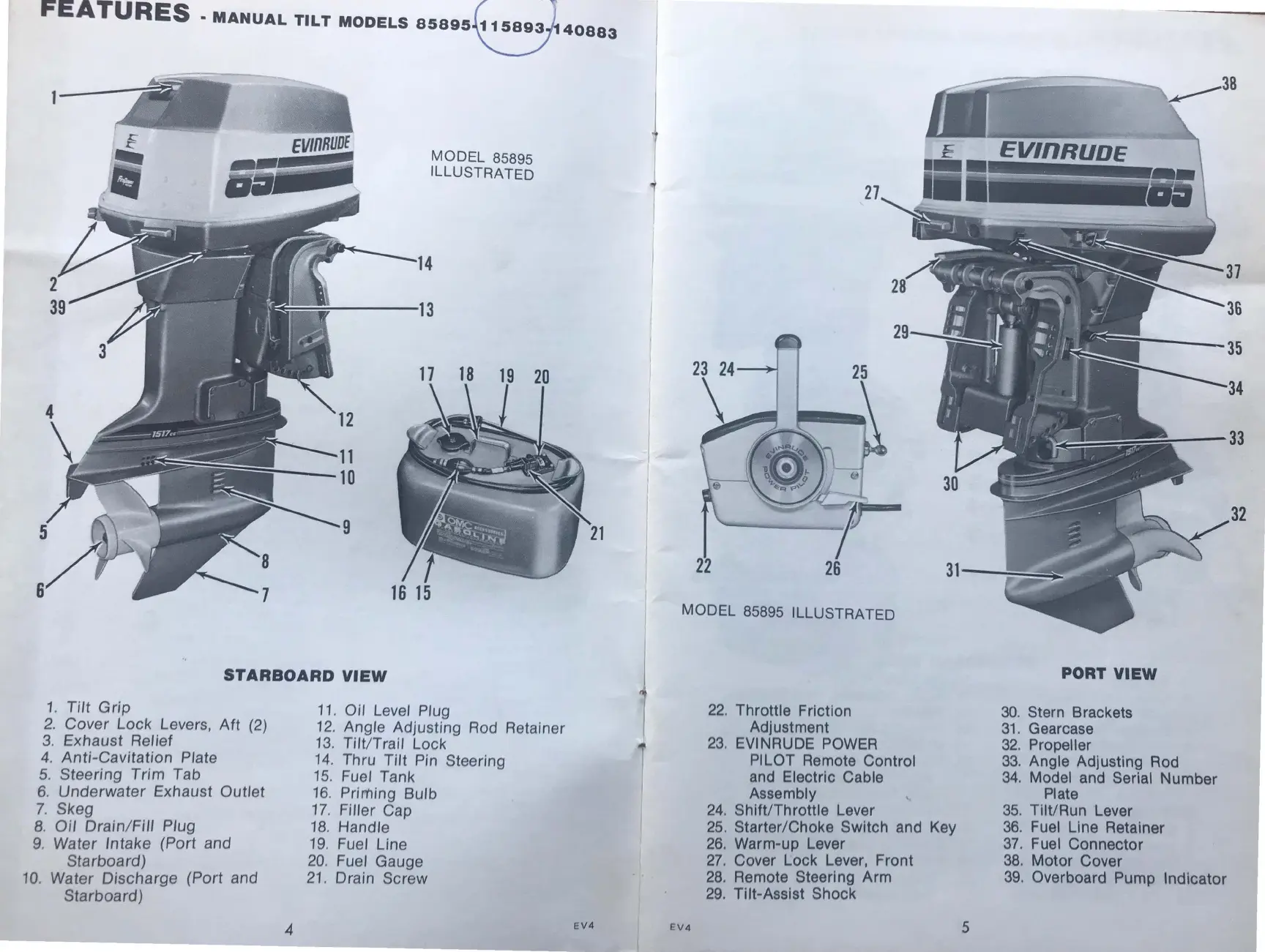

FEATURES . MANUAL TILT MODELS 85895 8 40883
1
MODEL 85895
ILLUSTRATED
4
16 15
STARBOARD VIEW
1. Tilt Grip
2. Cover Lock Levers, Aft (2)
3. Exhaust Relief
4. Anti-Cavitation Plate
5.
Steering Trim Tab
6. Underwater Exhaust
Outlet
7. Skeg
8. Oil Drain/Fill Plug
9. Water Intake (Port and
Starboard)
10 . Water Discharge (Port and
Starboard)
4
11. Oil Level Plug
12 . Angle Adjusting Rod Retainer
13. Ti/t/Trai/ Lock
14. Thru Tift Pin Steering
15. Fuel Tank
16 . Priming Bulb
17 . Filler Cap
18 . Handle
19 . Fuel Line
20 . Fuel Gauge
21 . Drain Screw
EV4
27
MODEL 85895 ILLUSTRATED
EV4
22. Throttle Friction
Adjustment
23 . EVINRUDE POWER
PI LOT Remote Control
and Electric Cable
Assembly
24 . Shift/Throttle Lever
25. Starter/Choke Switch and Key
26 . Warm-up Lever
27. Cover Lock Lever, Front
28. Remote Steering Arm
29. Tilt-Assist Shock
PORT VIEW
30. Stern Brackets
31. Gearcase
32. Propeller
33. Angle Adjusting Rod
34. Model and Serial Number
Plate
35. Tilt/Run Lever
36. Fuel Line Retainer
37. Fuel Connector
38. Motor Cover
39. Overboard Pump Indicator
5
