68
Product Information
Boat-Mounted Fuel Filters
Boat-mounted fuel filters and water-separat-
ing fuel filter assemblies must meet the follow-
ing requirements:
• Fuel flow – 0.4 in. Hg maximum pressure
drop at 20 gph (76 l/hr) flow.
• Filter area – 150 in.
2
(1290 cm
2
) of filter
area.
The filter must be mounted to a rigid surface
above the full level of the fuel tank and acces-
sible for servicing.
Fuel Filter Assembly, P/N 174176, meets all
requirements for a water-separating fuel filter.
If equipped, replace the boat-mounted fuel fil-
ter annually. See your service center for re-
placement Fuel Filter (25 micron),
P/N 502905.
Battery - Electric Start Models
Requirements
• 12-volt, heavy-duty, designated for "marine"
use;
• Vented/refillable or maintenance-free; and
• Rated according to the minimum require-
ments in Specifications on page 72.
Deep-cycle batteries are suitable IF they
meet or exceed the minimum CCA require-
ments.
Ask your Dealer about your outboard’s re-
quirements before installing longer battery ca-
bles or a battery switch.
Installation
Marine Battery Posts — install each main ca-
ble on the post with a star washer below it.
WARNING
Battery electrolyte is acidic — handle
with care. If electrolyte contacts any part
of the body, immediately flush with water
and seek medical attention.
Do not use a booster battery and jumper
cables to start the outboard. Gasoline
fumes can cause explosion and fire,
resulting in property damage, personal
injury or death.
WARNING
Keep the battery connections clean,
tight, and insulated to prevent their
shorting or arcing and causing an explo-
sion. If the battery mounting system
does not cover the connections, install
covers. Check often to see that connec-
tions stay clean and tight.
WARNING
Read and understand the safety informa-
tion supplied with your battery BEFORE
you begin installation.
NOTICE
Make sure all components are clean and
free of corrosion. Connect the RED (+)
cable to the positive (+) battery post first.
Connect the BLACK (–) cable to the neg-
ative (–) battery post last.
NOTICE
DO NOT use wing nuts on battery con-
nections even if they came with the bat-
tery. Wing nuts can loosen and cause
errant warning signals or electrical sys-
tem damage.

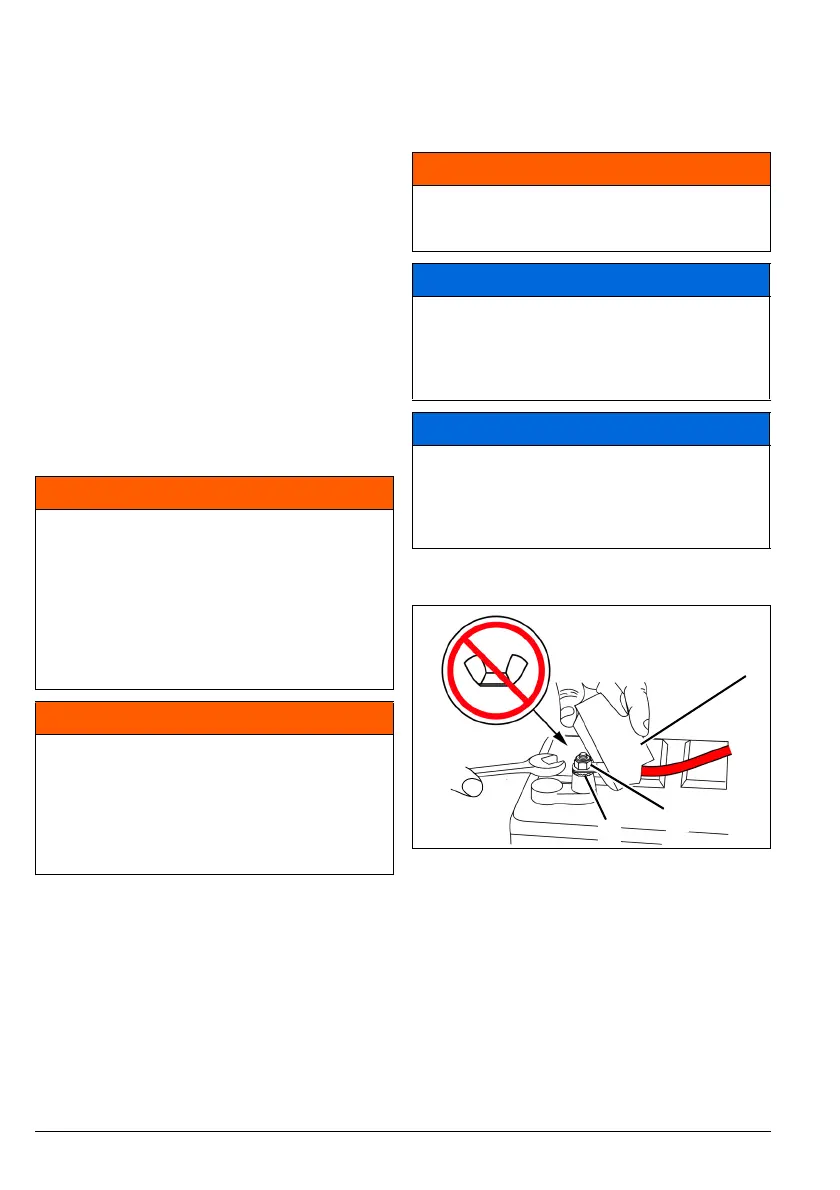

1. Main cable
2. Starwasher
3. Terminal insulator
009166
