12
Using Your E-TEC Outboard

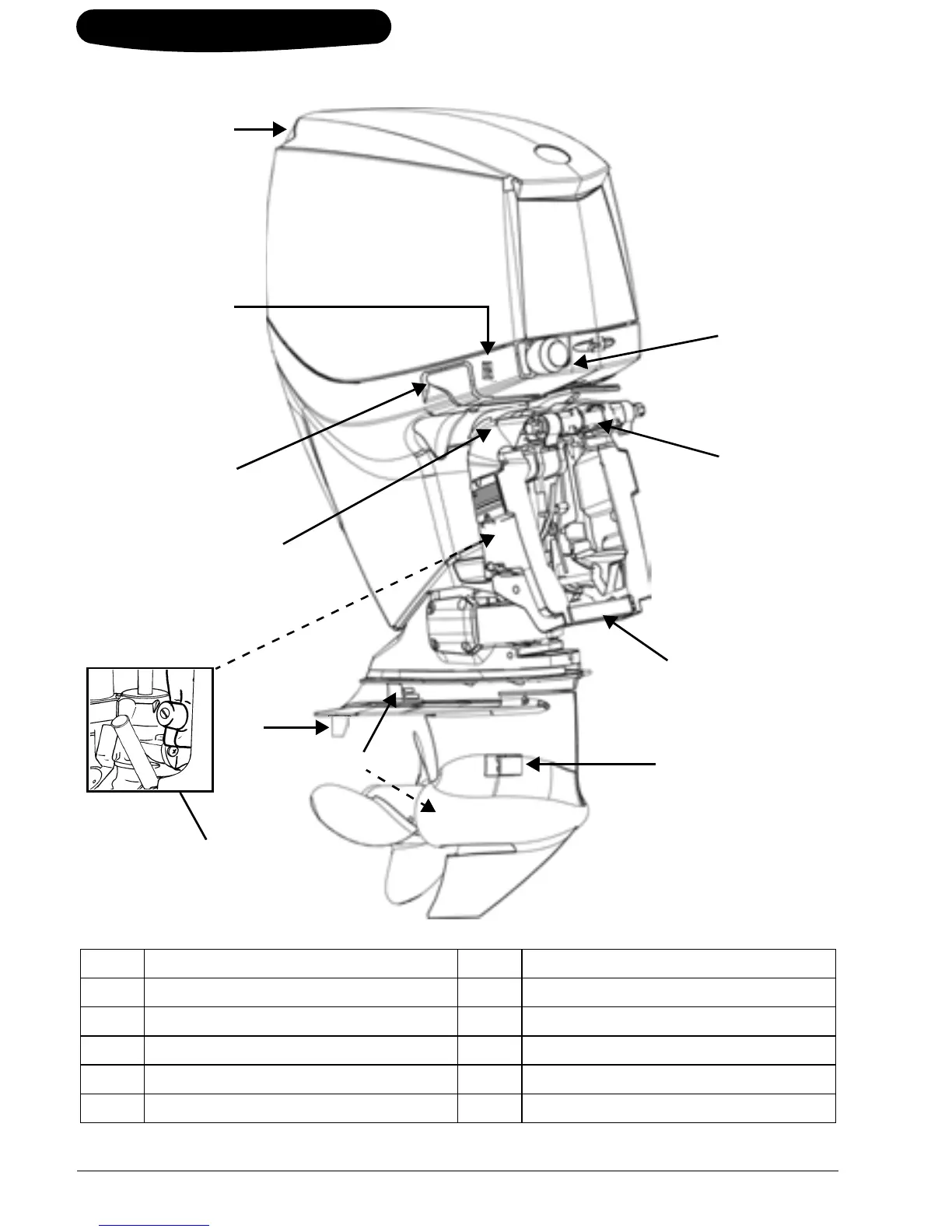

COMPONENT IDENTIFICATION
Item Description Item Description
1 Air Inlet 6 Fuel and Oil Hoses
2 Trailering Tilt Switch 7 Tilt Limit Cam
3 Engine Cover Latch 8 Power Tilt and Trim Reservoir
4 Tilt Support Lever 9 Anti-Corrosion Anodes
5 Trim Tab 10 Water Intake Screens
7
10
9
3
6
2
1
9
4
5
8
