XT3 Series DISK RECORDER - Version 10.05 - Hardware Technical Reference Manual
Issue
10.05.D
EVS Broadcast Equipment SA – July 2011
3
Dimensions

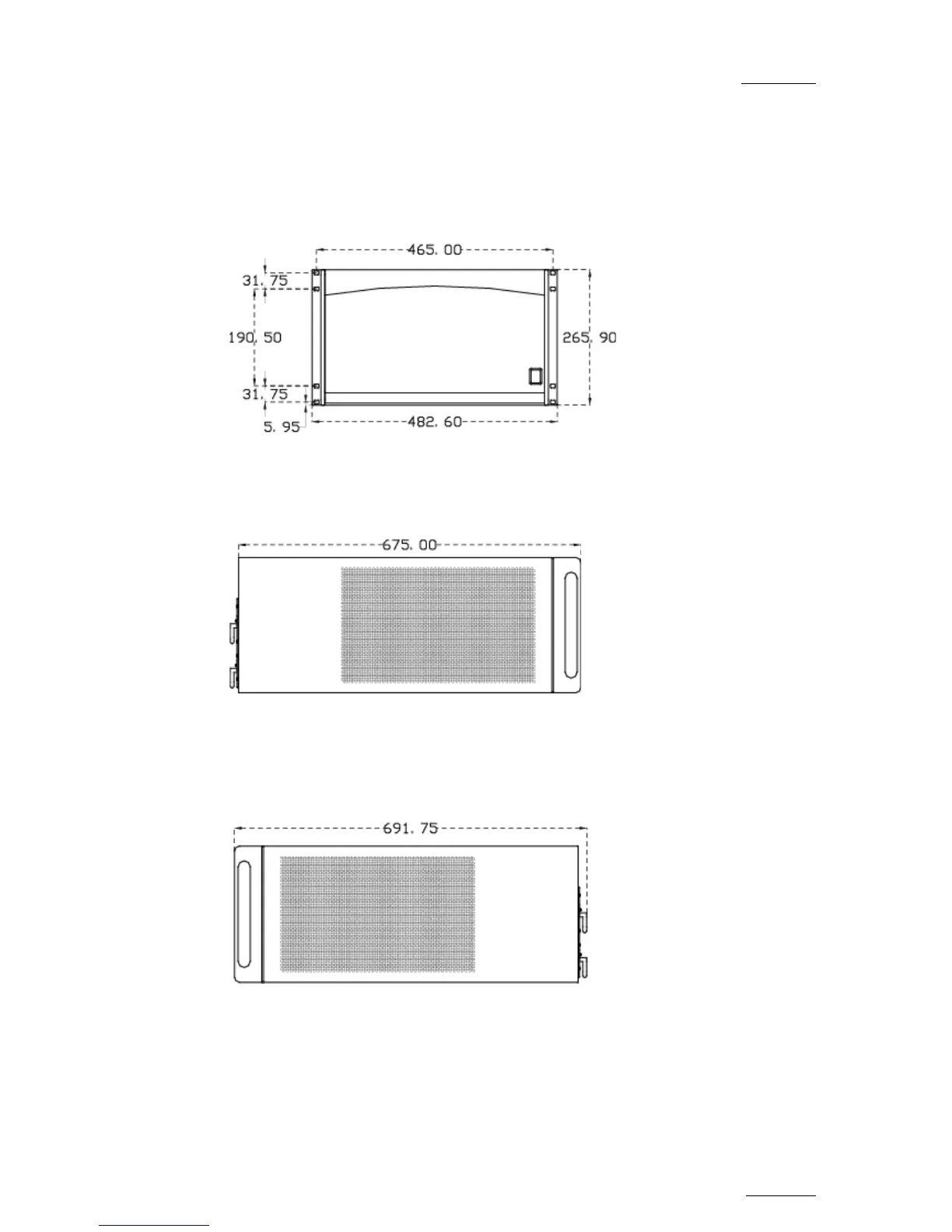

The following drawings provide the various dimensions, in mm, of the XT3 server
with a 6U chassis.
Figure 1: Front view
Figure 2: Left view
Figure 3: Right view
