7. ROTATION DIRECTION CHECK
1) Release the operator, take it manually to mid-travel and re-
lock it.
2) Power up the system and then press the RESET push-button.
3) Give an Open command to the operator, check if the gate
moves in opening direction and then press the RESET push-
button to stop the leaf moving.
4) If rotation direction is incorrect, change over wiring of cables
T1 and T3 of the electric motor.
6. LIMIT SENSORS CONNECTION CHECK
1) Manually take the gate toward opening position, and
check if, with the leaf open, the FCC LED is lighted and the
FCA LED is off.
2) Manually take the gate toward closing position, and check
if, with the leaf closed, the FCA LED is lighted and the FCC
LED is off.
2) If the LEDs are inverted, changeover the cables conected to
trminals 12 and 13.

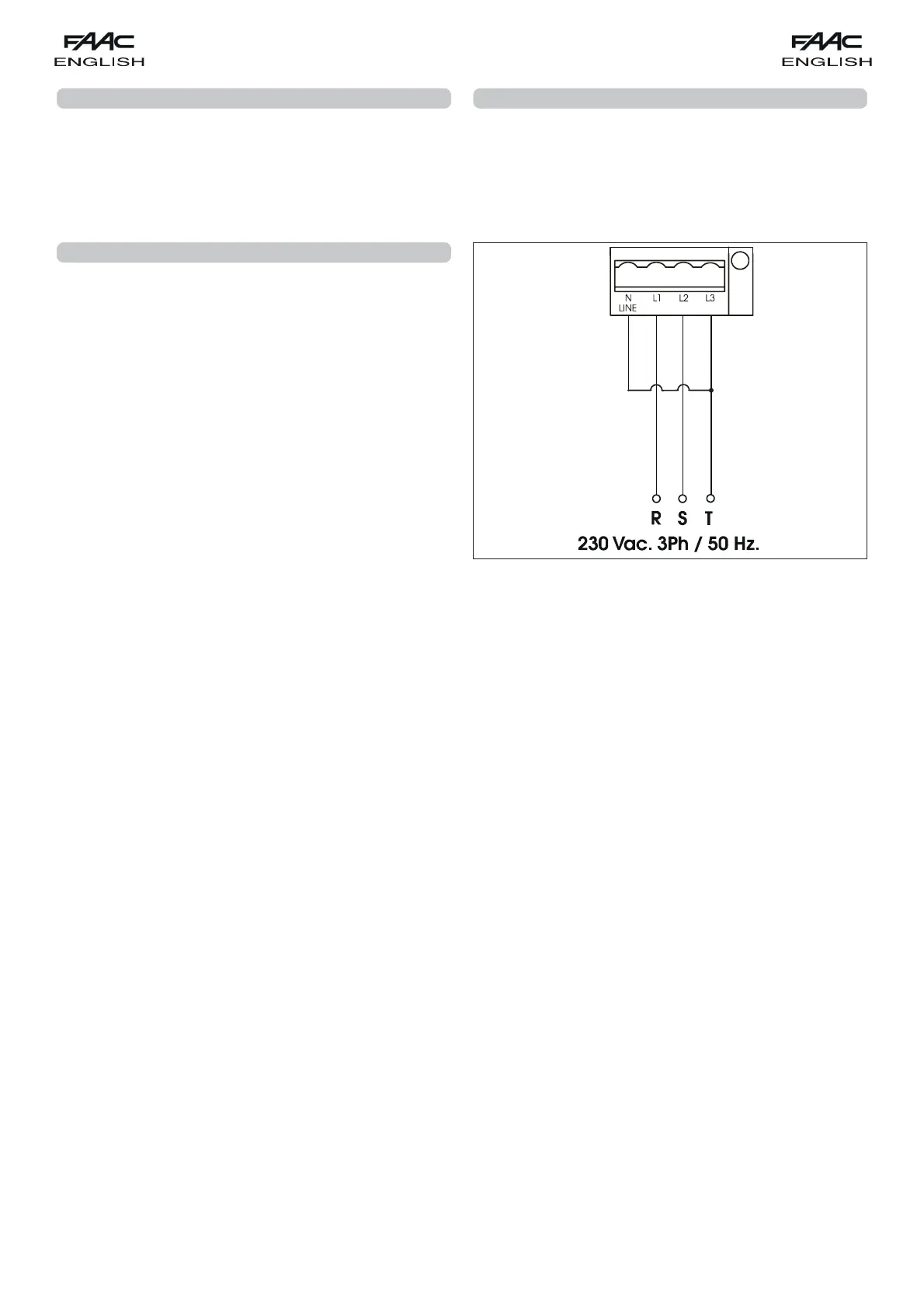

Fig. 8
8. ELECTRICAL CONNECTIONS WITH 230V 3ph
To connect the 844 T appliance to a 3-phase 230 V mains, ob-
serve the diagram in Fig. 8.
N.B.: The electric motor of the gearmotor must be 230V 3-phase.
